Digital Watchdog DWC-VA583WTIR Star-Light Plus 5MP Universal HDoC Vandal Ball Camera, 2.7-13.5mm Varifocal Lens, White

SKU: DWC-VA583WTIR Digital Watchdog
Digital Watchdog Star-Light Plus DWC-VA583WTIR 5 Megapixel Surveillance Camera

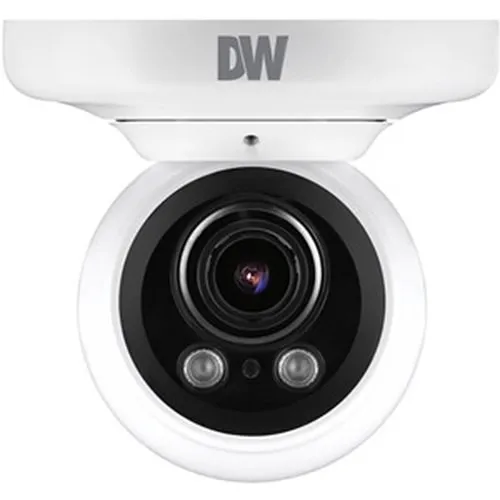

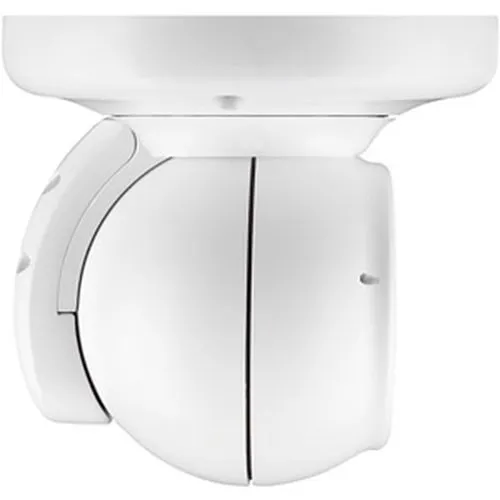

Product images for Digital Watchdog DWC-VA583WTIR Star-Light Plus 5MP Universal HDoC Vandal Ball Camera, 2.7-13.5mm Varifocal Lens, White. 5 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Consistent color in near‑dark scenes: Star‑Light Plus tech preserves color detail for better identification and 24/7 monitoring.
  • Flexible coverage with motorized 2.7–13.5mm varifocal lens and auto‑focus, making framing and zoom adjustments quick during setup.
  • Rugged, weatherproof design (IP67, IK10) protects critical assets outdoors and reduces maintenance downtime.
  • Universal HD over Coax compatibility lets you upgrade to 5MP performance using existing coax infrastructure for lower install costs.
  • Integrated 80' Smart IR and Smart DNR improve night visibility and reduce false alerts for reliable surveillance footage.

Quick Specifications

Product Model
DWC-VA583WTIR
Brand Name
Digital Watchdog
Product Line
Star-Light Plus
Product Name
5MP Universal HD Over Coax Vandal Ball Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Built for demanding security deployments, the Digital Watchdog DWC-VA583WTIR Star‑Light Plus turret camera delivers clear color imaging in near‑dark conditions so you can monitor and identify activity around the clock. This 5MP surveillance camera combines Star‑Light Plus low‑light performance with a motorized 2.7–13.5mm varifocal p‑iris lens and auto‑focus to give installers and operators fast, precise field-of-view control without repeated on-site adjustments. Engineered for tough environments, the vandal‑resistant aluminum housing (IK10) and IP67 weather rating keep your system operating in rain, dust and impact-prone locations.

Designed to integrate into existing coax-based systems, the DWC-VA583WTIR supports HD‑Analog, HD‑TVI and HD‑CVI signals and can be controlled via UTC over the same cable, simplifying upgrades and reducing cabling costs. Night monitoring is enhanced with 80' Smart IR and Smart DNR to minimize noise and improve motion detection accuracy. Ideal for retail, parking lots, multi‑tenant buildings and campus security, this Digital Watchdog turret camera balances high-resolution imaging, rugged reliability and easy deployment. Add the DWC-VA583WTIR to your next surveillance project or contact our sales team to configure for your site.

Features

  • Consistent color in near‑dark scenes: Star‑Light Plus tech preserves color detail for better identification and 24/7 monitoring.
  • Flexible coverage with motorized 2.7–13.5mm varifocal lens and auto‑focus, making framing and zoom adjustments quick during setup.
  • Rugged, weatherproof design (IP67, IK10) protects critical assets outdoors and reduces maintenance downtime.
  • Universal HD over Coax compatibility lets you upgrade to 5MP performance using existing coax infrastructure for lower install costs.
  • Integrated 80' Smart IR and Smart DNR improve night visibility and reduce false alerts for reliable surveillance footage.
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line Star-Light Plus
Product Name 5MP Universal HD Over Coax Vandal Ball Camera
Product Type Surveillance Camera
Product Model DWC-VA583WTIR
Product Series VA
Manufacturer Part Number DWC-VA583WTIR
Technical Information
Material Aluminum Die-cast
Lens Type Varifocal, Zoom
Night Vision Yes
Optical Zoom 5x
Programmable Yes
Field of View Horizontal, Vertical
Video Formats H.264, MJPEG
Output Voltage 24V AC
Motion Detection Yes
Night Vision Type Infrared
Maximum Frame Rate 30fps
American Wire Gauge 18AWG
Minimum Focal Length 2.7mm
Illumination Distance 80'
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 80 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Display & Graphics
Image Sensor Size 1/2.8"
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 10-90% (Non-condensing)
Operating Temperature (T-T) -4-122°F
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -4°F (-20°C)
Exposure
Minimum Illumination 0.0 lux (B/W), 0.08 lux (color)
Longest Shutter Speed 1/30 Second
Shortest Shutter Speed 1/30000 Second
Lens
Focus Modes Auto
Focal Length 2.7-13.5mm
Lens Included Yes
Maximum Focal Length 13.5mm
Others
Model Number Replaces DWC-T8563TIR
Physical Characteristics
Color White
Height 4.8"
Weight 1.58lb
Durability Dust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Ball
Power Description
Frequency 50 Hz, 60 Hz
Input Voltage 24V AC
Product Information
Diameter 4.9"
Mount Type Ceiling Mount, Junction Box Mount, Wall Mount
TBD
Amperage 638mA
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in OSD Function, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking, Wide Dynamic Range
Certifications CE, FCC, NDAA
Indoor/Outdoor Outdoor
Country of Origin VN
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
