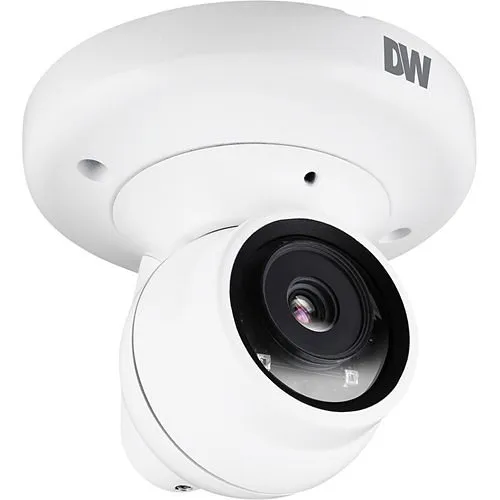

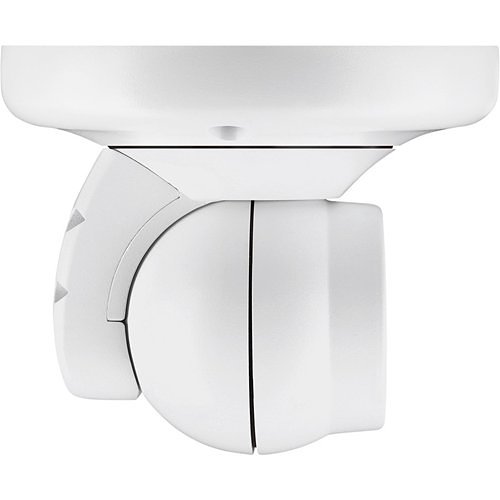

Digital Watchdog DWC-VA853WTIR Star-Light Plus 4K Universal HDoC IR Vandal Ball Camera, 2.8mm Fixed Lens, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Capture color detail in near-total darkness with Star-Light Plus for improved identification and incident review
- Drop-in upgrade for existing coax systems (HD-TVI/HD-CVI/HD-Analog) to deliver 4K imaging without rewiring
- Vandal- and weather-resistant design (IK10, IP67) protects critical assets in outdoor and high-traffic environments
- Built-in 70' Smart IR and 2.8mm fixed lens provide consistent, wide-area coverage for perimeter and entry monitoring
- OSD control via coax (UTC) and NDAA compliance simplify integration, procurement, and long-term deployment
Quick Specifications
- Brand Name
- Digital Watchdog
- Manufacturer
- Digital Watchdog
- Product Line
- Star-Light Plus
- Product Name
- 4K Universal HD over Coax Vandal Ball Camera
Frequently Bought Together
Digital Watchdog DWC-VA853WTIR Star-Light Plus 4K Universal HDoC IR Vandal Ball Camera, 2.8mm Fixed Lens, White
$360.25
12 items selected
Total: $2,358.23
Product Information Tabs
Overview
Designed for dependable, high-resolution security monitoring, the Digital Watchdog DWC-VA853WTIR Star-Light Plus 4K Universal HDoC IR Vandal Ball Camera delivers clear, actionable video where it matters most. Engineered as a turret-style surveillance camera, it produces color images in near-total darkness using Star-Light Plus technology and supports Universal HD over Coax (HD-TVI/HD-CVI/HD-Analog), letting you upgrade to 4K performance without replacing existing cabling. The 2.8mm fixed lens and 70' Smart IR ensure broad coverage and reliable night visibility for parking lots, building entrances, and perimeter surveillance. Robust construction with IK10 impact resistance and an IP67 rating keeps the camera operational in harsh outdoor conditions, while UTC OSD control over coax simplifies setup and maintenance. NDAA compliance and a 5-year limited warranty make this a solid choice for commercial installations that require long-term reliability and procurement compliance. Ideal for security integrators and IT teams looking to enhance CCTV performance, this Digital Watchdog turret camera is ready to deploy for retail, industrial, and municipal monitoring—contact sales to upgrade your system.
Features
- Capture color detail in near-total darkness with Star-Light Plus for improved identification and incident review
- Drop-in upgrade for existing coax systems (HD-TVI/HD-CVI/HD-Analog) to deliver 4K imaging without rewiring
- Vandal- and weather-resistant design (IK10, IP67) protects critical assets in outdoor and high-traffic environments
- Built-in 70' Smart IR and 2.8mm fixed lens provide consistent, wide-area coverage for perimeter and entry monitoring
- OSD control via coax (UTC) and NDAA compliance simplify integration, procurement, and long-term deployment
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | Star-Light Plus |
| Product Name | 4K Universal HD over Coax Vandal Ball Camera |
| Product Type | Surveillance Camera |
| Product Model | DWC-VA853WTIR |
| Product Series | VA |
| Manufacturer Part Number | DWC-VA853WTIR |
| Technical Information | |
| Material | Aluminum Die-cast |
| Lens Type | Fixed |
| Night Vision | Yes |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, MJPEG |
| Motion Detection | Yes |
| Maximum Frame Rate | 30fps |
| American Wire Gauge | 18AWG |
| Minimum Focal Length | 2.8mm |
| Illumination Distance | 70' |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 70 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/1.8" |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Exposure | |
| Minimum Illumination | 0.0 lux (B/W), 0.10 lux (color) |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/30000 Second |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.8mm |
| Physical Characteristics | |
| Color | White |
| Weight | 1.16lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant |
| Form Factor | Ball |
| Power Description | |
| Frequency | 50 Hz, 60 Hz |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Bracket Mount, Ceiling Mount, Junction Box Mount, Wall Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS, HDCVI, HD-TVI |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Joystick, Built-in OSD Function, Day/Night, Defog, Motion Detection, Wide Dynamic Range |
| Certifications | CE, FCC, NDAA |
| Country of Origin | VN |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
| Environmental Certification | RoHS |
