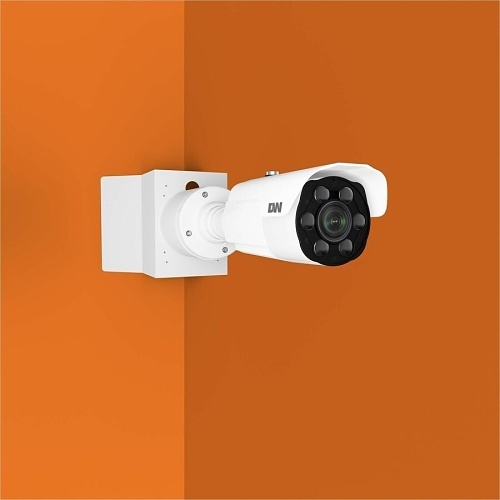

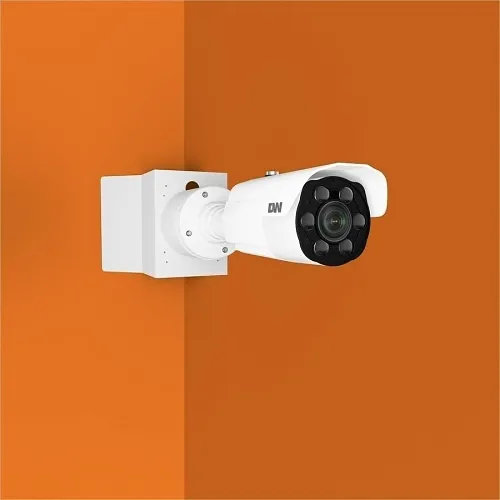

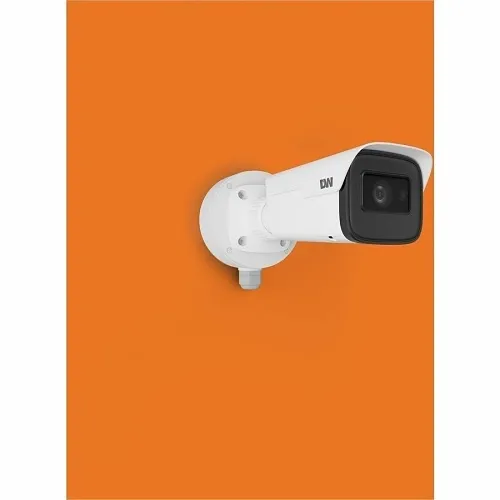

Digital Watchdog DWC-VSBD04BI MEGApix 4MP WDR Bullet IP Camera with Smart IR, 2.8mm Fixed Lens, White
Key Features
- Deliver crisp, actionable 4MP imagery at 30 fps so security teams can identify people and incidents in real time
- True WDR and 164' Smart IR ensure reliable monitoring in high-contrast scenes and complete darkness without extra lighting
- Rugged IP67 weatherproof and IK10 impact‑resistant housing for dependable outdoor surveillance in harsh environments
- Built‑in analytics (line crossing, perimeter intrusion, tamper detection) reduce false alarms and streamline event-driven monitoring
- ONVIF and NDAA compliance plus local SD recording and 5-year warranty simplify integration and protect your investment
Quick Specifications
- Brand Name
- Digital Watchdog
- Manufacturer
- Digital Watchdog
- Product Line
- MEGApix
- Product Name
- MEGApix 4MP bullet IP camera with fixed lens and IR
Frequently Bought Together
Digital Watchdog DWC-VSBD04BI MEGApix 4MP WDR Bullet IP Camera with Smart IR, 2.8mm Fixed Lens, White
$175.96
5 items selected
Total: $2,197.95
Product Information Tabs
Overview
Designed for reliable outdoor surveillance, the Digital Watchdog MEGApix DWC-VSBD04BI bullet IP camera delivers high-resolution imaging and intelligent analytics to strengthen perimeter security and remote monitoring. This MEGApix 4MP camera captures smooth 30 fps video through a 2.8mm fixed lens, so operators get clear, usable footage for identification and evidence. True Wide Dynamic Range (WDR) handles backlit or high-contrast scenes, while Smart IR reaches up to 164 feet to maintain B/W clarity at night—reducing the need for supplemental lighting. Built for real-world installations, the aluminum die-cast housing is IP67 weatherproof and IK10 impact resistant for long-term outdoor performance. Advanced analytics—including line crossing, perimeter intrusion and tamper detection—cut down on false alarms and prioritize critical events for faster response. ONVIF conformity and NDAA compliance mean straightforward integration with open platform VMS and secure procurement for government or enterprise deployments. Ideal for parking lots, retail perimeters, and facility monitoring, the DWC-VSBD04BI is a practical, high-value choice for upgrading your security and surveillance network. Add it to your system today to improve coverage and incident detection.
Features
- Deliver crisp, actionable 4MP imagery at 30 fps so security teams can identify people and incidents in real time
- True WDR and 164' Smart IR ensure reliable monitoring in high-contrast scenes and complete darkness without extra lighting
- Rugged IP67 weatherproof and IK10 impact‑resistant housing for dependable outdoor surveillance in harsh environments
- Built‑in analytics (line crossing, perimeter intrusion, tamper detection) reduce false alarms and streamline event-driven monitoring
- ONVIF and NDAA compliance plus local SD recording and 5-year warranty simplify integration and protect your investment
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | MEGApix |
| Product Name | MEGApix 4MP bullet IP camera with fixed lens and IR |
| Product Type | Network Camera |
| Product Model | DWC-VSBD04BI |
| Product Series | V-Class |
| Manufacturer Part Number | DWC-VSBD04BI |
| Supported Network Protocols | IPv4, IPv6 |
| Technical Information | |
| Material | Aluminum Die-cast |
| Lens Type | Fixed |
| Protocols | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, uPNP |
| Night Vision | Yes |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, MJPEG |
| Output Voltage | 12V DC |
| Maximum Aperture | f/1.6 |
| Motion Detection | Yes |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Built-in Microphone | Yes |
| Minimum Focal Length | 2.8mm |
| Illumination Distance | 164' |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 4MP |
| Audio | |
| Audio Encoding | G.711 |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 164 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/3" |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Operating Temperature (T-T) | -22-140°F |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Exposure | |
| Minimum Illumination | 0.0 lux (B/W), 0.005 lux (color) |
| Longest Shutter Speed | 1/2 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.8mm |
| Media & Performance | |
| Network Technology | 10 Base, 100 Base |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Depth | 2.8" |
| Width | 3.2" |
| Height | 8.7" |
| Weight | 1.52 lb |
| Durability | Weather Resistant |
| Form Factor | Bullet |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Ceiling Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | 2K |
| TBD | |
| Amperage | 666.6mA |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Digital Watermark, Highlight Compensation (HLC), Human Detection, Motion Detection, Privacy Masking, Smart IR, Tamper Detection, Wide Dynamic Range |
| Certifications | CE, FCC, NDAA, ONVIF |
| Country of Origin | TW |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
| Environmental Certification | RoHS |
