Digital Watchdog DWC-XSBC08BIC1 MEGApix 8MP Ai CaaS 4K Bullet IP Camera with Ultra-Wide Fixed Lens and IR

SKU: DWC-XSBC08BIC1 Digital Watchdog

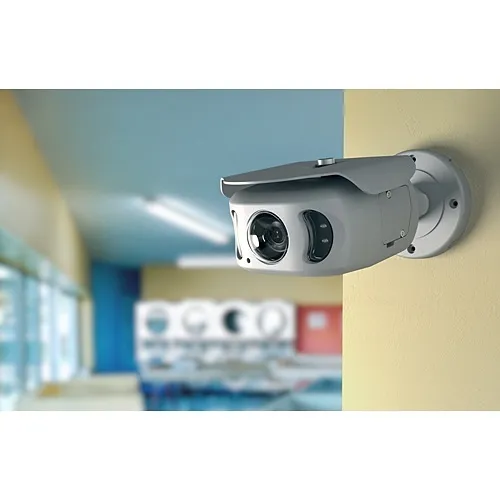

Image of 6K-XSBC8BIC1
Product images for Digital Watchdog DWC-XSBC08BIC1 MEGApix 8MP Ai CaaS 4K Bullet IP Camera with Ultra-Wide Fixed Lens and IR. 2 image(s) available. Click on image to view full size.

Key Features

  • Server-less deployment with DW Spectrum pre-installed: simplifies installation, reduces infrastructure costs and speeds time-to-protection.
  • Edge-based AI analytics: on-camera object detection and classification cut false alerts and save bandwidth for efficient monitoring.
  • Ultra-wide 2.3mm lens with 4K/30fps imaging: captures expansive scenes with sharp detail for better situational awareness across large areas.
  • 1TB onboard storage & 30fps recording: reliable local retention for extended investigation without extra NVRs or servers.
  • Rugged, all-weather design: IP67 and IK09-rated housing with -40°F cold-start and Smart IR ensures continuous security in harsh environments.
  • Remote management & compliance-ready: DW Cloud access and NDAA/TAA certification make this ideal for enterprise and government surveillance deployments.

Quick Specifications

Product Model
DWC-XSBC08BiC1
Brand Name
Digital Watchdog
Product Line
MEGApix Ai CloudCam
Product Name
MEGApix Ai CaaS 4K bullet edge IP camera with ultra-wide fixed lens, IR and an AI engine
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Protect wide, critical spaces with a single, powerful device. The Digital Watchdog MEGApix 8MP CaaS bullet IP camera combines server-less DW Spectrum, edge AI analytics and a 2.3mm ultra-wide lens to deliver 4K (real-time 30fps) coverage for expansive security, surveillance and monitoring applications. With on-camera object classification and built-in 1TB storage, the camera reduces network load and preserves evidence locally—eliminating the need for dedicated servers and lowering total cost of ownership. Designed for real-world deployments, the rugged aluminum housing is IP67/IK09 rated, supports Smart IR night vision to 100', and is built to operate down to -40°F. Network-friendly H.265 compression and DW Cloud remote management let teams monitor sites from anywhere while maintaining crisp video for investigation and compliance. Ideal for parking lots, transit hubs, campuses and perimeter security, the MEGApix bullet camera delivers reliable, enterprise-grade surveillance where broad coverage and intelligent analytics matter most. Contact your dealer to specify the MEGApix DWC-XSBC08BIC1 for your next security project.

Features

  • Server-less deployment with DW Spectrum pre-installed: simplifies installation, reduces infrastructure costs and speeds time-to-protection.
  • Edge-based AI analytics: on-camera object detection and classification cut false alerts and save bandwidth for efficient monitoring.
  • Ultra-wide 2.3mm lens with 4K/30fps imaging: captures expansive scenes with sharp detail for better situational awareness across large areas.
  • 1TB onboard storage & 30fps recording: reliable local retention for extended investigation without extra NVRs or servers.
  • Rugged, all-weather design: IP67 and IK09-rated housing with -40°F cold-start and Smart IR ensures continuous security in harsh environments.
  • Remote management & compliance-ready: DW Cloud access and NDAA/TAA certification make this ideal for enterprise and government surveillance deployments.
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line MEGApix Ai CloudCam
Product Name MEGApix Ai CaaS 4K bullet edge IP camera with ultra-wide fixed lens, IR and an AI engine
Product Type IP Camera
Product Model DWC-XSBC08BiC1
Product Series X - Class
Manufacturer Part Number DWC-XSBC08BIC1
Supported Network Protocols IPv4
Technical Information
Material Aluminum Die-cast
Lens Type Fixed
Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Night Vision Yes
Programmable Yes
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Output Voltage 12V DC
Motion Detection Yes
Maximum Frame Rate 30fps
American Wire Gauge 18AWG
Built-in Microphone Yes
Illumination Distance 100'
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP67
Display & Graphics
Image Sensor Size 1/1.8"
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 10-90% (Non-condensing)
Operating Temperature (T-T) -40-122°F
Maximum Operating Temperature 122°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.29 lux (color)
Longest Shutter Speed 1/15 Second
Shortest Shutter Speed Off, x10, x2, x3, x5, x6, x7.5
Aspect Ratio 4:3
Lens
Focus Modes Auto, Manual
Focal Length 2.3mm
Lens Included Yes
Maximum Focal Length 2.3mm
License Information
License Quantity 1
Media & Performance
Network Technology 1000 Base-T Ethernet
Others
Model Number Replaces DWC-PVF5M1TIRWC1T, DWC-PVF5M1TIRWC5
Physical Characteristics
Depth 3.8"
Width 8.75"
Height 5.03"
Weight 2.13lb
Durability Weather Resistant
Form Factor Bullet, Panoramic
Power Description
Frequency 50 Hz
Input Voltage 12V DC
TBD
Amperage 1.83A
Warranty
Limited Warranty 5-Year
Miscellaneous
Certifications CE, FCC, NDAA, ONVIF, TAA, UL Listing
Impact Protection Rating IK09
