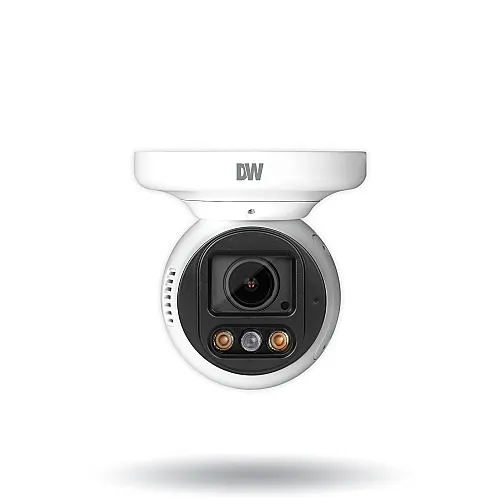

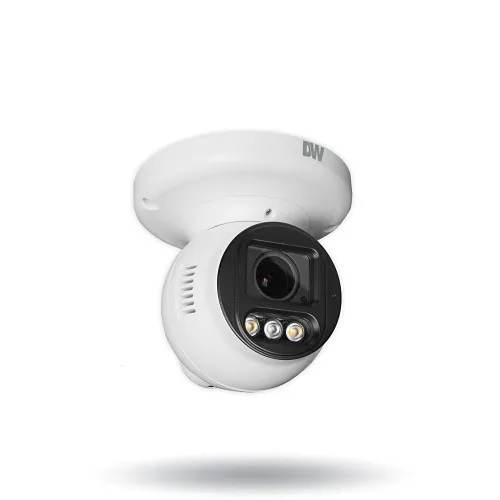

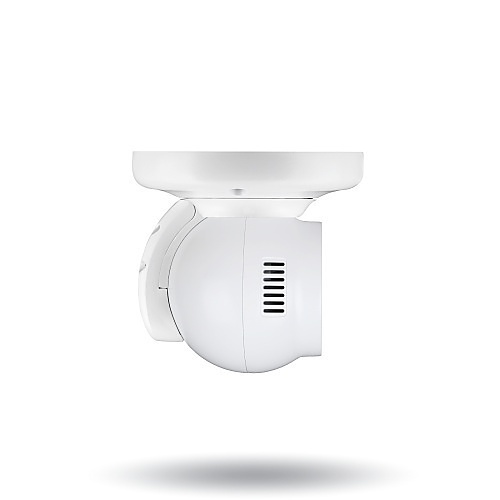

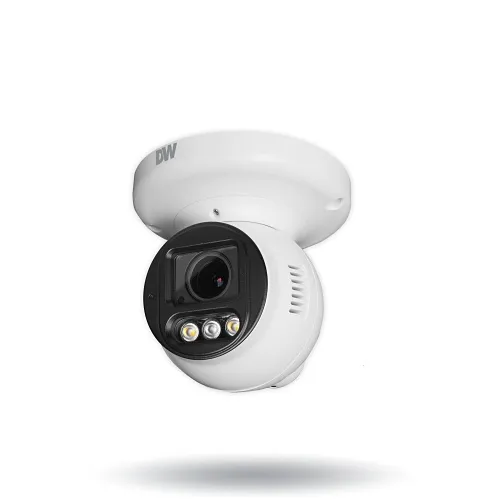

Digital Watchdog DWC-XSTD05MF MEGApix Ai 5MP Vandal Ball Turret IP Camera with White Light LEDs, 2.7-12mm Varifocal Lens
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Built-in AI analytics and edge deep learning reduce false alarms and cut review time so security teams focus on real threats
- Integrated 90 ft white-light plus red/blue flash LEDs deliver color video and active deterrence in near-total darkness
- Motorized 2.7–12mm varifocal lens with autofocus enables remote framing and quick adjustments for flexible coverage without ladder work
- Rugged IP67 weatherproof and IK10 vandal-resistant housing protects investment in harsh outdoor environments
- Star-Light Plus low-light color imaging ensures readable footage with minimal supplemental illumination for 24/7 surveillance
- Seamless integration with DW Spectrum and ONVIF-compatible systems simplifies deployment and centralized monitoring
Quick Specifications
- Brand Name
- Digital Watchdog
- Manufacturer
- Digital Watchdog
- Product Line
- MEGApix Ai
- Product Name
- MEGApix Ai 5MP vandal ball turret IP camera with vari-focal lens and white light LEDs
Frequently Bought Together
Digital Watchdog DWC-XSTD05MF MEGApix Ai 5MP Vandal Ball Turret IP Camera with White Light LEDs, 2.7-12mm Varifocal Lens
$843.79
10 items selected
Total: $2,273.83
Product Information Tabs
Overview
Protect critical sites with a single, versatile camera that combines powerful AI, active deterrence and rugged reliability. The Digital Watchdog MEGApix Ai 5MP vandal ball turret IP camera delivers crisp 5MP resolution at 30 fps and Star-Light Plus color imaging for reliable identification even in near-total darkness. Onboard deep-learning analytics and up to 40 configurable detection zones reduce nuisance alerts and preserve storage by focusing recording on verified events. A motorized 2.7–12mm varifocal lens with autofocus lets you remotely zoom and fine-tune views for precise coverage, while integrated white light and red/blue flash LEDs provide illumination and a visible deterrent up to 90 feet. Built to withstand demanding installations, the IP67-rated, IK10 housing protects against weather and vandalism for perimeter, retail, parking and campus surveillance. Native DW Spectrum compatibility and ONVIF support speed integration into existing security and monitoring systems. Ideal for teams that need reliable, low-maintenance video surveillance with proactive deterrence—add this MEGApix turret to your security deployment today.
Features
- Built-in AI analytics and edge deep learning reduce false alarms and cut review time so security teams focus on real threats
- Integrated 90 ft white-light plus red/blue flash LEDs deliver color video and active deterrence in near-total darkness
- Motorized 2.7–12mm varifocal lens with autofocus enables remote framing and quick adjustments for flexible coverage without ladder work
- Rugged IP67 weatherproof and IK10 vandal-resistant housing protects investment in harsh outdoor environments
- Star-Light Plus low-light color imaging ensures readable footage with minimal supplemental illumination for 24/7 surveillance
- Seamless integration with DW Spectrum and ONVIF-compatible systems simplifies deployment and centralized monitoring
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | MEGApix Ai |
| Product Name | MEGApix Ai 5MP vandal ball turret IP camera with vari-focal lens and white light LEDs |
| Product Type | Network Camera |
| Product Model | DWC-XSTD05MF |
| Manufacturer Part Number | DWC-XSTD05MF |
| Supported Network Protocols | IPv4 |
| Technical Information | |
| Material | Aluminum Die-cast |
| Lens Type | Varifocal, Zoom |
| Protocols | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Night Vision | Yes |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265 |
| Output Voltage | 12V DC |
| Maximum Aperture | f/1.3 |
| Motion Detection | Yes |
| Maximum Frame Rate | 30fps |
| American Wire Gauge | 18AWG |
| Built-in Microphone | Yes |
| Minimum Focal Length | 2.7mm |
| Effective Camera Resolution | 5MP |
| Audio | |
| Audio Encoding | G.711 ulaw |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Maximum Operating Temperature | 122°F |
| Exposure | |
| Minimum Illumination | 0 lux (white light), 0.03 lux (color) |
| Longest Shutter Speed | 1/15 s |
| Shortest Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| Interfaces/Ports | |
| HDMI | No |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 2.7-12mm |
| Lens Included | Yes |
| Maximum Focal Length | 12mm |
| Media & Performance | |
| Network Technology | 10 Base-T Ethernet, 100 Base-T Ethernet |
| Physical Characteristics | |
| Color | White |
| Height | 4.8" |
| Weight | 1.94lb |
| Durability | Weather Resistant |
| Form Factor | Turret |
| Power Description | |
| Frequency | 50 Hz |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Ceiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount |
| TBD | |
| Amperage | 1A |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | CE, FCC, NDAA, ONVIF, TAA, UL Listing |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
