Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs

SKU: DWC-XSTD05MFC1 Digital Watchdog

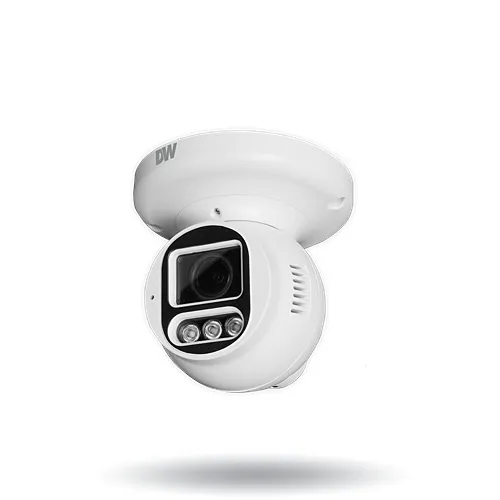

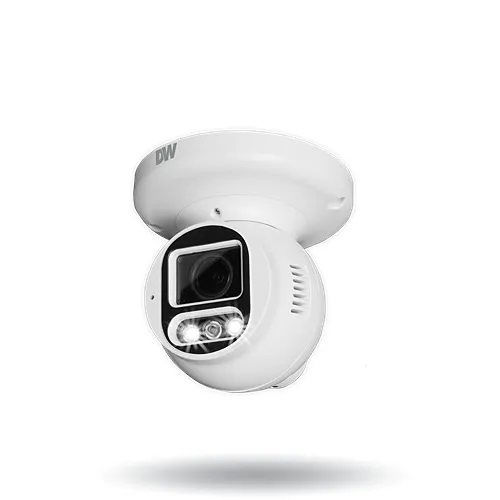

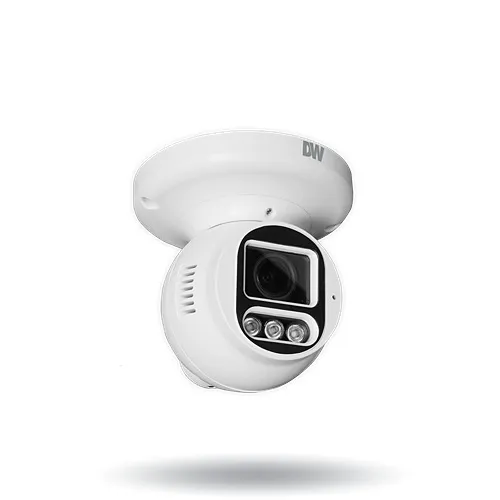

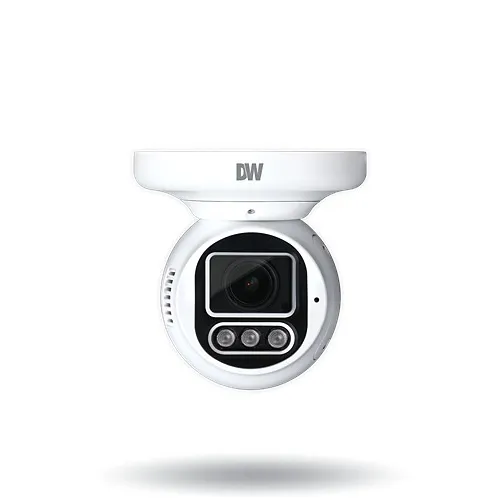

Image of 6K-XSTD05MF1
Product images for Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs. 5 image(s) available. Click on image to view full size.

Key Features

  • All-in-one edge solution eliminates the need for external servers or NVRs, simplifying deployment and lowering total cost of ownership
  • AI-powered detection accurately identifies people, vehicles and objects across up to 40 zones to reduce false alarms and operational noise
  • Active deterrence with white light, flashing LEDs and two-way audio prevents incidents before they escalate and improves situational response
  • Full-color low-light imaging (Star-Light Plus) and 5MP/30fps resolution deliver clear evidence-grade video for investigations and compliance
  • 1TB onboard smart storage with H.265 compression stores up to 90 days of intelligent recordings while minimizing network load
  • Rugged, NDAA/TAA-compliant IP67 & IK10 housing and 5-year warranty ensure reliable outdoor operation and procurement eligibility

Quick Specifications

Product Model
DWC-XSTD05MFC1
Brand Name
Digital Watchdog
Product Line
MEGApix Ai CloudCam
Product Name
MEGApix Ai CaaS 5MP turret edge IP camera with vari-focal lens, flash LEDs and AI engine
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

For businesses that need reliable, low-maintenance surveillance, the Digital Watchdog MEGApix 5MP Ai CaaS turret IP camera delivers an all-in-one security solution that simplifies monitoring and protects assets. This MEGApix Ai turret combines edge-installed DW Spectrum IPVMS, a deep-learning AI engine and motorized 2.7–12mm varifocal lens to capture 5MP video at 30 fps with autofocus flexibility. Intelligent analytics accurately detect people, vehicles and objects across up to 40 zones—cutting false alerts and enabling faster response. Built-in white light, flash LEDs and two-way audio provide active deterrence and situational control, while the Star-Light Plus sensor preserves full-color detail in near-dark conditions. With H.265 compression and 1TB onboard smart storage, you get extended retention without heavy network burden. Encased in an IP67/IK10 vandal-resistant housing and NDAA/TAA-compliant for secure procurement, this turret camera is ideal for retail, campuses, parking facilities and perimeter monitoring. Enhance your security posture with an all-in-one camera that combines surveillance, analytics and deterrence—contact sales or add to cart to deploy a scalable monitoring solution.

Features

  • All-in-one edge solution eliminates the need for external servers or NVRs, simplifying deployment and lowering total cost of ownership
  • AI-powered detection accurately identifies people, vehicles and objects across up to 40 zones to reduce false alarms and operational noise
  • Active deterrence with white light, flashing LEDs and two-way audio prevents incidents before they escalate and improves situational response
  • Full-color low-light imaging (Star-Light Plus) and 5MP/30fps resolution deliver clear evidence-grade video for investigations and compliance
  • 1TB onboard smart storage with H.265 compression stores up to 90 days of intelligent recordings while minimizing network load
  • Rugged, NDAA/TAA-compliant IP67 & IK10 housing and 5-year warranty ensure reliable outdoor operation and procurement eligibility
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line MEGApix Ai CloudCam
Product Name MEGApix Ai CaaS 5MP turret edge IP camera with vari-focal lens, flash LEDs and AI engine
Product Type IP Camera
Product Model DWC-XSTD05MFC1
Product Series X - Class
Manufacturer Part Number DWC-XSTD05MFC1
Supported Network Protocols IPv4
Technical Information
Material Aluminum Die-cast
Lens Type Varifocal, Zoom
Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Night Vision Yes
Programmable Yes
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Output Voltage 12V DC
Maximum Aperture f/1.3
Motion Detection Yes
Night Vision Type Color
Maximum Frame Rate 30fps
American Wire Gauge 18AWG
Built-in Microphone Yes
Minimum Focal Length 2.7mm
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP67
Display & Graphics
Image Sensor Size 1/2.8"
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 10-90% (Non-condensing)
Operating Temperature (T-T) -4-122°F
Maximum Operating Temperature 122°F
Minimum Operating Temperature -4°F
Exposure
Minimum Illumination 0 lux (white light), 0.07 lux (color)
Longest Shutter Speed 1/15 Second
Shortest Shutter Speed Off, x10, x2, x3, x5, x6, x7.5
Lens
Focus Modes Auto, Manual
Focal Length 2.7-12mm
Lens Included Yes
License Information
License Quantity 1
Media & Performance
Network Technology 10 Base-T Ethernet, 100 Base-T Ethernet
Physical Characteristics
Color White
Width 4.79"
Height 4.92"
Weight 1.94lb
Durability Weather Resistant
Form Factor Turret
Power Description
Frequency 50 Hz
Input Voltage 12V DC
TBD
Amperage 850mA
Warranty
Limited Warranty 5-Year
Miscellaneous
Certifications CE, FCC, NDAA, ONVIF, TAA, UL Listing
Impact Protection Rating IK10
