TP-Link EAP655-WALL Omada AX3000 Wall Plate Wi-Fi 6 Access Point, 802.3af/at PoE

SKU: EAP655-WALL TP-Link
Image of FP-EAP655WLL
Product images for TP-Link EAP655-WALL Omada AX3000 Wall Plate Wi-Fi 6 Access Point, 802.3af/at PoE. 7 image(s) available. Click on image to view full size.

Key Features

  • AX3000 Wi‑Fi 6 performance (up to 2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) to support high-density rooms, video conferencing and monitoring

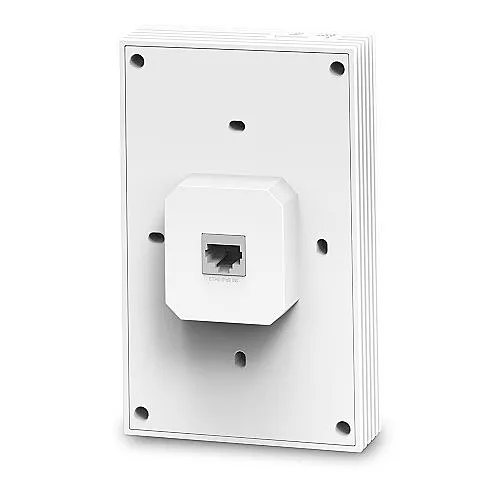

  • 802.3af/at PoE and four Gigabit ports (three downlink, one PoE pass-through) for simple installation and local wired connections to phones or surveillance cameras
  • Omada SDN centralized cloud management for remote provisioning, monitoring, and firmware updates across multiple sites
  • Enterprise-grade security with WPA3, captive portal, multiple SSIDs and guest isolation to protect business and surveillance traffic

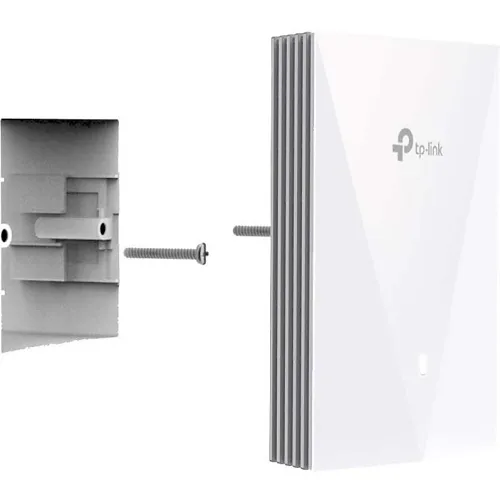

  • Slim wall-plate form factor fits standard junction boxes—delivers private in-room networks for hotels, dorms, apartments and meeting rooms

Quick Specifications

Product Model
EAP655-WALL
Brand Name
TP-Link
Product Line
Omada
Product Name
EAP655-WALL AX3000 Wall Plate WiFi 6 Access Point
View Full Technical Specifications

Explore the details

Product information

EAP655-WALL

Overview

Deliver reliable, high-capacity in-room wireless and wired connectivity with the TP-Link EAP655-WALL Omada AX3000 Wall Plate Wi-Fi 6 Access Point. Designed for hospitality, multi-dwelling and enterprise environments, this wall-mounted AP provides AX3000 speeds (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) and HE160 support to handle dense device loads—ideal for video conferencing, VoIP, IoT monitoring and IP surveillance uplinks. 802.3af/at PoE compatibility and three downlink Gigabit ports plus one PoE pass-through simplify deployment and reduce cabling, letting you power devices and cameras directly at the room outlet. Integrated with Omada SDN cloud management, the EAP655-WALL enables centralized provisioning, analytics and remote troubleshooting across properties. Security features including WPA3, captive portal authentication and multiple SSIDs keep guest access isolated and secure. Backed by a 5-year warranty and a compact design that fits standard junction boxes, the EAP655-WALL is a professional solution to extend secure networking to every room. Add this TP-Link wall-plate AP to your network to improve coverage and simplify management in hotels, apartments, dormitories or meeting spaces.

Features

  • AX3000 Wi‑Fi 6 performance (up to 2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) to support high-density rooms, video conferencing and monitoring
  • 802.3af/at PoE and four Gigabit ports (three downlink, one PoE pass-through) for simple installation and local wired connections to phones or surveillance cameras
  • Omada SDN centralized cloud management for remote provisioning, monitoring, and firmware updates across multiple sites
  • Enterprise-grade security with WPA3, captive portal, multiple SSIDs and guest isolation to protect business and surveillance traffic
  • Slim wall-plate form factor fits standard junction boxes—delivers private in-room networks for hotels, dorms, apartments and meeting rooms
29 of 29 specifications
Technical specifications for TP-Link EAP655-WALL Omada AX3000 Wall Plate Wi-Fi 6 Access Point, 802.3af/at PoE
General Information
Brand Name TP-Link
Manufacturer TP-LINK Technologies Co., Ltd
Product Line Omada
Product Name EAP655-WALL AX3000 Wall Plate WiFi 6 Access Point
Product Type Wireless Access Point
Product Model EAP655-WALL
Country of Origin CN
Manufacturer Part Number EAP655-WALL
Technical Information
Network Band 2.4GHz, 5GHz
Frequency Band 2.40GHz
Data Encryption Yes
Wi-Fi Generation Wi-Fi 6
Power Consumption 13W
Wireless LAN Standard 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n
Beamforming Technology Yes
Wireless Transmission Speed 2.91Gbps
Interfaces/Ports
Number of Network (RJ-45) Ports 4
Network & Communication
Ethernet Technology 10 Gbps
Physical Characteristics
Color White
Depth 1.7"
Width 3.4"
Height 5.6"
Form Factor Wall Mount
Power Description
PoE (RJ-45) Port Yes
Product Information
Mount Type Wall Mount
Warranty
Limited Warranty 5-Year
Wireless Specifications
Encryption Standard WPA2-ENT, WPA2-PSK, WPA3-ENT, WPA3-PSK, WPA-ENT, WPA-PSK
Miscellaneous
Indoor/Outdoor Indoor
Environmentally Friendly Yes
