TP-Link EAP773 Omada BE11000 Tri-Band Wi-Fi 7 Access Point, Ceiling Mount

SKU: EAP773 TP-Link

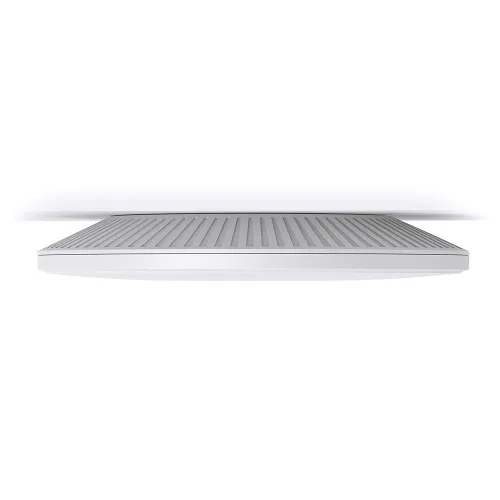

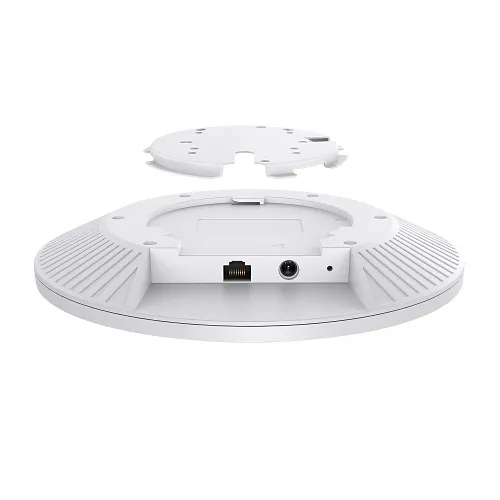

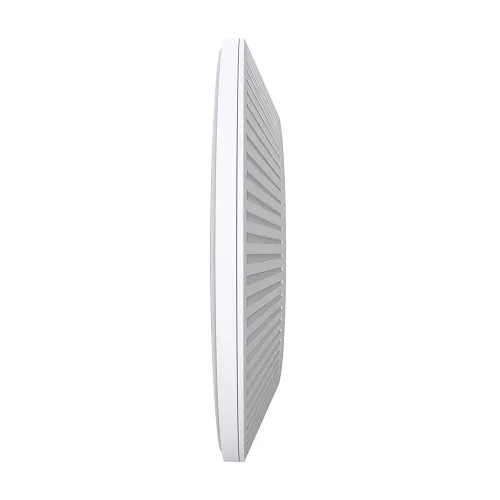

Image of FP-EAP773
Product images for TP-Link EAP773 Omada BE11000 Tri-Band Wi-Fi 7 Access Point, Ceiling Mount. 4 image(s) available. Click on image to view full size.

Key Features

  • Deliver high-capacity Wi-Fi for dense deployments: tri-band Wi‑Fi 7 handles more devices with less congestion, ideal for busy offices and public spaces.
  • Future‑proof 10G uplink: unlock full Wi‑Fi 7 throughput for bandwidth-hungry applications like 4K/8K surveillance and cloud backups.
  • Clean 6 GHz band with 320 MHz channels: reduces interference and increases simultaneous streams for smooth video monitoring and VoIP.
  • Low latency and interference mitigation: Multi-Link Operation, Multi-RUs and beamforming keep real‑time security feeds and monitoring responsive.
  • Easy ceiling or wall deployment with Omada management: scalable, centrally managed networking for enterprise, retail, and campus security systems.

Quick Specifications

Product Model
EAP773
Brand Name
TP-Link
Product Line
Omada
Product Name
Omada EAP773 Wireless Access Point
View Full Technical Specifications

Explore the details

Product information

EAP773

Overview

Deliver high-capacity, low-latency wireless for demanding business environments with the TP‑Link Omada EAP773 ceiling-mount Wi‑Fi 7 access point. Designed for enterprise, retail and campus deployments, this wireless access point brings a clear 6 GHz band and tri-band performance—up to 5760 Mbps (6 GHz), 4320 Mbps (5 GHz) and 574 Mbps (2.4 GHz)—so video surveillance, monitoring stations and large client counts run without buffering. A 10G Ethernet uplink lets you fully leverage Wi‑Fi 7 throughput and future growth, while 320 MHz channels, Multi-Link Operation and Multi-RUs reduce latency and interference for dependable, real‑time security feeds.

Built with enterprise-grade encryption and support for WPA3 and WPA2-ENT, the EAP773 protects sensitive surveillance and network traffic. Its discreet ceiling form factor and Omada centralized management simplify large-scale rollouts and ongoing maintenance. Whether you are upgrading an IP camera network, adding robust wireless for point-of-sale and guest access, or expanding an IoT monitoring system, the TP‑Link EAP773 delivers resilient, high-speed coverage. Upgrade network performance and secure your monitoring infrastructure—deploy the EAP773 today.

Features

  • Deliver high-capacity Wi-Fi for dense deployments: tri-band Wi‑Fi 7 handles more devices with less congestion, ideal for busy offices and public spaces.
  • Future‑proof 10G uplink: unlock full Wi‑Fi 7 throughput for bandwidth-hungry applications like 4K/8K surveillance and cloud backups.
  • Clean 6 GHz band with 320 MHz channels: reduces interference and increases simultaneous streams for smooth video monitoring and VoIP.
  • Low latency and interference mitigation: Multi-Link Operation, Multi-RUs and beamforming keep real‑time security feeds and monitoring responsive.
  • Easy ceiling or wall deployment with Omada management: scalable, centrally managed networking for enterprise, retail, and campus security systems.
31 of 31 specifications
Technical specifications for TP-Link EAP773 Omada BE11000 Tri-Band Wi-Fi 7 Access Point, Ceiling Mount
General Information
Brand Name TP-Link
Manufacturer TP-LINK Technologies Co., Ltd
Product Line Omada
Product Name Omada EAP773 Wireless Access Point
Product Type Wireless Access Point
Product Model EAP773
Bluetooth Version Bluetooth 5.2
Manufacturer Part Number EAP773
Technical Information
Network Band 2.4GHz, 5GHz, 6GHz
Frequency Band 5.00GHz
Data Encryption Yes
MIMO Technology MU-MIMO (Multi-User MIMO)
Wi-Fi Generation Wi-Fi 7
Power Consumption 22W
Wireless LAN Standard 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11be, 802.11g, 802.11n
Beamforming Technology Yes
Wireless Transmission Speed 10.40Gbps
Interfaces/Ports
Number of Network (RJ-45) Ports 1
Network & Communication
Ethernet Technology 10 Gbps
Physical Characteristics
Color White
Depth 8.7"
Width 8.7"
Height 1.3"
Form Factor Ceiling Mount, Wall Mount
Product Information
Mount Type Ceiling Mount, Wall Mount
Product Replacements & Other Alternatives
Model Number Replaces EAP690E HD
Wireless Specifications
Encryption Standard WPA2-ENT, WPA2-PSK, WPA3, WPA3-ENT, WPA3-Personal, WPA-ENT, WPA-PSK
Miscellaneous
Indoor/Outdoor Indoor
Package Contents Ceiling/Wall Mounting Kits, EAP773, Installation Guide
Environmentally Friendly Yes
Environmental Certification CE, FCC, RoHS
