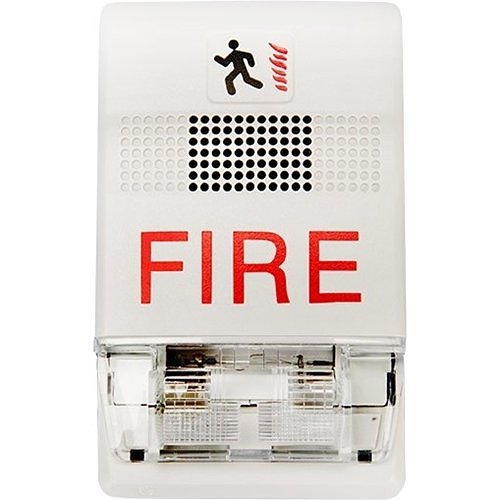

Kidde EG1F-CVM Genesis Chime/Strobe, Wall Mount, 15-95 CD, FIRE Marking, 24VDC, White
Image of 1
Key Features
- Low‑profile wall‑mount design that blends with any interior and minimizes visual impact for front‑of‑house installations
- FullLight strobe optics deliver smooth, consistent illumination (selectable 15–95 cd) for reliable visual notification and improved code compliance
- Selectable audio and strobe modes (temporal, coded or steady) provide installation flexibility to meet different building and fire alarm requirements
- Low current draw and 24V DC operation reduce panel load and simplify low‑voltage wiring in security and fire alarm systems
- Self‑synchronizing strobe with optional sync module keeps multiple devices in sync for clear, coordinated signaling across zones
Quick Specifications
- Product Model
- EG1F-CVM
- Brand Name
- Kidde Commercial
- Product Line
- Genesis
- Product Name
- Genesis EG1 Security Alarm
Frequently Bought Together
Kidde EG1F-CVM Genesis Chime/Strobe, Wall Mount, 15-95 CD, FIRE Marking, 24VDC, White
$129.80
6 items selected
Total: $580.22
Explore the details
Product information
EG1F-CVM
Overview
For facilities that need compact, reliable notification, the Kidde Commercial Genesis EG1F-CVM chime/strobe delivers unobtrusive audible and visual signaling ideal for security, fire alarm and monitoring applications. As a Genesis chime/strobe, it combines a slim, wall‑mount profile with FullLight strobe optics to produce a smooth light distribution and selectable output (15–95 cd) for consistent coverage. The chime provides a pleasant tone at up to 79 dB (peak) and can be field‑configured for temporal, coded or steady operation to match site requirements. Operating on standard 24V DC power and engineered for low current draw, the EG1F-CVM minimizes load on control panels—saving installation time and simplifying low‑voltage system design. Its textured white housing, concealed mounting and durable UV‑resistant plastic make it suitable for indoor commercial, healthcare and educational spaces where aesthetics and performance matter. Backed by Kidde Commercial reliability and UL listings, this chime/strobe is a practical choice for integrating audible/visual notifications into security, surveillance and fire monitoring systems. Specify the EG1F-CVM for compact, code‑ready notification—order now or contact your Kidde representative for system design assistance.
Features
- Low‑profile wall‑mount design that blends with any interior and minimizes visual impact for front‑of‑house installations
- FullLight strobe optics deliver smooth, consistent illumination (selectable 15–95 cd) for reliable visual notification and improved code compliance
- Selectable audio and strobe modes (temporal, coded or steady) provide installation flexibility to meet different building and fire alarm requirements
- Low current draw and 24V DC operation reduce panel load and simplify low‑voltage wiring in security and fire alarm systems
- Self‑synchronizing strobe with optional sync module keeps multiple devices in sync for clear, coordinated signaling across zones
| General Information | |
|---|---|
| Brand Name | Kidde Commercial |
| Manufacturer | Carrier |
| Product Line | Genesis |
| Product Name | Genesis EG1 Security Alarm |
| Product Type | Chime Strobe |
| Product Series | EG1 |
| Manufacturer Part Number | EG1F-CVM |
| Technical Information | |
| Material | Plastic |
| Alarm Type | Audible, Visual |
| Application/Usage | Signaling |
| Environmental Conditions | |
| Sound Emission | 79 dB |
| Others | |
| Model Number Replaces | SH-532BQ |
| Physical Characteristics | |
| Color | White |
| Depth | 0.8" |
| Width | 2.7" |
| Height | 4.4" |
| Durability | UV Resistant |
| Lens Color | Clear |
| Form Factor | Flush Mount, Surface Mount, Wall Mount |
| Power Description | |
| Power Source | DC |
| Input Voltage | 24V DC |
| Product Information | |
| Mount Type | Flush Mount, Surface Mount, Wall Mount |
| Bulb/Tube Type | Xenon |
| Miscellaneous | |
| Features | Compact, Textured |
| Indoor/Outdoor | Indoor |
| Country of Origin | CN |
| Certifications & Standards | ULCEFMFCCMEA |
