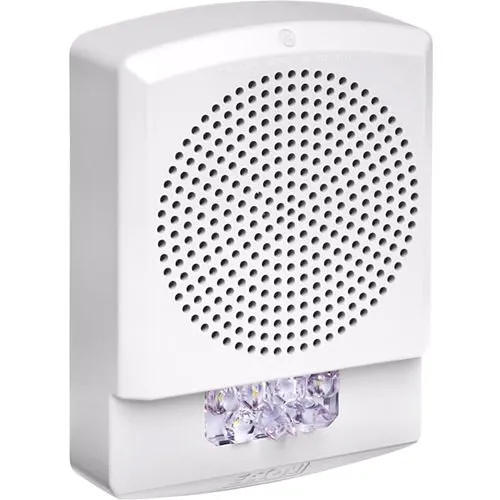

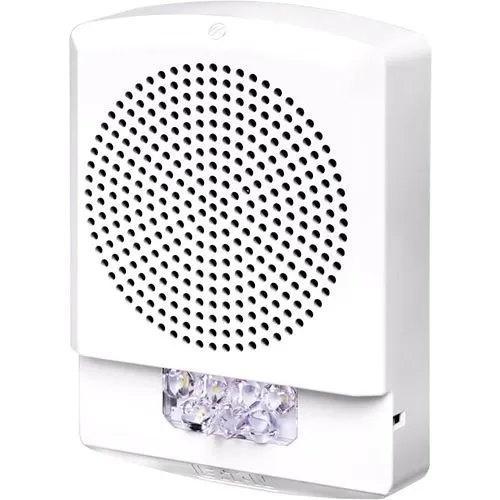

Eaton ELFHSW-N Eluxa LED Low Frequency Horn Strobe, Wall Mount, 24V, 110/177 cd, No Lettering, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 3
Key Features
- Clear, code-ready audible and visual alerts that improve occupant safety in sleeping areas and high-traffic indoor spaces
- Low-frequency horn produces an effective 80 dB tone for better wake response and alarm recognition
- Bright LED strobe (110/177 cd) with 24V AC input delivers reliable visual signaling for security and monitoring systems
- Wall-mount form factor and synchronization capability simplify installation and integration with existing fire and intrusion systems
- RoHS-compliant construction, long-life LEDs and a 3-year limited warranty reduce maintenance and total cost of ownership
Quick Specifications
- Product Model
- ELFHSW-N
- Brand Name
- Eaton
- Product Line
- Eluxa Indoor
- Product Name
- Eluxa Low Frequency Sounder Strobe
Product Information Tabs
Overview
Designed to deliver dependable audible and visual warnings for life-safety and security applications, the Eaton ELFHSW-N Eluxa LED Low Frequency Horn Strobe is an ideal choice for indoor and sleeping-area installations. This Eaton horn strobe combines a low-frequency 80 dB sounder with a high-intensity LED strobe (110/177 cd) powered by 24V AC to ensure alarms are noticed quickly by occupants and first responders. The white, wall-mount enclosure offers a compact profile (4.6" H x 2.6" W x 6.4" D) and clear lens for unobstructed light output, while synchronization support allows seamless integration into fire, intrusion and building monitoring networks. RoHS-compliant materials and energy-efficient LEDs reduce lifecycle costs and maintenance downtime, backed by a 3-year limited warranty. Recommended for schools, healthcare facilities, multi-family housing and commercial security systems, the ELFHSW-N supports reliable surveillance and alarm notification where clarity and code compliance matter. Add this Eaton horn strobe to your next monitoring or life-safety project to enhance visibility and response—contact us for compatibility and ordering information.
Features
- Clear, code-ready audible and visual alerts that improve occupant safety in sleeping areas and high-traffic indoor spaces
- Low-frequency horn produces an effective 80 dB tone for better wake response and alarm recognition
- Bright LED strobe (110/177 cd) with 24V AC input delivers reliable visual signaling for security and monitoring systems
- Wall-mount form factor and synchronization capability simplify installation and integration with existing fire and intrusion systems
- RoHS-compliant construction, long-life LEDs and a 3-year limited warranty reduce maintenance and total cost of ownership
| General Information | |
|---|---|
| Brand Name | Eaton |
| Manufacturer | Eaton Corporation |
| Product Line | Eluxa Indoor |
| Product Name | Eluxa Low Frequency Sounder Strobe |
| Product Type | Horn Strobe |
| Product Model | ELFHSW-N |
| Manufacturer Part Number | ELFHSW-N |
| Technical Information | |
| Alarm Type | Audible, Visual |
| Application/Usage | Indoor, Sleeping Area, Synchronization Module |
| Environmental Conditions | |
| Sound Emission | 80 dB |
| Others | |
| Model Number Replaces | LFHSKW3-N |
| Physical Characteristics | |
| Color | White |
| Depth | 6.4" |
| Width | 2.6" |
| Height | 4.6" |
| Weight | 1.20lb |
| Lens Color | Clear |
| Form Factor | Wall Mount |
| Power Description | |
| Input Voltage | 24V AC |
| Product Information | |
| Mount Type | Wall Mount |
| Bulb/Tube Type | LED |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
