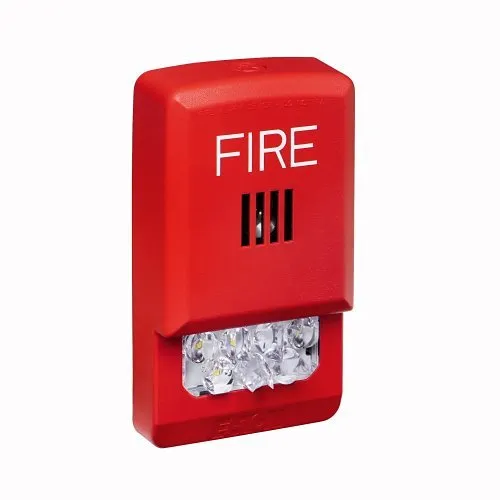

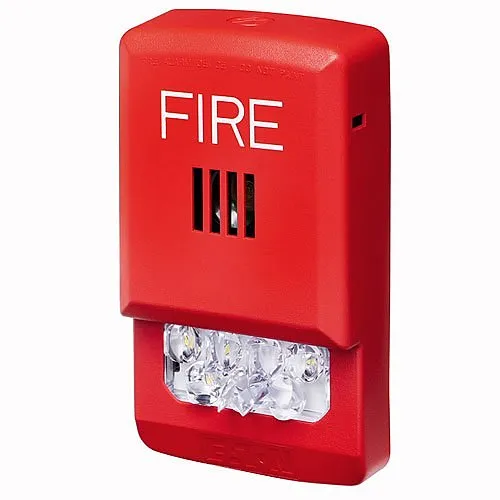

Eaton ELHSR Wheelock Eluxa LED Horn Strobe, Wall, FIRE Lettering, Clear Lens, 24V, 15/30/75/110/135/185 cd, Indoor, Red
Image of 3
Key Features
- Cuts installation and operating costs with industry-leading low LED current draw, allowing more devices per NAC and fewer power supplies
- Low-profile single-gang wall design with clear FIRE lens that blends into interiors while delivering dependable visual alerts
- Field-selectable candela (15–185 cd) and three horn patterns for flexible notification, compatible with fire alarm zones and monitoring systems
- Faster installs with a hinged, prewired mounting plate and tool-free setting changes to reduce labor on new builds and retrofits
- Code-ready performance: UL/ULC listed, RoHS compliant, and engineered for integration into security, surveillance and fire alarm systems
Quick Specifications
- Product Model
- ELHSR
- Brand Name
- Eaton
- Product Line
- Eluxa Indoor
- Product Name
- Wheelock Eluxa ELHSR Horn/Strobe
Explore the details
Product information
ELHSR
Overview
Deliver clear, code-compliant fire notification without compromising energy or aesthetics. The Eaton Wheelock Eluxa ELHSR horn strobe combines low‑power LED optics with versatile audible signaling to provide reliable, high-performance notification for commercial and institutional buildings. Designed for 24V systems, the ELHSR offers field-selectable candela settings (15–185 cd) and three horn patterns (Continuous, T3, T3/T4) so integrators can tailor outputs for specific spaces and monitoring requirements. Its ultra-low current draw reduces power supply and wiring demands—letting you put more appliances on a notification circuit and lowering lifetime operating costs. The compact, single-gang wall form factor features clear lens FIRE lettering in a UV-resistant red housing for discreet installation that meets interior design goals. UL/ULC listings and RoHS compliance ensure compatibility with modern fire alarm control panels and security monitoring infrastructures. Ideal for fire alarm, security and integrated building monitoring projects—specify the Eaton ELHSR for dependable notification and simplified installation.
Features
- Cuts installation and operating costs with industry-leading low LED current draw, allowing more devices per NAC and fewer power supplies
- Low-profile single-gang wall design with clear FIRE lens that blends into interiors while delivering dependable visual alerts
- Field-selectable candela (15–185 cd) and three horn patterns for flexible notification, compatible with fire alarm zones and monitoring systems
- Faster installs with a hinged, prewired mounting plate and tool-free setting changes to reduce labor on new builds and retrofits
- Code-ready performance: UL/ULC listed, RoHS compliant, and engineered for integration into security, surveillance and fire alarm systems
| General Information | |
|---|---|
| Brand Name | Eaton |
| Manufacturer | Eaton Corporation |
| Product Line | Eluxa Indoor |
| Product Name | Wheelock Eluxa ELHSR Horn/Strobe |
| Product Type | Horn Strobe |
| Product Model | ELHSR |
| Manufacturer Part Number | ELHSR |
| Technical Information | |
| Alarm Type | Audible, Visual |
| Application/Usage | Building, Control Panel, Fire Alarm, Indoor |
| Connectivity Technology | Wired |
| Environmental Conditions | |
| Sound Emission | 86 dB |
| Others | |
| Model Number Replaces | HSR, LHSR3 |
| Physical Characteristics | |
| Color | Red |
| Depth | 1.2" |
| Width | 2.8" |
| Height | 4.8" |
| Weight | 5.60 oz |
| Durability | UV Resistant |
| Lens Color | Clear |
| Form Factor | Wall Mount |
| Power Description | |
| Power Source | DC |
| Input Voltage | 33V DC |
| Product Information | |
| Mount Type | Wall Mount |
| Print/Message | Fire |
| Bulb/Tube Type | LED |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Compatibility | Fire Alarm Systems and Xenon Strobes |
| Indoor/Outdoor | Indoor |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
