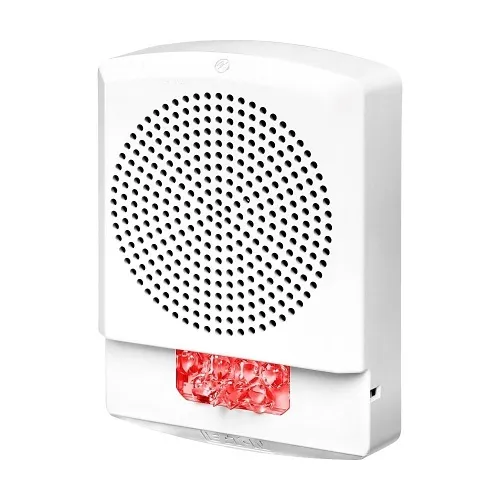

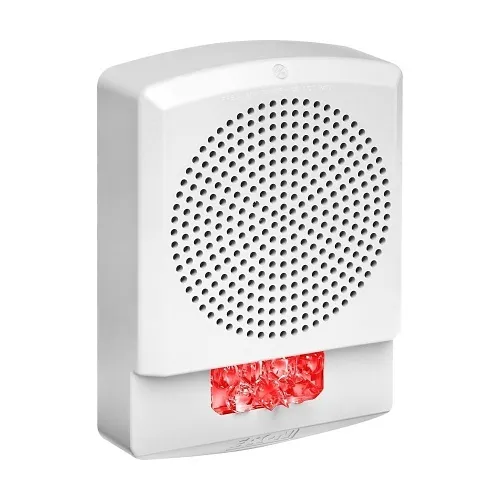

Eaton ELMTSWNR Wheelock Eluxa Multitone Strobe Horn, No Lettering, Wall Mount, 24V, Red Lens, White

For dependable indoor fire and security notification, the Eaton ELMTSW-NR horn strobe combines powerful audible alerts with efficient LED visual signaling. This Wall Mount horn strobe from Eaton delivers eight selectable tones — including NFPA/ANSI Code-3 temporal patterns — and produces up to 99 dB for unmistakable evacuation and emergency notification. The red lens model offers six field-selectable candela settings (5–50 cd) and operates on 24V DC, giving system designers precise control of coverage with minimal power draw.

Designed for commercial and industrial monitoring, the Eluxa multitone horn/strobe uses high-efficiency LED technology to lower circuit load and reduce overall system costs, allowing more devices per notification appliance circuit. Separate terminals and shunt wiring support single- or dual-circuit configurations, while compatibility with Wheelock DSM sync modules ensures synchronized visual signals for large security and surveillance deployments. RoHS-compliant and UL/ULC listed, the ELMTSW-NR is ideal for fire alarm, building security, and emergency evacuation applications. Specify the Eaton ELMTSW-NR horn strobe for your next project or contact your distributor to order.

• Reliable, code-compliant signaling: eight selectable tones including ANSI/NFPA temporal Code-3 for clear evacuation and alarm notification.
• Low operating cost: energy-efficient LED strobe and low current horn let you add more appliances per NAC and reduce power-supply requirements.
• Flexible visual intensity: six field-selectable candela settings for wall-mount red lens (5–50 cd) to match any indoor coverage requirement.
• Simple installation and service: pre-wire, hinged mounting plate and separate terminals speed installation and on-site testing.
• Synchronization ready: works with Wheelock DSM sync modules and Eaton power supplies for coordinated visual alerts across zones.
