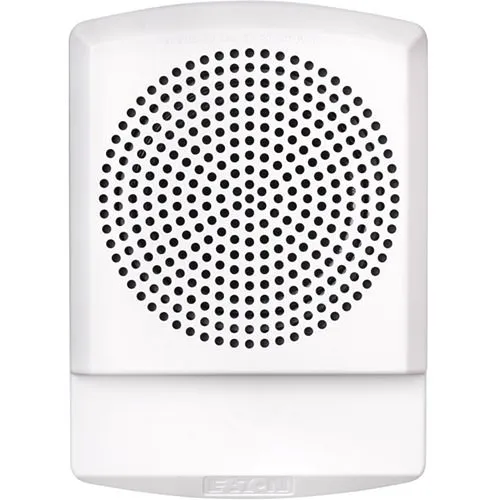

Eaton ELSPKW Wheelock Eluxa LED High Fidelity Speaker, Wall, FIRE Lettering, 24VDC, White
Image of 2
Key Features
- Delivers highly intelligible voice evacuation and alarm tones so occupants hear critical instructions clearly during emergencies
- Low-profile wall design preserves interior aesthetics while providing UL/ULC-listed fire alarm performance for security and life-safety systems
- 24V DC operation with industry-leading 300–8000 Hz frequency response and 87 dB output for crisp, reliable audio across paging, monitoring and mass notification applications
- Simplifies installation and commissioning with pre-wire/pre-test mounting plate and compatibility with common Wheelock notification appliances and FACP systems
- RoHS-compliant construction and 3-year limited warranty reduce environmental risk and support long-term facility reliability
Quick Specifications
- Product Model
- ELSPKW
- Brand Name
- Eaton
- Product Line
- Eluxa Indoor
- Product Name
- Wheelock High Fidelity Speaker
Explore the details
Product information
ELSPKW
Overview
For safety-critical environments that require clear, dependable voice evacuation and alarm signaling, the Eaton Wheelock Eluxa ELSPKW high-fidelity wall speaker delivers the intelligibility and compliance facilities demand. This Eaton speaker is engineered for fire alarm, mass notification and security monitoring systems, providing a wide 300–8000 Hz frequency range and 87 dB sound emission to reproduce voice messages and tones with exceptional clarity. Operating on 24V DC, the ELSPKW integrates easily into existing notification zones and is UL/ULC listed for fire alarm use — ensuring compatibility with Wheelock strobes and modern FACPs. Its low-profile white housing and FIRE lettering preserve building aesthetics while meeting stringent life-safety standards; RoHS compliance removes mercury and other hazardous substances. Installers benefit from a pre-wire/pre-test mounting plate and proven interoperability that speeds deployment in schools, hospitals, commercial buildings and critical infrastructure. Choose the Eaton Wheelock Eluxa speaker to strengthen your facility’s voice evacuation, security and monitoring capability—contact your Eaton distributor or order now to upgrade your notification system.
Features
- Delivers highly intelligible voice evacuation and alarm tones so occupants hear critical instructions clearly during emergencies
- Low-profile wall design preserves interior aesthetics while providing UL/ULC-listed fire alarm performance for security and life-safety systems
- 24V DC operation with industry-leading 300–8000 Hz frequency response and 87 dB output for crisp, reliable audio across paging, monitoring and mass notification applications
- Simplifies installation and commissioning with pre-wire/pre-test mounting plate and compatibility with common Wheelock notification appliances and FACP systems
- RoHS-compliant construction and 3-year limited warranty reduce environmental risk and support long-term facility reliability
| General Information | |
|---|---|
| Brand Name | Eaton |
| Manufacturer | Eaton Corporation |
| Product Line | Eluxa Indoor |
| Product Name | Wheelock High Fidelity Speaker |
| Product Type | Speaker |
| Product Model | ELSPKW |
| Manufacturer Part Number | ELSPKW |
| Technical Information | |
| Application/Usage | Indoor |
| Audio | |
| Maximum Frequency Response | 8 kHz |
| Minimum Frequency Response | 300Hz |
| Environmental Conditions | |
| Sound Emission | 87 dB |
| Others | |
| Model Number Replaces | E50H-W, E70-W, ET70-W |
| Physical Characteristics | |
| Color | White |
| Depth | 2.94" |
| Width | 4.6" |
| Height | 6.4" |
| Weight | 1.44 lb |
| Form Factor | Wall Mount |
| Power Description | |
| Input Voltage | 24V DC |
| Product Information | |
| Mount Type | Wall Mount |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Environmental Certification | RoHS |
