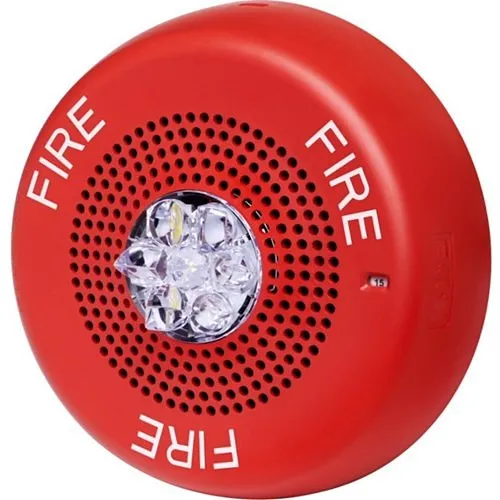

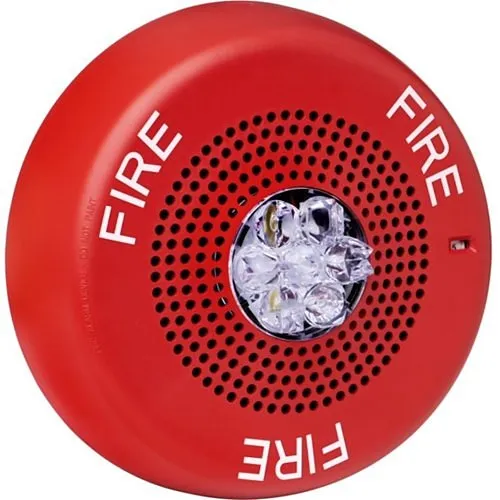

Eaton ELSPSTRC Wheelock Eluxa LED High Fidelity Speaker Strobe, Ceiling, FIRE Lettering, Clear Lens, 24VDC, 15/30/75/110/150/177 cd, Red
Image of 3
Key Features
- Delivers clear, high‑intelligibility voice evacuation and tones to improve occupant safety and reduce response time
- Low‑current LED strobe reduces power and wiring costs, allowing more devices per circuit and simpler installations
- Six field‑selectable candela settings and 24VDC operation provide installation flexibility for varied ceiling layouts and NFPA 72 compliance
- Compact, low‑profile ceiling design preserves interior aesthetics while providing robust fire alarm and mass notification capability
- Pre‑wire/pre‑test mounting plate and tool‑free settings speed installation and minimize downtime for security and facilities teams
Quick Specifications
- Product Model
- ELSPSTRC
- Brand Name
- Eaton
- Product Line
- Eluxa Indoor
- Product Name
- Wheelock Eluxa ELSPSTRC Speaker Strobe
Explore the details
Product information
ELSPSTRC
Overview
Designed for reliable emergency notification, the Eaton Eluxa ELSPSTRC speaker strobe combines high‑fidelity audio with low‑current LED visual signaling to protect occupants and simplify installation. As an Eaton speaker strobe, the ELSPSTRC delivers wide frequency response (300–8000 Hz) and 24VDC operation for crisp voice evacuation, tone signaling, and mass notification across commercial and institutional buildings. Field‑selectable candela settings (ceiling: 15/30/75/110/150/177 cd) let integrators tailor light output to room size and code requirements while the industry‑leading low current draw reduces power supply needs and wiring costs. The slim ceiling form factor and clear lens with “FIRE” lettering maintain interior aesthetics without sacrificing performance. UL/ULC listings and compliance with the 2016 NFPA 72 light pulse requirements ensure compatibility with modern fire alarm control panels and synchronized notification zones. Ideal for security, monitoring, and life‑safety applications, the ELSPSTRC is built for easy installation and reliable operation in emergency and surveillance‑adjacent systems. Specify the Eaton Eluxa ELSPSTRC for your next fire alarm or mass notification project to improve clarity, reduce installation cost, and meet code—contact your distributor to order or to discuss system integration.
Features
- Delivers clear, high‑intelligibility voice evacuation and tones to improve occupant safety and reduce response time
- Low‑current LED strobe reduces power and wiring costs, allowing more devices per circuit and simpler installations
- Six field‑selectable candela settings and 24VDC operation provide installation flexibility for varied ceiling layouts and NFPA 72 compliance
- Compact, low‑profile ceiling design preserves interior aesthetics while providing robust fire alarm and mass notification capability
- Pre‑wire/pre‑test mounting plate and tool‑free settings speed installation and minimize downtime for security and facilities teams
| General Information | |
|---|---|
| Brand Name | Eaton |
| Manufacturer | Eaton Corporation |
| Product Line | Eluxa Indoor |
| Product Name | Wheelock Eluxa ELSPSTRC Speaker Strobe |
| Product Type | Speaker Strobe |
| Product Model | ELSPSTRC |
| Manufacturer Part Number | ELSPSTRC |
| Technical Information | |
| Alarm Type | Audible, Visual |
| Application/Usage | Building, Emergency, Fire Alarm, Indoor, Mass Notification, Voice Evacuation |
| Connectivity Technology | Wired |
| Environmental Conditions | |
| Sound Emission | 87 dB |
| Others | |
| Model Number Replaces | E60-24MCC-FR, E60H-24MCC-FR, E90-24MCC-FR, LSPSTRC3 |
| Physical Characteristics | |
| Color | Red |
| Depth | 1.5" |
| Width | 4.6" |
| Height | 6.4" |
| Weight | 1.54 lb |
| Durability | UV Resistant |
| Lens Color | Clear |
| Form Factor | Ceiling Mount |
| Power Description | |
| Power Source | DC |
| Input Voltage | 24V DC |
| Product Information | |
| Shape | Round |
| Mount Type | Ceiling Mount |
| Print/Message | Fire |
| Bulb/Tube Type | LED |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
