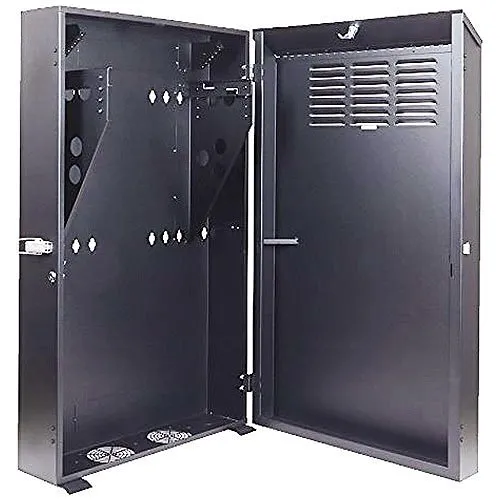

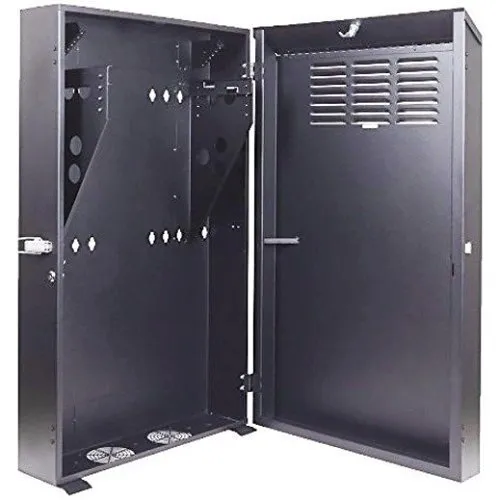

VMP ERVWC-5U36 Low Profile Vertical Equipment Wall Cabinet, 5U RMS
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Maximize space: vertical 5U design mounts equipment neatly on the wall to free floor space and simplify deployments
- Secure & durable: welded steel construction, locking reversible vented door and 150 lb load capacity protect sensitive security and networking gear
- Flexible installation: adjustable, reversible rails with M6/12-24 tapped holes and 36" usable rack depth fit patch panels, switches and DVRs
- Clean cable management: top and bottom 1" and 1.75" cable ports plus rear pass-throughs keep power and network runs organized for surveillance and monitoring systems
- Service-friendly access: slide-out 2U bracket for patch panels and separate hinged top/body let technicians work quickly without removing the entire cabinet
Quick Specifications
- Product Model
- ERVWC-5U36
- Brand Name
- Video Mount Products
- Product Line
- Cabinets
- Product Name
- 5U Vertical Equipment Wall Cabinet
Explore the details
Product information
ERVWC-5U36
Overview
Maximize wall-mounted equipment density and cable control with the Video Mount Products VMP ERVWC-5U36 low profile vertical equipment wall cabinet. Designed for security, surveillance and IT deployments, this 5U vertical rack cabinet organizes patch panels, switches, DVRs and monitoring appliances while saving valuable floor space. Built from formed steel with a durable black powder-coat and a 150 lb load rating, the cabinet secures critical gear while providing ventilation through a reversible vented front door.
Installation is simplified by adjustable, reversible rack rails tapped for M6 and 12-24 hardware and a 36" usable rack depth that accommodates deeper network or recording equipment. Top and bottom 1" and 1.75" cable ports and rear pass-throughs streamline cable management for networking and surveillance runs, and a slide-out 2U bracket makes patch panel servicing fast. Mount locations for optional fans further improve thermal management in tight closets.
Ideal for small server rooms, camera system enclosures and retail IT closets, the ERVWC-5U36 delivers a compact, secure solution for organized monitoring and network installations. Order now to streamline your next security or networking project.
Features
- Maximize space: vertical 5U design mounts equipment neatly on the wall to free floor space and simplify deployments
- Secure & durable: welded steel construction, locking reversible vented door and 150 lb load capacity protect sensitive security and networking gear
- Flexible installation: adjustable, reversible rails with M6/12-24 tapped holes and 36" usable rack depth fit patch panels, switches and DVRs
- Clean cable management: top and bottom 1" and 1.75" cable ports plus rear pass-throughs keep power and network runs organized for surveillance and monitoring systems
- Service-friendly access: slide-out 2U bracket for patch panels and separate hinged top/body let technicians work quickly without removing the entire cabinet
| General Information | |
|---|---|
| Brand Name | Video Mount Products |
| Manufacturer | Video Mount Products |
| Product Line | Cabinets |
| Product Name | 5U Vertical Equipment Wall Cabinet |
| Product Type | Rack Cabinet |
| Product Model | ERVWC-5U36 |
| Product Series | ERVWC |
| Application/Usage | Patch Panel |
| Manufacturer Part Number | ERVWC-5U36 |
| Physical Characteristics | |
| Color | Black |
| Depth | 9.80" |
| Width | 25.60" |
| Height | 42.80" |
| Weight | 55.00lb |
| Material | Steel |
| Rack Depth | 36.0" |
| Rack Width | 19.0" |
| Maximum Weight Capacity | 150.00lb |
| Product Information | |
| Mount Type | Wall Mount |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | Adjustable Mounting Rails, Cable Management, Key Lock, Reversible Front Door, Vented |
| Assembly Required | No |
