Lowell ES-62T 6" In-Ceiling Coaxial Speaker, 50W

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of YL-ES62T

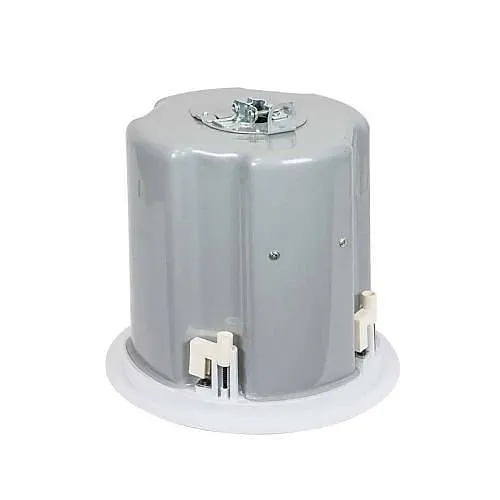

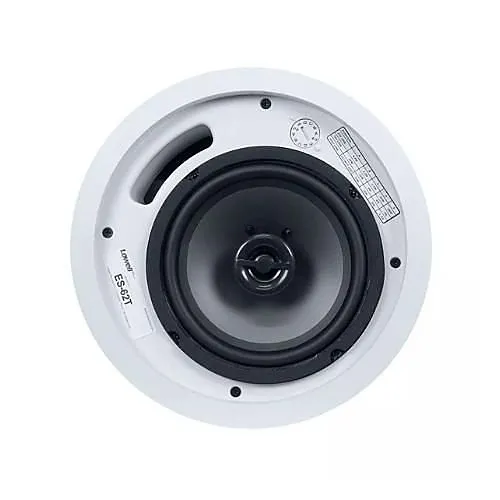

Product images for Lowell ES-62T 6" In-Ceiling Coaxial Speaker, 50W. 3 image(s) available. Click on image to view full size.

Key Features

  • Clear, intelligible speech and full-range music to improve paging, background music and security monitoring coverage
  • Built-in transformer taps (25/70/100V) with 8Ω bypass for seamless integration into distributed PA and surveillance audio systems
  • Wide dispersion from a 6.5" coaxial driver and PEI tweeter reduces required speaker count and lowers installation costs
  • Robust steel back-can, reversible mounting dogs and paint shield for fast, reliable installation in drywall, tile or wood ceilings
  • Low-profile press-fit grille with scrim for a discreet, tamper-resistant finish suited to retail, commercial and institutional environments

Quick Specifications

Product Model
ES-62T
Brand Name
Lowell Manufacturing
Product Name
ES-62T In-Ceiling Speaker
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Deliver consistent, high-intelligibility sound for paging, background music and security monitoring with the Lowell Manufacturing ES-62T in-ceiling coaxial speaker. Designed for commercial, retail, institutional and residential installations, this pro speaker blends clear speech reproduction with full-frequency music response so messages are heard and environments sound professional. The ES-62T pairs a 6.5" coaxial driver and PEI tweeter with an acoustic lens to reach crisp highs and extended lows (64 Hz–20 kHz) while providing 50W RMS power handling and 89 dB sensitivity for reliable coverage. A built-in 32W transformer with taps for 25V, 70V or 100V systems — plus an 8Ω transformer bypass — streamlines integration into distributed paging and surveillance audio networks. Durable construction, reversible mounting dogs and a low-profile grille speed installation and concealment in ceilings up to 2-1/8" thick. Ideal for voice evacuation, security paging and background music in shops, schools, warehouses and healthcare facilities. Add the ES-62T to your next audio or security project for dependable, professional sound — contact us for volume/layout guidance or order now.

Features

  • Clear, intelligible speech and full-range music to improve paging, background music and security monitoring coverage
  • Built-in transformer taps (25/70/100V) with 8Ω bypass for seamless integration into distributed PA and surveillance audio systems
  • Wide dispersion from a 6.5" coaxial driver and PEI tweeter reduces required speaker count and lowers installation costs
  • Robust steel back-can, reversible mounting dogs and paint shield for fast, reliable installation in drywall, tile or wood ceilings
  • Low-profile press-fit grille with scrim for a discreet, tamper-resistant finish suited to retail, commercial and institutional environments
General Information
Brand Name Lowell Manufacturing
Manufacturer Lowell Manufacturing
Product Name ES-62T In-Ceiling Speaker
Product Type Speaker
Product Model ES-62T
Product Series ES
Manufacturer Part Number ES62T
Technical Information
Material PEI
Impedance 8 ohms
Sensitivity 89dB
Application/Usage Commercial, Industrial, Institutional, Music, Residential, Retail
Audio
RMS Output Power 50W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 64Hz
Physical Characteristics
Color Gray
Depth 10.16"
Weight 7.50lb
Form Factor Ceiling Mount, In-ceiling, Recessed Mount, Wall Mount
Enclosure Type Ported
Product Information
Diameter 9.8"
Mount Type Ceiling Mount, In-Ceiling, Recessed Mount, Wall Mount
Miscellaneous
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification RoHS
