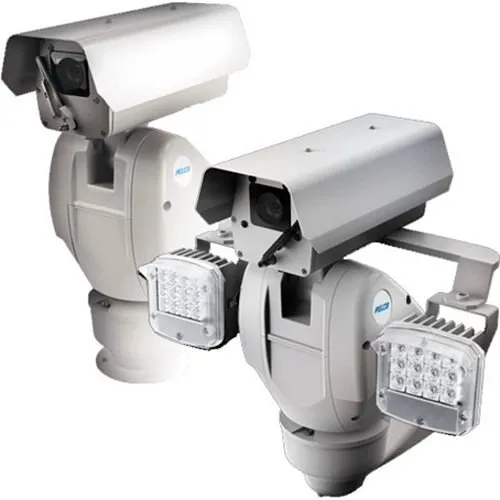

Pelco ES6230-12P Espirit Enhanced Series 2MP Outdoor PTZ Box IP Camera, Pressurized with Wiper, 4.3-129mm Lens
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 2
Key Features
- Rugged, pressurized housing with integrated wiper reduces downtime and keeps optics clear in rain, fog and dust for reliable outdoor surveillance
- 30x optical zoom (4.3–129mm) and 2MP Full HD imaging enable long-range identification and situational awareness across large perimeters
- Advanced low-light performance (SureVision technology, down to 0.03 lux) and 130 dB WDR deliver usable video in challenging lighting and glare conditions
- Fast, precise PTZ positioning with continuous 360° pan and ±0.1° preset accuracy for rapid tracking and automated tours
- Built for security deployments: IP66/67 ingress protection, IK impact resistance, NDAA compliance and ONVIF support for easy integration
- Flexible power and mounting options (HPoE, 24 VAC, 48 VDC, multiple mounts) simplify installation and reduce infrastructure costs
Quick Specifications
- Product Model
- ES6230-12P
- Brand Name
- Pelco by Motorola Solutions
- Product Name
- Espirit Enhanced ES6230-12P Network Camera
- Product Type
- Network Camera
Frequently Bought Together
Pelco ES6230-12P Espirit Enhanced Series 2MP Outdoor PTZ Box IP Camera, Pressurized with Wiper, 4.3-129mm Lens
$4,348.82
4 items selected
Total: $6,108.98
Product Information Tabs
Overview
For mission-critical outdoor security and perimeter monitoring, the Pelco by Motorola Solutions ES6230-12P PTZ box IP camera delivers dependable, long-range surveillance in the harshest environments. This pressurized, weatherproof camera with an integrated wiper keeps the lens clear while the 30x optical zoom (4.3–129mm) and 2MP Full HD imaging provide the clarity needed to detect and identify targets at distance. SureVision 3.0 with 130 dB WDR and low-light sensitivity (down to 0.03 lux) maintains usable video in glare, fog, and nighttime conditions—reducing false alerts and improving operator confidence. Fast, continuous 360° pan, precise preset accuracy and built-in analytics support automated tracking, tours and integration with VMS systems for proactive monitoring. Built to meet NDAA and industry standards with IP66/IP67 protection, this PTZ box camera minimizes maintenance and integrates easily via ONVIF and multiple power options. Ideal for airports, ports, correctional facilities, and critical infrastructure—deploy the ES6230-12P for resilient, high-performance security monitoring and enhanced situational awareness.
Features
- Rugged, pressurized housing with integrated wiper reduces downtime and keeps optics clear in rain, fog and dust for reliable outdoor surveillance
- 30x optical zoom (4.3–129mm) and 2MP Full HD imaging enable long-range identification and situational awareness across large perimeters
- Advanced low-light performance (SureVision technology, down to 0.03 lux) and 130 dB WDR deliver usable video in challenging lighting and glare conditions
- Fast, precise PTZ positioning with continuous 360° pan and ±0.1° preset accuracy for rapid tracking and automated tours
- Built for security deployments: IP66/67 ingress protection, IK impact resistance, NDAA compliance and ONVIF support for easy integration
- Flexible power and mounting options (HPoE, 24 VAC, 48 VDC, multiple mounts) simplify installation and reduce infrastructure costs
| General Information | |
|---|---|
| Brand Name | Pelco by Motorola Solutions |
| Manufacturer | Motorola Solutions, Inc. |
| Product Name | Espirit Enhanced ES6230-12P Network Camera |
| Product Type | Network Camera |
| Product Model | ES6230-12P |
| Product Series | Esprit Enhanced |
| Manufacturer Part Number | ES6230-12P |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 30x |
| Field of View | Horizontal |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.3mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 1 |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -49°F (-45°C) |
| Exposure | |
| Longest Shutter Speed | 1/1 Second |
| Shortest Shutter Speed | 1/10000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.3-129mm |
| Lens Included | Yes |
| Minimum Aperture | f/4.7 |
| Maximum Focal Length | 129mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Gray |
| Weight | 29.89lb |
| Durability | Dustproof, Fog Resistant, Impact Resistant, Waterproof, Weather Resistant |
| Power Description | |
| Input Voltage | 24V AC, 48V DC |
| Product Information | |
| Mount Type | Box Mount, Corner Mount, Pedestal Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | 3D Noise Filtering, Alarm Triggering, Auto Gain Control, Auto Tracking, Back Light Compensation (BLC), Day/Night, Defog, Electronic Image Stabilization, Motion Detection, Password Protection, SD Card Local Storage, Wide Dynamic Range, Wiper |
| Indoor/Outdoor | Indoor, Outdoor |
| Country of Origin | CN |
| Impact Protection Rating | IK06, IK07, IK10 |
