Pelco ESCE1-2X40-RLU 2MP Esprit Compact PTZ Camera with 40X Lens, 24VAC/VDC

SKU: ESCE1-2X40-RLU Pelco by Motorola Solutions

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

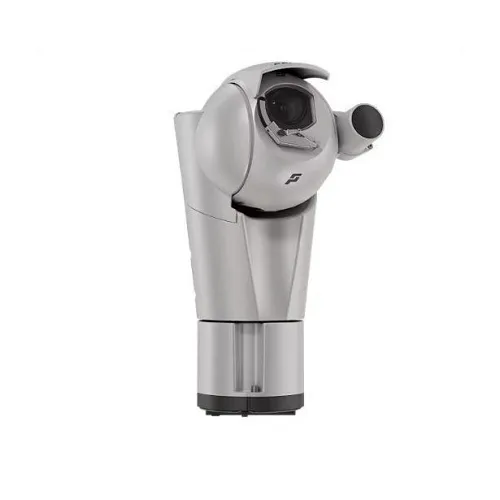

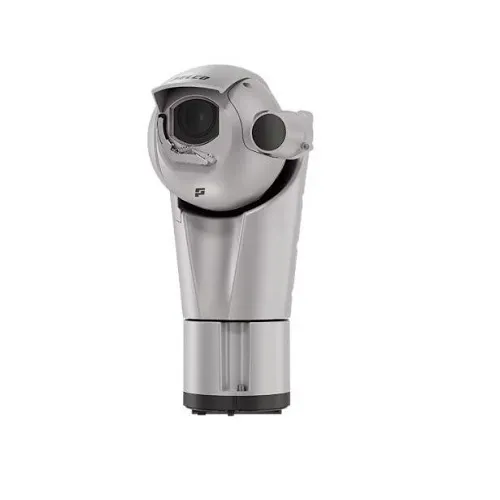

Image of PE-ESCE12X40
Product images for Pelco ESCE1-2X40-RLU 2MP Esprit Compact PTZ Camera with 40X Lens, 24VAC/VDC. 3 image(s) available. Click on image to view full size.

Key Features

  • Mission-critical outdoor reliability (IP67, IK10 and MIL‑STD tested) to keep surveillance systems operational in extreme weather and vibration
  • Long-range identification with 40x optical zoom and clear 2MP imaging plus adaptive IR up to 165' for effective day/night monitoring
  • Flexible power and deployment options: built-in PoE (802.3af) or 24VAC/VDC input with pendant or pedestal mounting to fit varied site needs
  • Smart analytics and True WDR improve detection in challenging lighting and reduce false alerts for streamlined security operations
  • Edge storage support (microSD up to 256GB) and a 5-year limited warranty help minimize downtime and total cost of ownership

Quick Specifications

Product Model
ESCE1-2X40-RLU
Brand Name
Pelco by Motorola Solutions
Manufacturer Part Number
ESCE1-2X40-RLU
View Full Technical Specifications

Frequently Bought Together

This Item
Pelco ESCE1-2X40-RLU 2MP Esprit Compact PTZ Camera with 40X Lens, 24VAC/VDC

Pelco ESCE1-2X40-RLU 2MP Esprit Compact PTZ Camera with 40X Lens, 24VAC/VDC

$4,001.74

Frequently Bought Together (3 items)

4 items selected

Total: $5,761.90

Product Information Tabs

Overview

Built for continuous, mission-critical outdoor surveillance, the Pelco by Motorola Solutions Esprit Compact PTZ camera delivers reliable long-range monitoring and identification where it matters most. This compact PTZ camera pairs a powerful 40x optical zoom with crisp 2MP resolution to capture actionable detail at distance, while adaptive IR illumination extends night coverage up to 165 feet. Ruggedized to IP67 and IK10 standards and tested to military shock/vibration specifications, the ESCE1-2X40-RLU withstands harsh environments so security teams can maintain uninterrupted video monitoring.

Deployment is simplified with flexible power options — built-in PoE (IEEE 802.3af) plus 24VAC/VDC input — and pendant or pedestal mounting choices. Advanced capabilities like True WDR, Pelco Smart Analytics and on-board microSD storage (up to 256GB) reduce false alarms and enable efficient edge recording. Ideal for perimeter security, transportation hubs, critical infrastructure and large-campus monitoring, the Esprit Compact PTZ lowers operational risk and boosts situational awareness. Contact sales to specify, demo, or order this resilient PTZ solution for your next security project.

Features

  • Mission-critical outdoor reliability (IP67, IK10 and MIL‑STD tested) to keep surveillance systems operational in extreme weather and vibration
  • Long-range identification with 40x optical zoom and clear 2MP imaging plus adaptive IR up to 165' for effective day/night monitoring
  • Flexible power and deployment options: built-in PoE (802.3af) or 24VAC/VDC input with pendant or pedestal mounting to fit varied site needs
  • Smart analytics and True WDR improve detection in challenging lighting and reduce false alerts for streamlined security operations
  • Edge storage support (microSD up to 256GB) and a 5-year limited warranty help minimize downtime and total cost of ownership
General Information
Brand Name Pelco by Motorola Solutions
Manufacturer Part Number ESCE1-2X40-RLU
Technical Information
Night Vision Yes
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Maximum Frame Rate 60 fps
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 384 x 216
Environmental Conditions
Operating Humidity 95%
Maximum Operating Temperature 149°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.02 lux
Longest Shutter Speed 1/1 Second
Shortest Shutter Speed 1/10000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Lens Included Yes
Physical Characteristics
Height 0.98"
Power Description
Input Voltage 24V AC/DC
Product Information
Mount Type Pendant Mount, Pendestal Mount
Storage
Storage Type Memory Card
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 2MP resolution options with 40x zoom, Built-in Wiper, Pelco Smart Analytics, Powered By Motorola Solutions, Tested to MIL-STD-167-?1A and 810G for extreme shock and vibration tolerance, Tested to MIL-STD-167-?1A and 810G for extreme shock and vibration tolerance, Wide Dynamic Range (WDR)
Indoor/Outdoor Outdoor
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification CE, RoHS, UL
