Pelco ESCE1-8X36-RLU 8MP Esprit Compact PTZ Camera, 4.4-88mm Varifocal Lens, 36x Optical Zoom, IP66/67/68

SKU: ESCE1-8X36-RLU Pelco by Motorola Solutions

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

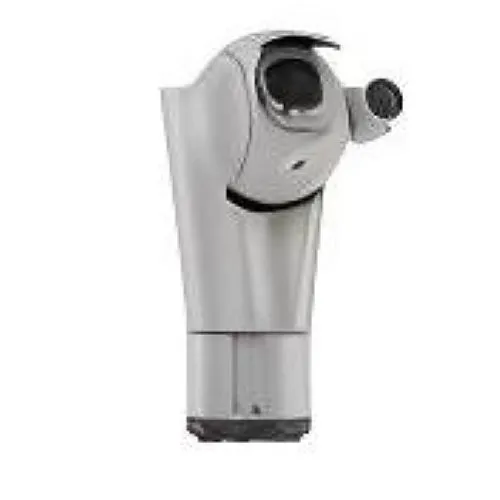

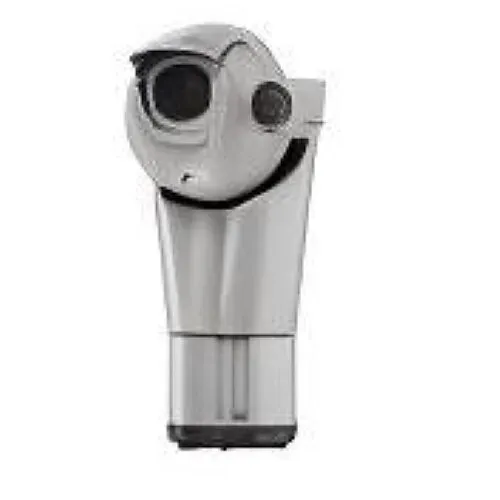

Image of PE-ES8X36RLU
Product images for Pelco ESCE1-8X36-RLU 8MP Esprit Compact PTZ Camera, 4.4-88mm Varifocal Lens, 36x Optical Zoom, IP66/67/68. 3 image(s) available. Click on image to view full size.

Key Features

  • Deliver mission-critical surveillance with clear 8MP imaging and 36x optical zoom for long-range identification and tracking
  • Rugged, IP66/67/68 and IK10-rated housing keeps monitoring online through extreme weather, shock and vibration
  • Built-in Smart Analytics reduces false alarms and enables automated object classification and zone tracking for faster response
  • ONVIF Profile S/G/T and Pelco/VMS integration streamline deployment with existing network video systems and lower integration time
  • Bandwidth-optimized compression and local storage options reduce ongoing storage costs; backed by a 5-year warranty and 24/7 support

Quick Specifications

Product Model
ESCE1-8X36-RLU
Brand Name
Pelco by Motorola Solutions
Product Name
ESCE1-8X36-RLU PTZ Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Designed for perimeter, port and industrial monitoring, the Pelco by Motorola Solutions Esprit Compact PTZ camera delivers reliable, high-resolution security when it matters most. This hardened PTZ security camera combines 8MP imaging with a 4.4–88mm varifocal lens and 36x optical zoom so operators can identify license plates, faces and distant activity with confidence. Built to withstand extreme conditions, the Esprit Compact carries IP66/67/68 ingress ratings and IK10 impact protection, plus MIL-STD shock and vibration tolerance—ensuring continuous surveillance in harsh outdoor environments.

Operational efficiency is improved through built-in Smart Analytics for object classification and automatic tracking, ONVIF Profile S/G/T compatibility for seamless VMS integration, and region-based compression to reduce bandwidth and storage costs. NDAA-compliant and supported by Pelco’s industry-leading 5-year warranty and 24/7 technical assistance, this PTZ camera lowers total cost of ownership while increasing situational awareness. Ideal for city, port, industrial and enterprise security deployments—contact your Pelco representative or request a quote to add resilient, high-performance monitoring to your security solution.

Features

  • Deliver mission-critical surveillance with clear 8MP imaging and 36x optical zoom for long-range identification and tracking
  • Rugged, IP66/67/68 and IK10-rated housing keeps monitoring online through extreme weather, shock and vibration
  • Built-in Smart Analytics reduces false alarms and enables automated object classification and zone tracking for faster response
  • ONVIF Profile S/G/T and Pelco/VMS integration streamline deployment with existing network video systems and lower integration time
  • Bandwidth-optimized compression and local storage options reduce ongoing storage costs; backed by a 5-year warranty and 24/7 support
General Information
Brand Name Pelco by Motorola Solutions
Product Name ESCE1-8X36-RLU PTZ Camera
Product Type Network Camera
Manufacturer Part Number ESCE1-8X36-RLU
Technical Information
Night Vision Yes
Optical Zoom 36x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/3.8
Maximum Frame Rate 30fps
Minimum Focal Length 4.4mm
Connectivity Technology Wired
Field of View (Vertical) 1.3°
Field of View (Horizontal) 2.2°
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP66, IP67
Environmental Conditions
Operating Humidity 5-95%
Maximum Operating Temperature 149°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.3 lux
Longest Shutter Speed 1/1 Second
Shortest Shutter Speed 1/10000 Second
Lens
Focal Length 4.4-88mm
Lens Included Yes
Maximum Focal Length 88mm
Physical Characteristics
Color White
Height 16"
Weight 15.6lb
Durability Dust Resistant, Impact Resistant, Waterproof
Power Description
Input Voltage 24V DC
Product Information
Diameter 9.45"
Mount Type Pedestal Mount, Pendant Mount
Storage
Storage Type Memory Card
Warranty
Limited Warranty 5-Year
Miscellaneous
Indoor/Outdoor Outdoor
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS, UL
