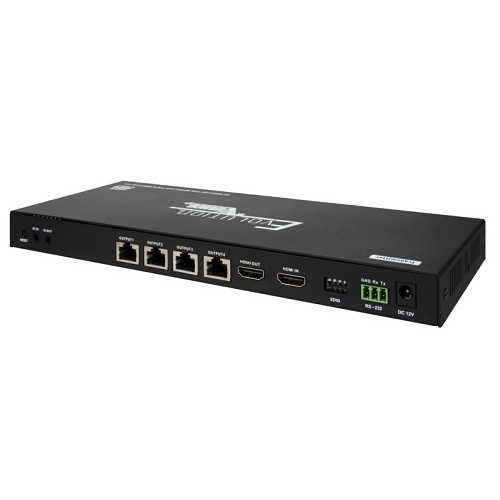

Evolution EV4K7014 4K 1x4 HDMI Splitter Over Cat6 Cable with HDMI Loop-out

Streamline multi-display distribution for security, monitoring, digital signage and corporate AV with the Evolution by Vanco EV4K7014 HDMI Splitter. This 1x4 HDMI splitter over Cat6 sends a single 4K HDR source to four remote displays using a single Cat6 run, and ships as a complete kit with four PoE receivers to power remote units without extra power supplies. Achieve true 4K@60Hz with 4:4:4 chroma and HDR10 up to 230' (1080p up to 330') while maintaining sub-30ms latency—ideal for live surveillance feeds and control-room monitoring. A local HDMI loop-out lets you keep a source display on-site or cascade to a larger distribution matrix, while auto/manual EDID, bi-directional IR (20–60 kHz) and included IR accessories ensure smooth device control across the network. The receivers also provide a digital audio breakout for localized sound or recording. Designed for integrators and IT teams, the EV4K7014 reduces cabling complexity, speeds installation, and maintains image fidelity across long runs. Deploy it in security operations, retail, hospitality, or corporate environments—contact your reseller to specify and order today.

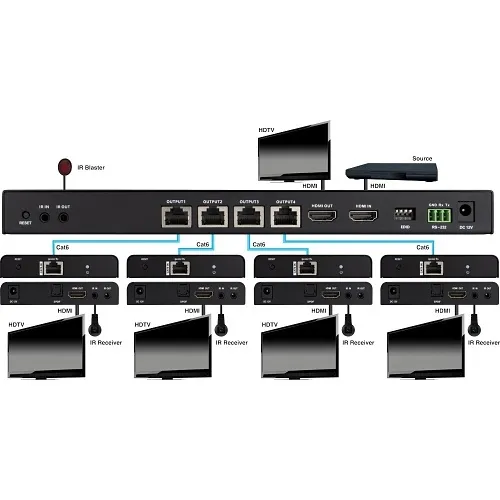

• Distribute one 4K@60Hz HDR source to four remote displays over a single Cat6 cable, simplifying AV and surveillance deployments

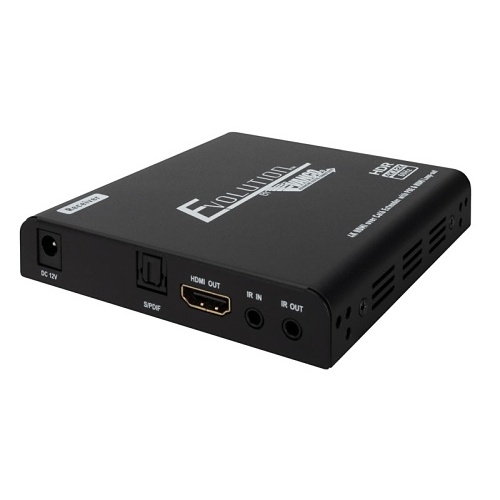

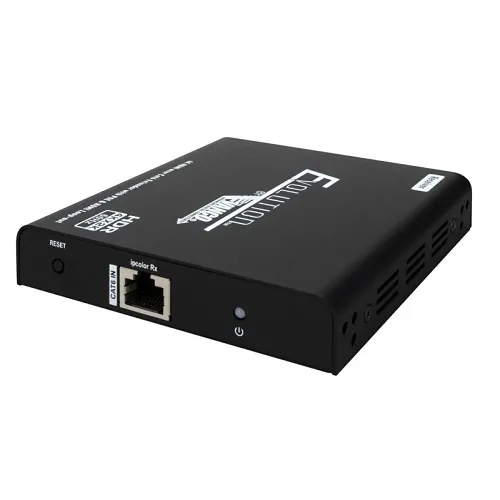

• Includes four PoE receivers so remote units power up without extra adapters, reducing installation time and outlet requirements
• HDMI loop-out for a local display or cascading to expand a larger video distribution system
• Reliable long-distance performance: 4K at 60Hz up to 230' (1080p to 330') with latency under 30ms for smooth monitoring and digital signage
• Bi-directional IR and included IR accessories enable source control from each remote location; digital audio breakout supports localized audio extraction
