Evolution EVEXKVM1 HMDI Extender with KVM and PoE
Image of 6
Key Features
- Extend HDMI, audio and USB KVM up to 164'/50m over a single Cat5e/6 cable to centralize devices and simplify installations
- PoE-enabled design powers either TX or RX over the same cable to eliminate extra power supplies and reduce rack clutter
- Built-in USB 2.0 KVM lets technicians control NVR/DVRs, PCs or NAS systems remotely with keyboard and mouse for faster system management
- Auto EDID and auto EQ provide plug-and-play compatibility and reliable 1080p60 video without manual tuning
- Supports full audio formats and HDCP compliance for true-to-source audio/video in security and surveillance deployments
- Low-cost, low-profile units reduce cabling and installation time—ideal for monitoring rooms, control centers, and remote display setups
Quick Specifications
- Product Model
- EVEXKVM1
- Brand Name
- Evolution by Vanco
- Product Line
- Evolution
- Product Name
- Evolution HDMI Extender with KVM and PoE
Explore the details
Product information
EVEXKVM1
Overview

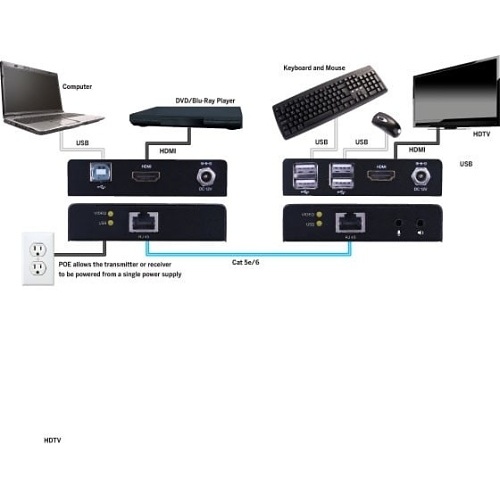

Centralize monitoring and control without adding cables — the Evolution by Vanco EVEXKVM1 HDMI Extender with KVM and PoE extends HDMI video, multichannel audio and full USB KVM control up to 164'/50m over a single Cat5e/6 run. Designed for security and surveillance professionals, this HDMI extender with KVM lets you operate NVRs, DVRs, PCs and appliances remotely using USB 2.0 keyboard/mouse control while preserving 1920x1080 @ 60Hz video quality. Power over Ethernet (PoE) capability eliminates the need for a second power brick at one end, simplifying installs in racks, control rooms, and field monitoring stations. Auto EDID management and automatic equalization remove compatibility headaches and deliver consistent, HDCP-compliant playback with support for advanced audio formats. Compact, rack-friendly enclosures and a plug-and-play setup reduce downtime and installation costs. Deploy the EVEXKVM1 to streamline surveillance, security monitoring, and AV distribution — order today to improve remote access and simplify system maintenance.
Features
- Extend HDMI, audio and USB KVM up to 164'/50m over a single Cat5e/6 cable to centralize devices and simplify installations
- PoE-enabled design powers either TX or RX over the same cable to eliminate extra power supplies and reduce rack clutter
- Built-in USB 2.0 KVM lets technicians control NVR/DVRs, PCs or NAS systems remotely with keyboard and mouse for faster system management
- Auto EDID and auto EQ provide plug-and-play compatibility and reliable 1080p60 video without manual tuning
- Supports full audio formats and HDCP compliance for true-to-source audio/video in security and surveillance deployments
- Low-cost, low-profile units reduce cabling and installation time—ideal for monitoring rooms, control centers, and remote display setups
| General Information | |
|---|---|
| Brand Name | Evolution by Vanco |
| Manufacturer | Vanco International, Inc |
| Product Line | Evolution |
| Product Name | Evolution HDMI Extender with KVM and PoE |
| Product Type | KVM Console, KVM Extender |
| Product Model | EVEXKVM1 |
| Country of Origin | TW |
| Manufacturer Part Number | EVEXKVM1 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 164' |
| Number of Computers Supported | 1 |
| Number of Remote Users Supported | 1 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Number of USB Ports | 5 |
| Number of HDMI Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Physical Characteristics | |
| Color | Black |
| Depth | 3.6" |
| Height | 0.8" |
| Dimensions | 3.25" x .8" x 3.6" |
| Power Description | |
| Input Voltage | 12V DC |
| Warranty | |
| Limited Warranty | 2-Year |
