Electro-Voice EVID-PC6.2 6.5" 2-Way 100W Premium Ceiling Speaker System

SKU: EVID-PC62 MPN: EVID-PC6.2 Electro-Voice
Electro-Voice Evid Pc6.2 2-Way Ceiling Mountable Speaker - White

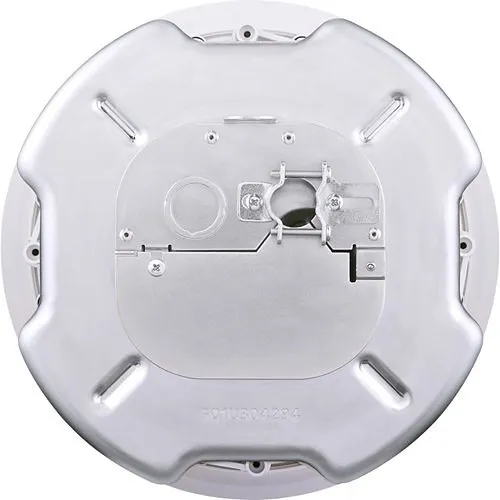

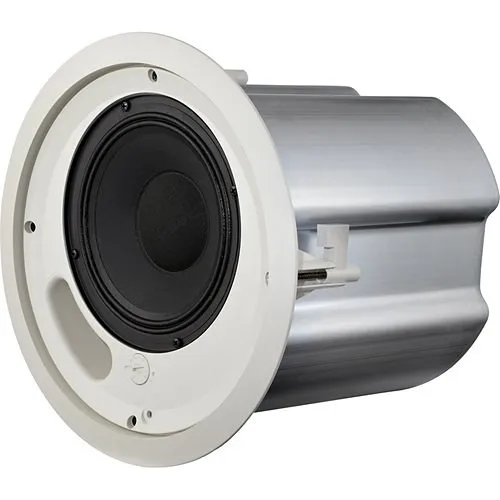

Product images for Electro-Voice EVID-PC6.2 6.5" 2-Way 100W Premium Ceiling Speaker System. 3 image(s) available. Click on image to view full size.

Key Features

  • Even, intelligible coverage for paging and background music thanks to ultra-wide HF dispersion and a 6.5" high-excursion woofer
  • Quick, secure ceiling installation with four-point clamp, integrated mounting legs and detachable Phoenix-style connectors
  • Flexible system integration: 100W handling with 8Ω / 70V / 100V tap selector for distributed audio and security paging
  • Durable, code-ready construction: reinforced steel can, ABS baffle and compliance with UL 1480 and 2043 for plenum installations
  • Low-profile white design that blends into retail, transit, corporate and surveillance monitoring environments

Quick Specifications

Product Model
EVID-PC6.2
Brand Name
Electro-Voice
Product Line
Commercial Speaker Systems
Product Name
EVID PC6.2 Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Deliver clear, reliable audio for paging, background music and security alerts with the Electro-Voice EVID-PC6.2 6.5" ceiling speaker. Designed for commercial installations, this premium two-way ceiling speaker provides 100W power handling and a wide 50Hz-20kHz frequency range to ensure speech intelligibility and full-range program audio. The coaxial compression driver and high-excursion woofer produce even coverage and extended low-end response, making it ideal for conference rooms, retail, transportation hubs and surveillance monitoring areas where clear communication is critical.

Installations are faster and cleaner with the four-point clamp system, integrated mounting legs and detachable Phoenix-style pass-thru connectors. The EVID-PC6.2 supports 8Ω and 70V/100V distributed line operation for flexible system design, and its reinforced steel can and UL-rated ABS baffle meet commercial safety requirements. Whether you’re specifying speakers for a security paging system, a public-address installation, or a combined BGM and monitoring application, the EVID-PC6.2 delivers dependable performance. Add the Electro-Voice EVID-PC6.2 to your next commercial audio or security project.

Features

  • Even, intelligible coverage for paging and background music thanks to ultra-wide HF dispersion and a 6.5" high-excursion woofer
  • Quick, secure ceiling installation with four-point clamp, integrated mounting legs and detachable Phoenix-style connectors
  • Flexible system integration: 100W handling with 8Ω / 70V / 100V tap selector for distributed audio and security paging
  • Durable, code-ready construction: reinforced steel can, ABS baffle and compliance with UL 1480 and 2043 for plenum installations
  • Low-profile white design that blends into retail, transit, corporate and surveillance monitoring environments
General Information
Brand Name Electro-Voice
Manufacturer The Bosch Group
Product Line Commercial Speaker Systems
Product Name EVID PC6.2 Speaker
Product Type Pendant Speaker
Product Model EVID-PC6.2
Product Series EVID-P
Packaged Quantity 2
Manufacturer Part Number EVID-PC6.2
Technical Information
Sensitivity 87dB
Speaker Size 6.5"
Crossover Type 2-way
Audio
Maximum Frequency Response 20 kHz
Minimum Frequency Response 50Hz
Environmental Conditions
Sound Emission 113 dB, 114 dB
Physical Characteristics
Size 6"
Color White
Product Information
Diameter 6"
Mount Type Ceiling
Miscellaneous
Country of Origin CN
