Evolution EVOIPTX1 4K EVO-IP Transmitter
Image of 7
Key Features
- Scalable IP video distribution: supports over 1000 transmitters and receivers for large AV, security and surveillance deployments
- True 4K60 4:4:4 HDR10 video: preserves color fidelity and detail for monitoring, digital signage and video walls
- Remote management & automation: cloud connectivity, iOS/Android app and scheduling enable remote troubleshooting and hands-free switching
- Flexible installation: PoE or included power supply plus IP-less dip-switch option for fast, reliable integration

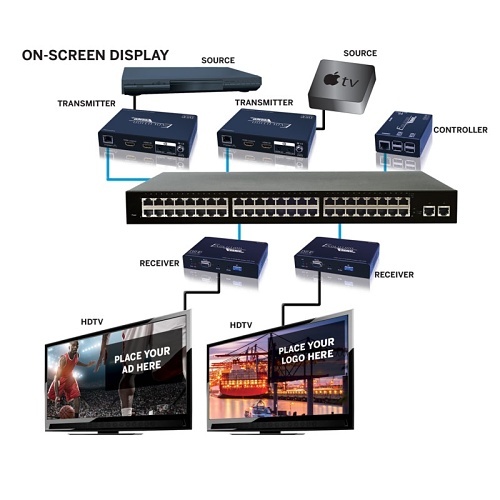

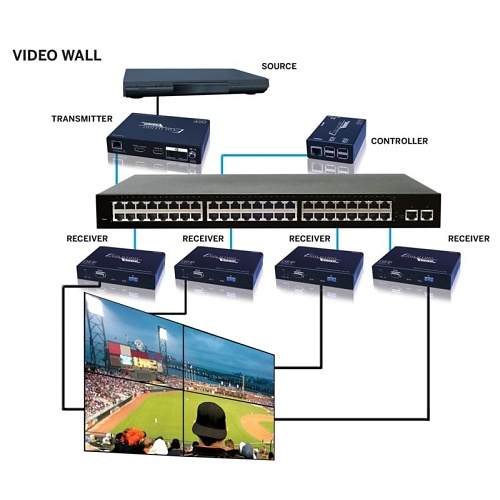

- Advanced control and customization: video wall mode (up to 25 displays), OSD overlays, customizable labels and analog/digital audio extraction
Quick Specifications
- Product Model
- EVOIPTX1
- Brand Name
- Evolution by Vanco
- Product Line
- Evolution
- Product Name
- EVO-IP Transmitter
Frequently Bought Together
Evolution EVOIPTX1 4K EVO-IP Transmitter
$603.68
11 items selected
Total: $12,747.56
Explore the details
Product information
EVOIPTX1
Overview
Deliver reliable, enterprise-grade AV distribution for security, surveillance and digital signage with the Evolution by Vanco EVOIPTX1 4K EVO-IP Transmitter. This EVO-IP transmitter is designed for integrators and IT teams who need scalable, low-latency video distribution across large facilities — from control rooms and campuses to retail and hospitality. It supports pristine 4K@60Hz 4:4:4 chroma and HDR10 passthrough to ensure accurate color and detail for monitoring and evidence-grade surveillance. The system scales to over 1,000 endpoints and runs over standard Category 6 cabling up to 330' (100 m), with Power over Ethernet (PoE) or local power for flexible deployments. Cloud connectivity, an intuitive GUI and mobile apps let you automate switching, schedule events and perform remote troubleshooting — reducing site visits and downtime. Built-in features such as a 25-display video wall mode, OSD overlays, and analog/digital audio extraction make the EVOIPTX1 ideal for command centers and distributed AV systems. Contact your Evolution by Vanco dealer or add the EVOIPTX1 to your project spec to streamline large-scale monitoring and AV distribution.
Features
- Scalable IP video distribution: supports over 1000 transmitters and receivers for large AV, security and surveillance deployments
- True 4K60 4:4:4 HDR10 video: preserves color fidelity and detail for monitoring, digital signage and video walls
- Remote management & automation: cloud connectivity, iOS/Android app and scheduling enable remote troubleshooting and hands-free switching
- Flexible installation: PoE or included power supply plus IP-less dip-switch option for fast, reliable integration
- Advanced control and customization: video wall mode (up to 25 displays), OSD overlays, customizable labels and analog/digital audio extraction
| General Information | |
|---|---|
| Brand Name | Evolution by Vanco |
| Manufacturer | Vanco International, Inc |
| Product Line | Evolution |
| Product Name | EVO-IP Transmitter |
| Product Type | Video Extender Transmitter |
| Product Model | EVOIPTX1 |
| Manufacturer Part Number | EVOIPTX1 |
| Technical Information | |
| Cable Type | Category 6 |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 330' |
| Number of Input Devices Supported | 1 |
| Certifications | |
| TAA Compliant | Yes |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Width | 4.38" |
| Height | 1.13" |
| Weight | 0.8lb |
| Form Factor | Wall Mount |
| Product Information | |
| Length | 5.5" |
| Mount Type | Wall Mount |
| Video | |
| Graphics Modes | 4K |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Country of Origin | TW |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- EVOIPTX1
- Manufacturer part:
- EVOIPTX1
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
Read return eligibility and exclusionsEvolution EVOIPTX1 4K EVO-IP Transmitter
EVOIPTX1
