EtherWAN EX19162A Unmanaged 16-Port Gigabit PoE Ethernet Switch, 2-Port SFP, 2-Port RJ45

SKU: EX19162A EtherWAN

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

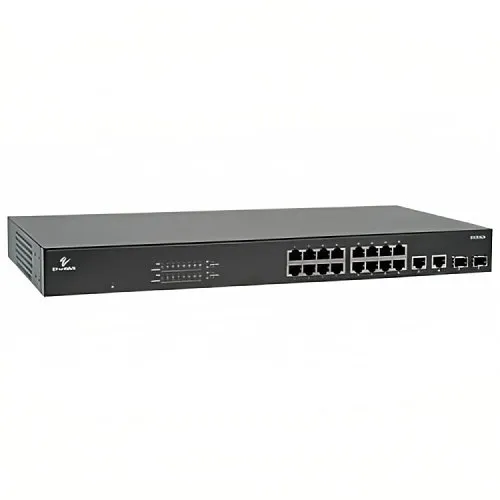

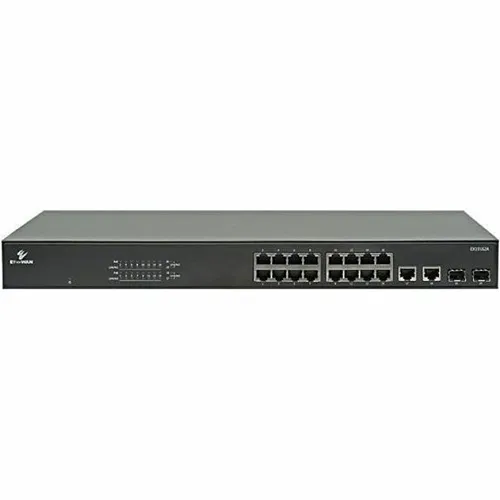

Image of ET-EX19162A
Product images for EtherWAN EX19162A Unmanaged 16-Port Gigabit PoE Ethernet Switch, 2-Port SFP, 2-Port RJ45. 3 image(s) available. Click on image to view full size.

Key Features

  • Simplify security deployments with 16 Gigabit PoE+ ports that power cameras and access control devices over a single cable
  • Deliver reliable bandwidth for 4K surveillance and high‑resolution monitoring with full wire‑speed Gigabit ports
  • 250W total PoE budget supports multiple high‑power devices without additional injectors or power hubs
  • Flexible network uplinks via 2 SFP and 2 RJ45 ports for long‑distance fiber runs or high‑speed aggregation
  • Rugged, rack‑mount metal design and a 3‑year warranty ensure dependable 24/7 operation in commercial and enterprise environments

Quick Specifications

Product Model
EX19162A
Brand Name
EtherWAN
Product Name
Unmanaged 16-Port Gigabit PoE with 2-Port SFP and 2-Port RJ45 Ethernet Switch
Product Type
Ethernet Switch
View Full Technical Specifications

Explore the details

Product information

EX19162A

Overview

Built for security and surveillance environments, the EtherWAN EX19162A unmanaged 16‑port Gigabit PoE Ethernet switch combines power and performance to simplify IP camera and monitoring installations. This EtherWAN network switch provides 16 10/100/1000 PoE+ ports and a 250W PoE budget so you can power multiple 4K cameras, access control panels, and other edge devices from a single unit without extra power infrastructure. Two SFP and two RJ45 uplinks deliver flexible fiber or copper aggregation for long‑distance links and resilient backbone connections. As an unmanaged Layer 2 switch, the EX19162A offers plug‑and‑play simplicity for quick deployment while delivering full wire‑speed throughput for high‑bandwidth surveillance streams. Rack‑mountable and built with a durable metal chassis, it’s ideal for small businesses, retail, campus, and critical infrastructure security projects. Backed by a 3‑year limited warranty, the EX19162A is a practical choice for reliable monitoring and security network expansion. Add this EtherWAN Gigabit PoE switch to your next surveillance or monitoring deployment to reduce complexity and power costs—contact sales or order now.

Features

  • Simplify security deployments with 16 Gigabit PoE+ ports that power cameras and access control devices over a single cable
  • Deliver reliable bandwidth for 4K surveillance and high‑resolution monitoring with full wire‑speed Gigabit ports
  • 250W total PoE budget supports multiple high‑power devices without additional injectors or power hubs
  • Flexible network uplinks via 2 SFP and 2 RJ45 ports for long‑distance fiber runs or high‑speed aggregation
  • Rugged, rack‑mount metal design and a 3‑year warranty ensure dependable 24/7 operation in commercial and enterprise environments
35 of 35 specifications
Technical specifications for EtherWAN EX19162A Unmanaged 16-Port Gigabit PoE Ethernet Switch, 2-Port SFP, 2-Port RJ45
General Information
Brand Name EtherWAN
Manufacturer EtherWAN Systems, Inc
Product Name Unmanaged 16-Port Gigabit PoE with 2-Port SFP and 2-Port RJ45 Ethernet Switch
Product Type Ethernet Switch
Product Model EX19162A
Manufacturer Part Number EX19162A
Technical Information
Material Metal
Power Consumption 23W
Network Switch Type Unmanaged
Media Type Supported Optical Fiber, Twisted Pair
I/O Expansions
Shared SFP Slot Yes
Expansion Slot Type SFP
Number of SFP Slots 2
Number of Total Expansion Slots 2
Interfaces/Ports
Modular Yes
Uplink Port Yes
Network (RJ-45) Yes
Total Number of Network Ports 18
Management & Protocols
Manageable No
Media & Performance
Network Technology 10/100/1000Base-TX, 1000Base-X
Network & Communication
Layer Supported 2
Ethernet Technology 10 Gigabit Ethernet
Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical Characteristics
Depth 8.7"
Width 17.3"
Height 1.7"
Weight 6.60lb
Power Description
Frequency 50 Hz, 60 Hz
PoE Budget 250W
Power Source Power Supply
Input Voltage 120V AC, 230V AC
PoE (RJ-45) Port Yes
Product Information
Mount Type Rack Mount
Warranty
Limited Warranty 3-Year
Miscellaneous
Country of Origin TW
