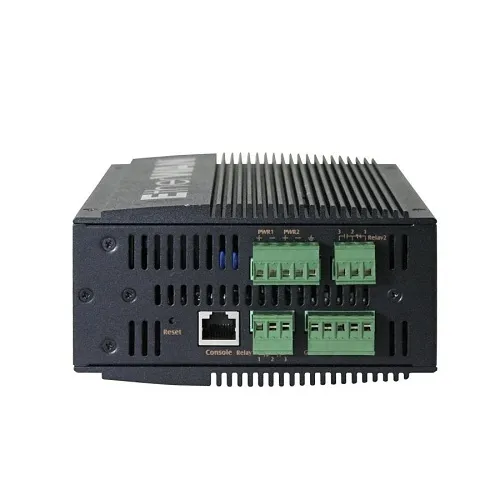

EtherWAN EX78924E-0VB-CC Network Switch
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Delivers resilient, secure Gigabit Ethernet connectivity optimized for surveillance, security and remote monitoring deployments
- Supports 1000Base-T/LX/SX and a wide 46-57V DC input for flexible power options in constrained or PoE-fed environments
- Advanced management and security tools (RADIUS/TACACS+, SSH, MAC filtering, Alpha-Ring) simplify integration and harden camera/network access
- Compact, rugged aluminum housing for reliable performance in tight racks, enclosures, and field installations
- Traffic prioritization (IEEE 802.1p, DSCP, WRR) ensures video and alarm streams remain smooth under load
- Environmentally certified with a lifetime limited warranty for long-term ROI and reduced maintenance
Quick Specifications
- Product Model
- EX78924E-0VB-CC
- Brand Name
- EtherWAN
- Manufacturer Part Number
- EX78924E-0VB-CC
Explore the details
Product information
EX78924E-0VB-CC
Overview
Built for security and surveillance systems that demand always-on, low-latency connectivity, the EtherWAN EX78924E-0VB-CC network switch delivers dependable Gigabit Ethernet performance in a compact, rugged package. EtherWAN’s managed switch features support for 1000Base-T, 1000Base-LX/SX and comprehensive IEEE standards including IEEE 802.1x for secure access control, ensuring compatible, high-throughput links for IP cameras, NVRs and monitoring stations. The EX78924E accepts a broad 46-57V DC input, making it easy to integrate into existing DC power plants or industrial power supplies. Operational resilience is enhanced by Alpha-Ring fast fault recovery, advanced QoS (802.1p, DSCP, WRR) to prioritize video traffic, and centralized authentication via RADIUS/TACACS+. Aluminum construction and environmental certifications reduce service calls while the lifetime limited warranty protects your investment. Ideal for CCTV, access control, industrial monitoring and campus security networks, this EtherWAN network switch simplifies deployment and keeps mission-critical video and sensor data flowing. Configure it for edge or core security infrastructure and order today to upgrade your surveillance network’s reliability.
Features
- Delivers resilient, secure Gigabit Ethernet connectivity optimized for surveillance, security and remote monitoring deployments
- Supports 1000Base-T/LX/SX and a wide 46-57V DC input for flexible power options in constrained or PoE-fed environments
- Advanced management and security tools (RADIUS/TACACS+, SSH, MAC filtering, Alpha-Ring) simplify integration and harden camera/network access
- Compact, rugged aluminum housing for reliable performance in tight racks, enclosures, and field installations
- Traffic prioritization (IEEE 802.1p, DSCP, WRR) ensures video and alarm streams remain smooth under load
- Environmentally certified with a lifetime limited warranty for long-term ROI and reduced maintenance
| General Information | |
|---|---|
| Brand Name | EtherWAN |
| Manufacturer | EtherWAN |
| Manufacturer Part Number | EX78924E-0VB-CC |
| Technical Information | |
| Material | Aluminum |
| Device Supported | Ethernet switch |
| Media & Performance | |
| Network Technology | 1000Base-LX, 1000Base-SX, 1000Base-T, 100Base-FX, 100Base-TX, 10Base-T |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Networking Standards | IEEE 1588v2, IEEE 802.1ab, IEEE 802.1az, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Physical Characteristics | |
| Depth | 5.5" |
| Height | 6.7" |
| Power Description | |
| Input Voltage | 46-57V DC |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | Auto-negotiation for port speed and duplex, Complex password support, Configuration backup, Enable/Disable port, EtherWAN's Alpha-Ring network fault recovery, MAC Address filtering, Multi-user login and privileged access management, Remote authentication through RADIUS and TACACS+, SSH for CLI and Telnet security, Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode |
| Environmentally Friendly | Yes |
| Environmental Certification | ISO, UL |
