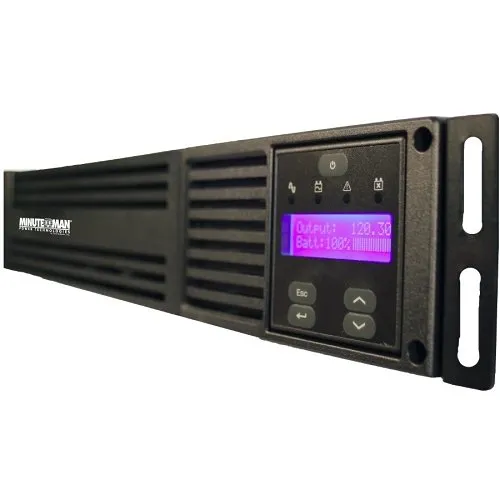

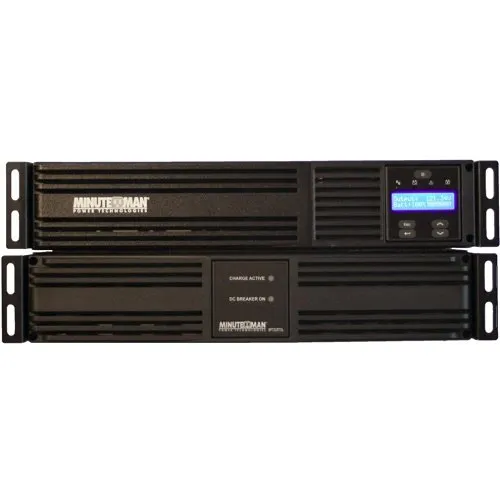

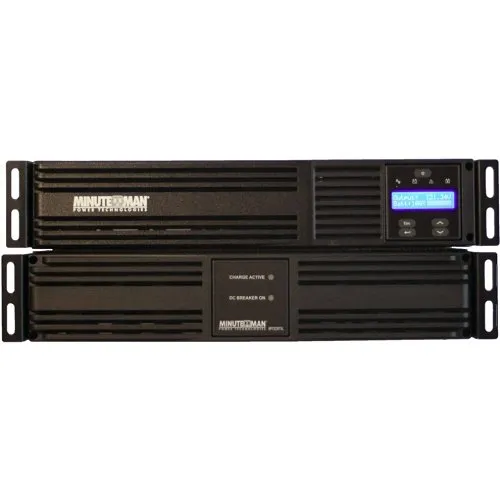

Minuteman EXR1000RT2U EXR Series AVR Line Interactive UPS, 1KVA/900W, 2U RMS
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features
- Protects sensitive servers, network and security equipment with true sine wave output for stable, clean power during outages
- Maximizes usable capacity with a 0.9 power factor and 1kVA/900W rating to support more devices without upsizing
- Flexible 2U rack/tower form factor with wall-mount options simplifies deployment across data centers, network closets and surveillance sites
- Smart runtime scaling: auto-recognizes external battery packs and supports hot-swappable batteries for extended, uninterrupted operation
- Integrated management and communications (USB, RS232, SNMP) enable remote monitoring and control for IT and security teams
Quick Specifications
- Product Model
- EXR1000RT2U
- Sector
- Data Comm & Networking
- Brand Name
- Minuteman
- Product Line
- EXR
Frequently Bought Together
Minuteman EXR1000RT2U EXR Series AVR Line Interactive UPS, 1KVA/900W, 2U RMS
$1,058.84
3 items selected
Total: $2,066.01
Explore the details
Product information
EXR1000RT2U
Overview
Keep critical systems online and protected with the Minuteman EXR1000RT2U EXR Series line-interactive UPS. Designed for IT, security and surveillance environments, this UPS delivers true sine wave output and automatic voltage regulation (AVR) to safeguard servers, networking gear, and monitoring equipment from spikes, sags and blackouts. Rated at 1 kVA / 900 W with a 0.9 power factor, the EXR1000RT2U gives you more usable capacity in a compact 2U rack/tower chassis—ideal for network closets, data centers and security system racks.
The unit supports eight NEMA 5-15R outlets, hot-swappable sealed lead-acid batteries and auto-recognition of external battery packs for scalable runtime. Built-in communications (USB, RS232, SNMP) and Minuteman SentryHD software let administrators monitor status and perform graceful shutdowns remotely—critical for surveillance recording and continuous monitoring systems. ENERGY STAR certified and featuring Independent Battery Bypass for regulation even on weak batteries, this UPS balances efficiency and reliability.
Deploy the EXR1000RT2U where uninterrupted power matters most—protect your network, surveillance and monitoring infrastructure today. Contact sales to configure extended runtime solutions.
Features
- Protects sensitive servers, network and security equipment with true sine wave output for stable, clean power during outages
- Maximizes usable capacity with a 0.9 power factor and 1kVA/900W rating to support more devices without upsizing
- Flexible 2U rack/tower form factor with wall-mount options simplifies deployment across data centers, network closets and surveillance sites
- Smart runtime scaling: auto-recognizes external battery packs and supports hot-swappable batteries for extended, uninterrupted operation
- Integrated management and communications (USB, RS232, SNMP) enable remote monitoring and control for IT and security teams
| General Information | |
|---|---|
| Sector | Data Comm & Networking |
| Brand Name | Minuteman |
| Manufacturer | Para Systems, Inc |
| Product Line | EXR |
| Product Name | EXR Series Line Interactive Uninterruptible Power Supply |
| Product Type | Line-interactive UPS |
| Product Model | EXR1000RT2U |
| Product Series | EXR |
| Packaged Quantity | 1 |
| Manufacturer Part Number | EXR1000RT2U |
| Technical Information | |
| AVR | Yes |
| Phase | Single Phase |
| Battery Size | Proprietary Battery Size |
| Hot Swappable | Yes |
| Output Voltage | 120V AC |
| Receptacle Type | NEMA 5-15R |
| Application/Usage | Data Center, Education, Electronic Equipment, Mission Critical Equipment, Network, Network Closet, Security System |
| Receptacle Detail | 8 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Backup/Run Time (Full Load) | 4-Minute |
| Backup/Run Time (Half Load) | 13-Minute |
| Battery Information | |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Certifications | |
| Energy Star | Yes |
| TAA Compliant | No |
| Controls/Indicators | |
| Status Indicators | Yes |
| Environmental Conditions | |
| Operating Humidity | 0-95% |
| Maximum Operating Elevation | 9842.52' |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| EPO Port | Yes |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| Management | |
| Network Management | SNMP |
| Others | |
| Model Number Replaces | E1000RTXL2U, EXR1000RTXL |
| Physical Characteristics | |
| Width | 19" |
| Height | 3.5" |
| Weight | 41.70 lb |
| Form Factor | Rack, Tower, Wall Mount |
| Rack Height | 2U |
| Power Description | |
| Input Voltage | 120V AC |
| Waveform Type | True Sine Wave |
| Input Frequency | 60Hz |
| Plug/Connector Type | NEMA 5-15P |
| Surge Energy Rating | 1000 J |
| Product Information | |
| Mount Type | Rack, Tower, Wall Mount |
| Load Capacity | 1000VA |
| Software | |
| Software Included | Yes |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | Energy Star 2.0, RoHS 2 |
