Kanex EXT-HDBT70C 4K/30 HDMI Extender Over HDBaseT, Video Extender Transmitter/Receiver, Black
Image of 4
Key Features
- Extend high-resolution HDMI signals up to 40m (4K@30) or 70m (1080p) over a single Cat5e/6a cable, reducing cable runs and installation time
- Power over Cable (PoC) from either transmitter or receiver eliminates extra power supplies for clean, remote installations
- HDCP 2.2 and 10.2 Gbps bandwidth preserve image integrity for security, surveillance and digital signage applications

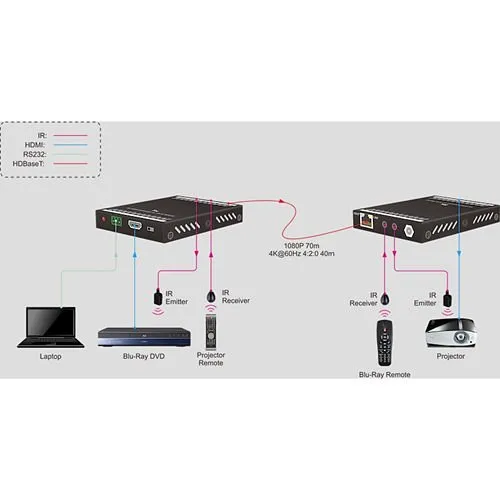

- Bi-directional RS-232, IR and CEC pass-through enable centralized control and seamless integration with control rooms and monitoring systems
- Compact, rack-mountable transmitter/receiver design supports secure, interference-resistant installs with shielded STP cabling
Quick Specifications
- Product Model
- EXT-HDBT70C
- Brand Name
- Kanex
- Product Name
- 4K/30 HDMI Extender over HDBaseT
- Product Type
- Video Extender Transmitter/Receiver
Frequently Bought Together
Kanex EXT-HDBT70C 4K/30 HDMI Extender Over HDBaseT, Video Extender Transmitter/Receiver, Black
$208.97
2 items selected
Total: $233.92
Explore the details
Product information
EXT-HDBT70C
Overview
Move high-quality video where you need it most — whether distributing content across a control room, digital signage network, or a surveillance system. The Kanex EXT-HDBT70C HDMI extender over HDBaseT is a transmitter/receiver set engineered to simplify long-distance AV and security deployments. It delivers uncompressed 4K@30 video up to 40m and Full HD 1080p up to 70m over a single Cat5e/6a cable, while HDCP 2.2 compliance and a 10.2 Gbps bandwidth preserve image fidelity for monitoring and critical applications.
Installation is faster and cleaner thanks to bi-directional PoC, which powers the remote unit from either end and removes the need for local outlets. Integrated RS-232, IR and CEC control keeps cameras, displays and AV processors manageable from a central console — ideal for surveillance, monitoring, healthcare AV, airports and classrooms. The compact, rack-mountable units pair with shielded twisted-pair cable and proper grounding for reliable, interference-resistant transport.
For dependable long-run HDMI extension in security, AV and enterprise environments, choose the Kanex EXT-HDBT70C. Contact sales or add to cart to streamline your next installation.
Features
- Extend high-resolution HDMI signals up to 40m (4K@30) or 70m (1080p) over a single Cat5e/6a cable, reducing cable runs and installation time
- Power over Cable (PoC) from either transmitter or receiver eliminates extra power supplies for clean, remote installations
- HDCP 2.2 and 10.2 Gbps bandwidth preserve image integrity for security, surveillance and digital signage applications
- Bi-directional RS-232, IR and CEC pass-through enable centralized control and seamless integration with control rooms and monitoring systems
- Compact, rack-mountable transmitter/receiver design supports secure, interference-resistant installs with shielded STP cabling
| General Information | |
|---|---|
| Brand Name | Kanex |
| Manufacturer | KanexPro |
| Product Name | 4K/30 HDMI Extender over HDBaseT |
| Product Type | Video Extender Transmitter/Receiver |
| Product Model | EXT-HDBT70C |
| Manufacturer Part Number | EXT-HDBT70C |
| Technical Information | |
| Cable Type | Category 6a |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 229.66' |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Display & Graphics | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Physical Characteristics | |
| Color | Black |

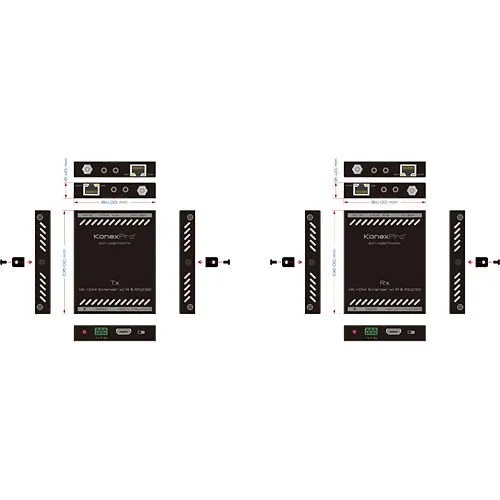

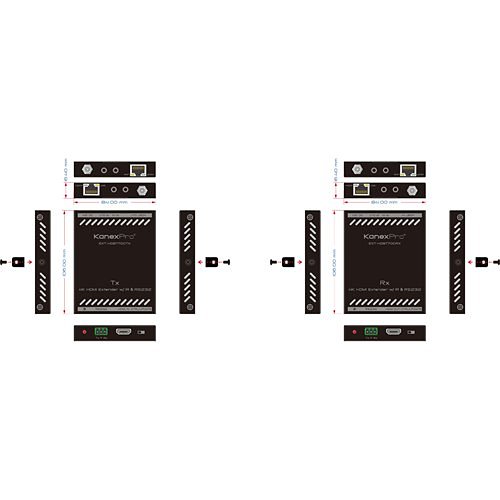

| Depth | 3.3" |
| Width | 4.17" |
| Height | 0.6" |
| Form Factor | Rack Mount |
| Product Information | |
| Mount Type | Rack Mount |
| Video | |
| Graphics Modes | 4K |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Country of Origin | CN |
