Gefen 4K Ultra HD 600 MHz 4x4 Matrix
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Route any of four 4K sources to any of four displays for flexible AV and security deployments
- Future-proof 4K performance with 18.2 Gbps / 600 MHz bandwidth and 4096 x 2160 support for crisp surveillance and monitoring video
- Independent output scalers let you downscale or upscale per display for mixed-resolution systems without extra processors
- Breakout analog/digital audio and pass-through of Dolby Atmos/DTS:X for integrated sound in venues, retail, and control rooms
- Multiple control options (IR, RS-232, Telnet, web, Syner-G API) and 1U rackmount design for easy integration and centralized management
Quick Specifications
- Product Model
- EXT-UHD600A-44
- Brand Name
- Gefen
- Product Name
- 4K Ultra HD 600 MHz 4x4 Matrix
- Product Type
- Audio/Video Switchbox
Frequently Bought Together
Gefen 4K Ultra HD 600 MHz 4x4 Matrix
$1,936.22
3 items selected
Total: $1,971.97
Explore the details
Product information
EXT-UHD600A-44
Overview

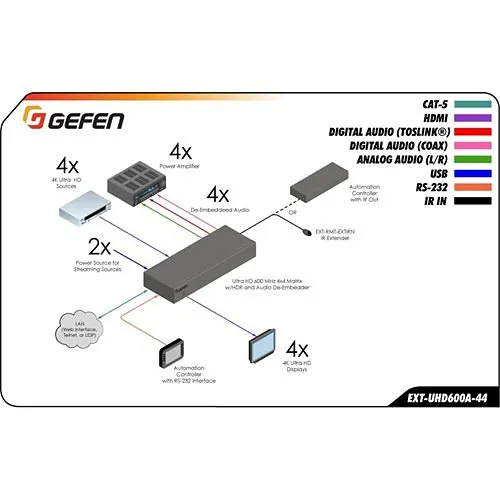

Deliver reliable, high-fidelity 4K distribution across AV, security and monitoring systems with the Gefen 4K Ultra HD 600 MHz 4x4 Matrix. Designed for commercial integrators, this HDMI matrix switch routes four sources to four displays while preserving 4K Cinema-DCI (4096 x 2160) and Ultra HD detail with full 18.2 Gbps / 600 MHz TMDS bandwidth and HDCP 2.2 compatibility. Built-in independent scalers allow two outputs to downscale 4K to 1080p while the others upscale HD to Ultra HD, making mixed-resolution surveillance, control room, digital signage and corporate AV installations seamless. Audio de-embedding and support for multichannel formats — including Dolby Atmos and DTS:X — simplify integration with external amplifiers and sound systems. IT-friendly control options (IR, RS-232, Telnet, UDP, web GUI and Gefen Syner-G) plus USB power ports for streaming sticks speed deployment and management. Rack-mountable in 1U, the EXT-UHD600A-44 is a future-ready matrix switch for monitoring centers, retail surveillance, and multi-zone AV systems. Contact your reseller or add to cart to upgrade your distribution backbone today.
Features
- Route any of four 4K sources to any of four displays for flexible AV and security deployments
- Future-proof 4K performance with 18.2 Gbps / 600 MHz bandwidth and 4096 x 2160 support for crisp surveillance and monitoring video
- Independent output scalers let you downscale or upscale per display for mixed-resolution systems without extra processors
- Breakout analog/digital audio and pass-through of Dolby Atmos/DTS:X for integrated sound in venues, retail, and control rooms
- Multiple control options (IR, RS-232, Telnet, web, Syner-G API) and 1U rackmount design for easy integration and centralized management
| General Information | |
|---|---|
| Brand Name | Gefen |
| Manufacturer | Gefen, Inc |
| Product Name | 4K Ultra HD 600 MHz 4x4 Matrix |
| Product Type | Audio/Video Switchbox |
| Product Model | EXT-UHD600A-44 |
| Country of Origin | TW |
| Packaged Quantity | 1 |
| Manufacturer Part Number | EXT-UHD600A-44 |
| Technical Information | |
| Device Supported | Display |
| Number of Input Devices Supported | 4 |
| Display & Graphics | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Number of Connectivity (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Depth | 6.30" |
| Width | 17.25" |
| Height | 1.75" |
| Weight | 3.25lb |
| Product Information | |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Mode | 4K DCI |
| Maximum Resolution | 4096 x 2160 |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Package Contents | 1 x IR Extender (EXT-RMT-EXTIRN), 1 x IR Remote (RMT-44A), 1 x Quick-Start Guide, 4 x Self-Adhesive Rubber-Feet, 4K Ultra HD 600 MHz 4x4 Matrix1 x 24V DC Power Supply (EXT-PS24U-O or EXT-PS24U-O-6)1 x AC Power Cord2 x Rack Ears4 x Machine screws for Rack Earsand more below |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- EXT-UHD600A-44
- Manufacturer part:
- EXT-UHD600A-44
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
Read return eligibility and exclusionsGefen 4K Ultra HD 600 MHz 4x4 Matrix
EXT-UHD600A-44
