AtlasIED FA136T47 6" Coaxial In-Ceiling Speaker with 4W 70V Transformer

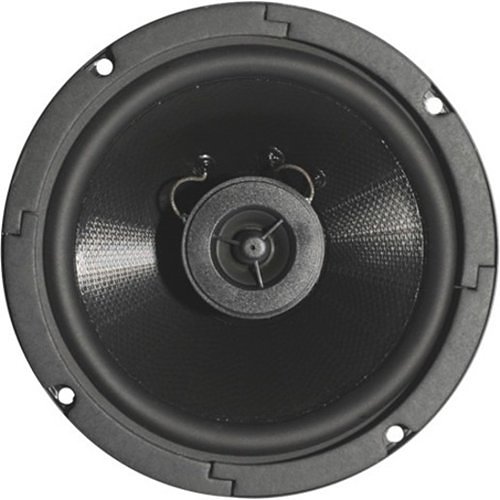

Image of 2
Key Features
- Reliable 70V paging and background audio: built-in 4W 70V transformer lets you integrate the speaker into distributed commercial audio and security paging systems with ease.
- Clear voice and music reproduction: coaxial 6" driver and ferrofluid-cooled tweeter deliver intelligible paging and full-range audio for monitoring and surveillance environments.
- Durable, weather-resistant construction: Kevlar-reinforced polypropylene woofer and Norsorex surround provide long-term performance in high-use indoor public spaces.
- Hassle-free installation and attractive finish: patented mounting system and hardware-free grille simplify install in conference rooms, retail, schools and control rooms.
- UL listed and compliant: TAA/NDAA compliant and UL1480 safety listed for commercial and government security/audio projects.
Quick Specifications
- Product Model
- FA136T47
- Brand Name
- AtlasIED
- Product Line
- Strategy
- Product Name
- 6" Coaxial Loudspeaker with 70.7V-4W Transformer
Explore the details
Product information
FA136T47
Overview
Engineered for reliable paging, background music and security audio, the AtlasIED FA136T47 6" coaxial in-ceiling speaker provides clear, full-range sound in commercial and surveillance environments. This AtlasIED pro speaker combines a Kevlar-reinforced polypropylene woofer and post-mounted dome tweeter to reproduce voice and music with precision—helpful for paging, monitoring and security announcements. With a built-in 4W 70V transformer and 50-watt peak capability (35W RMS), it integrates seamlessly into distributed 70V systems while offering 88 dB sensitivity and a wide 80 Hz–20 kHz response for intelligible speech and accurate highs. The weather-resistant surround and acoustically matched enclosure ensure consistent performance in high-traffic indoor installations like retail stores, command centers, schools, and hospitals. UL listed and NDAA/TAA compliant, the FA136T47 meets commercial safety and procurement requirements for security and surveillance projects. Specify this in-ceiling speaker when you need dependable paging, clear voice evacuation, or discreet background audio—contact sales or add to your next system design for a professional-grade audio solution.
Features
- Reliable 70V paging and background audio: built-in 4W 70V transformer lets you integrate the speaker into distributed commercial audio and security paging systems with ease.
- Clear voice and music reproduction: coaxial 6" driver and ferrofluid-cooled tweeter deliver intelligible paging and full-range audio for monitoring and surveillance environments.
- Durable, weather-resistant construction: Kevlar-reinforced polypropylene woofer and Norsorex surround provide long-term performance in high-use indoor public spaces.
- Hassle-free installation and attractive finish: patented mounting system and hardware-free grille simplify install in conference rooms, retail, schools and control rooms.
- UL listed and compliant: TAA/NDAA compliant and UL1480 safety listed for commercial and government security/audio projects.
| General Information | |
|---|---|
| Brand Name | AtlasIED |
| Manufacturer | Atlas Sound LP. |
| Product Line | Strategy |
| Product Name | 6" Coaxial Loudspeaker with 70.7V-4W Transformer |
| Product Type | Speaker |
| Product Model | FA136T47 |
| Product Series | Strategy |
| Manufacturer Part Number | FA136T47 |
| Technical Information | |
| Material | PP |
| Sensitivity | 88dB |
| Audio | |
| RMS Output Power | 35W |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 80Hz |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Physical Characteristics | |
| Size | 6" |
| Color | Black |
| Product Information | |
| Mount Type | In-ceiling Mount |
| Miscellaneous | |
| Features | Achieves Fidelity Similar to an 8" (203mm) System with Wider Dispersion, Front Loads into Specially Designed, Acoustically Matched Enclosure, Offers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free Grilles, Patented, Easy-to-Install Loudspeaker Mounting System, UL Certified, Safety Listed to UL1480, Uses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
