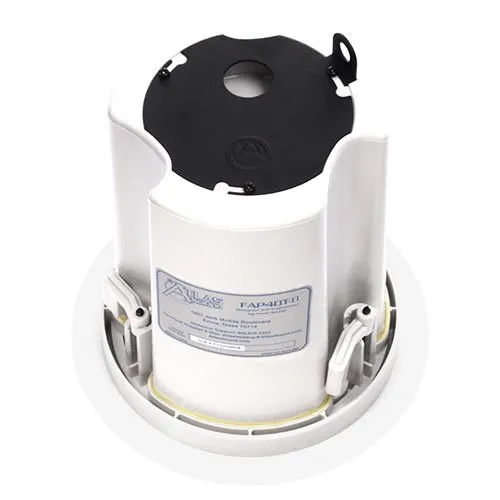

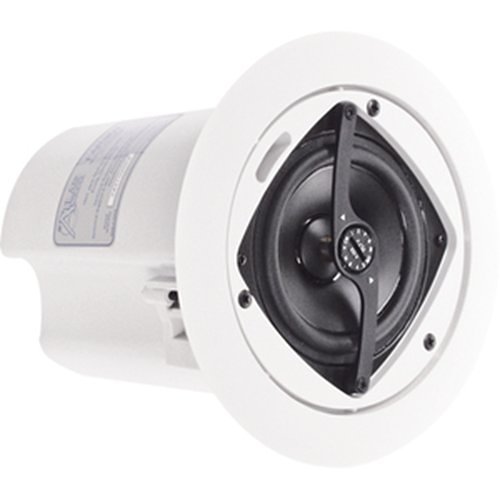

AtlasIED FAP40T 4" In-Ceiling Speaker with 16W 70V, 100V Transformer and Ported Enclosure
Image of 3
Key Features
- Compact, high-intelligibility 4" design delivers clear voice and music from a minimal ceiling footprint
- Selectable 16W 70/100V transformer with 8Ω bypass for flexible system tuning and easy integration into PA or paging systems
- Tuned, ported enclosure enhances low-frequency response for fuller sound in commercial spaces
- Tool-free wiring access and daisy-chain capability speed installation and simplify multi-speaker deployments
- Low-profile, press-fit grille and included tile bridge blend with contemporary architecture for discreet install
- NDAA-compliant construction and lightweight enclosure reduce installation costs and meet public-sector requirements
Quick Specifications
- Product Model
- FAP40T
- Brand Name
- AtlasIED
- Product Line
- Strategy
- Product Name
- 4" Ceiling Speaker System With 70.7/100V-16W Transformer And 8? Bypass, 4" Ceiling Speaker System With 70.7/100V-16W Transformer And 8? Bypass
Explore the details
Product information
FAP40T
Overview
Maximize speech clarity and reliable background music distribution in commercial, institutional, and security environments with the AtlasIED FAP40T 4" in-ceiling speaker. This pro speaker delivers focused intelligibility for paging, monitoring, and surveillance support while staying out of sight with a low-profile white grille. The built-in 16W 70/100V transformer with an 8Ω bypass gives system designers flexible tap settings for precise coverage and power management, and the tuned, ported enclosure extends bass response for a richer overall sound (80 Hz–15 kHz frequency range, 87 dB sensitivity). Lightweight yet durable, the injection-molded enclosure includes a tile bridge and press-fit grille to simplify installs in drywall or drop ceilings, and a convenient two-pole terminal for daisy-chaining to additional speakers or subwoofers. NDAA compliance and Strategy II reliability make the FAP40T a smart choice for healthcare, education, retail, and security deployments that require dependable voice evacuation and background music. Specify the AtlasIED FAP40T for your next PA, monitoring, or surveillance-ready audio project—contact us to add it to your system design.
Features
- Compact, high-intelligibility 4" design delivers clear voice and music from a minimal ceiling footprint
- Selectable 16W 70/100V transformer with 8Ω bypass for flexible system tuning and easy integration into PA or paging systems
- Tuned, ported enclosure enhances low-frequency response for fuller sound in commercial spaces
- Tool-free wiring access and daisy-chain capability speed installation and simplify multi-speaker deployments
- Low-profile, press-fit grille and included tile bridge blend with contemporary architecture for discreet install
- NDAA-compliant construction and lightweight enclosure reduce installation costs and meet public-sector requirements
| General Information | |
|---|---|
| Brand Name | AtlasIED |
| Manufacturer | AtlasIED |
| Product Line | Strategy |
| Product Name | 4" Ceiling Speaker System With 70.7/100V-16W Transformer And 8? Bypass, 4" Ceiling Speaker System With 70.7/100V-16W Transformer And 8? Bypass |
| Product Type | Speaker |
| Product Model | FAP40T |
| Product Series | Strategy II |
| Manufacturer Part Number | FAP40T |
| Technical Information | |
| Material | Butyl Rubber, Metal, Plastic |
| Impedance | 8 ohms |
| Sensitivity | 87dB |
| Speaker Size | 4" |
| Audio | |
| RMS Output Power | 16W |
| Number of Speakers | 1 |
| Maximum Frequency Response | 15 kHz |
| Minimum Frequency Response | 80Hz |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Physical Characteristics | |
| Size | 4" |
| Color | White |
| Depth | 7.13" |
| Height | 7.1" |
| Form Factor | In-ceiling |
| Product Information | |
| Diameter | 7.4" |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
