AtlasIED Strategy FAP6260T Ceiling Mountable Speaker 60 RMS

SKU: FAP6260T AtlasIED

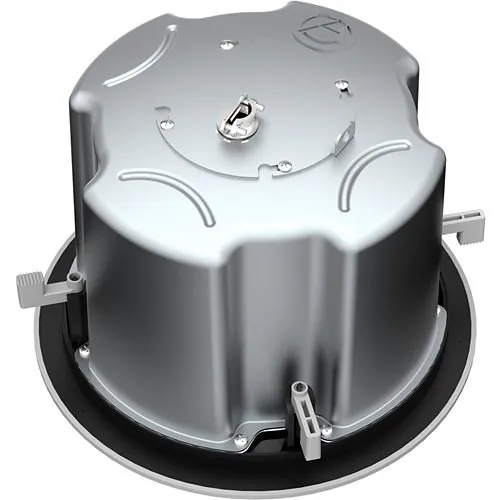

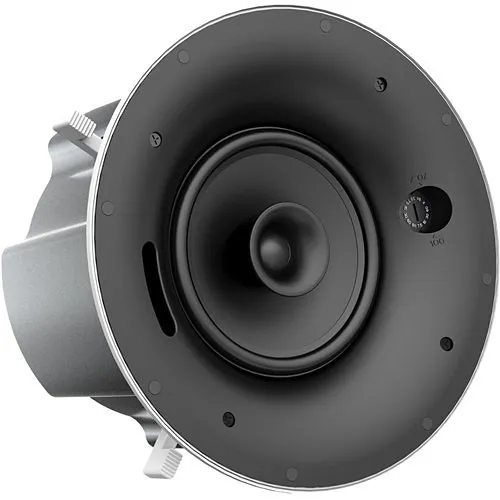

Image of AT-FAP6260T
Product images for AtlasIED Strategy FAP6260T Ceiling Mountable Speaker 60 RMS. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Delivers clear, high-fidelity paging and background music so staff and customers hear announcements and emergency messages with precision
  • 60W RMS power and 60° narrow dispersion focus audio for higher ceiling spaces and targeted coverage in retail, transit, or institutional environments
  • Built-in 70.7V/100V low‑saturation transformer with front-mounted tap switch enables fast integration into distributed PA and security paging systems
  • High sensitivity (92 dB) and efficient 6" woofer with silk dome tweeter produce full-range sound with less amplifier power required
  • Simple ceiling installation with Strategy II dog-leg tabs, tile bridge and detachable Phoenix connector for secure daisy-chain wiring and quick servicing

Quick Specifications

Product Model
FAP6260T
Brand Name
AtlasIED
Product Line
Strategy
Product Name
Strategy FAP6260T Speaker
View Full Technical Specifications

Explore the details

Product information

FAP6260T

Overview

For commercial and institutional installations that demand reliable, intelligible audio, the AtlasIED Strategy FAP6260T ceiling speaker delivers focused, high-fidelity sound for paging, background music and security monitoring. This AtlasIED pro speaker pairs a 6" high-efficiency woofer and coaxial 20mm silk dome tweeter to reproduce a broad 63 Hz–15 kHz range with 60W RMS power and 92 dB sensitivity for strong, consistent SPL across larger rooms and higher ceilings. The 60° narrow dispersion pattern minimizes overspill and optimizes coverage in corridors, retail aisles, classrooms, and surveillance zones. Designed for systems integrators, the FAP6260T includes a low-saturation 70.7V/100V transformer with a front-mounted tap switch for on-ceiling tap selection, plus a detachable Phoenix-style connector for secure daisy-chaining to other speakers or subwoofers. Rugged, ported galvanized steel construction and easy Strategy II dog-leg mounting reduce install time and lifecycle maintenance. Ideal for commercial PA, security paging, and monitoring applications—add the AtlasIED Strategy FAP6260T to your next project for reliable audio performance. Contact us to specify or order.

Features

  • Delivers clear, high-fidelity paging and background music so staff and customers hear announcements and emergency messages with precision
  • 60W RMS power and 60° narrow dispersion focus audio for higher ceiling spaces and targeted coverage in retail, transit, or institutional environments
  • Built-in 70.7V/100V low‑saturation transformer with front-mounted tap switch enables fast integration into distributed PA and security paging systems
  • High sensitivity (92 dB) and efficient 6" woofer with silk dome tweeter produce full-range sound with less amplifier power required
  • Simple ceiling installation with Strategy II dog-leg tabs, tile bridge and detachable Phoenix connector for secure daisy-chain wiring and quick servicing
28 of 28 specifications
Technical specifications for AtlasIED Strategy FAP6260T Ceiling Mountable Speaker 60 RMS
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Strategy
Product Name Strategy FAP6260T Speaker
Product Type Speaker
Product Model FAP6260T
Product Series Strategy II
Manufacturer Part Number FAP6260T
Technical Information
Material Butyl Rubber, Steel
Impedance 8 ohms
Sensitivity 92dB
Speaker Size 6"
Application/Usage Commercial, Industrial, Institutional
Audio
RMS Output Power 60W
Maximum Frequency Response 15 kHz
Minimum Frequency Response 63Hz
Certifications
TAA Compliant No
NDAA Compliant Yes
Physical Characteristics
Size 6"
Color White
Depth 8.08"
Height 8.1"
Product Information
Diameter 11"
Mount Type Ceiling Mount
Warranty
Limited Warranty 60-Month
Miscellaneous
Features Extended Low Frequency Response From the Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
Indoor/Outdoor Indoor
Country of Origin CN
