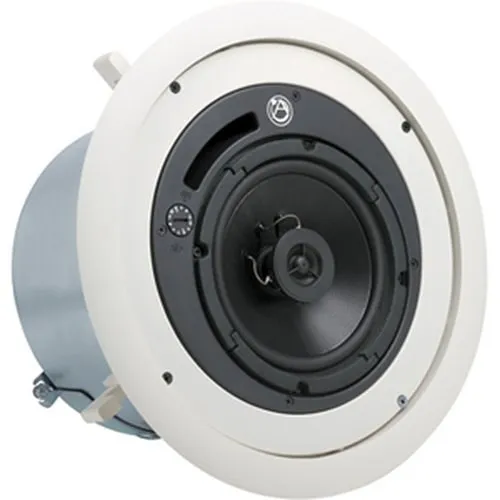

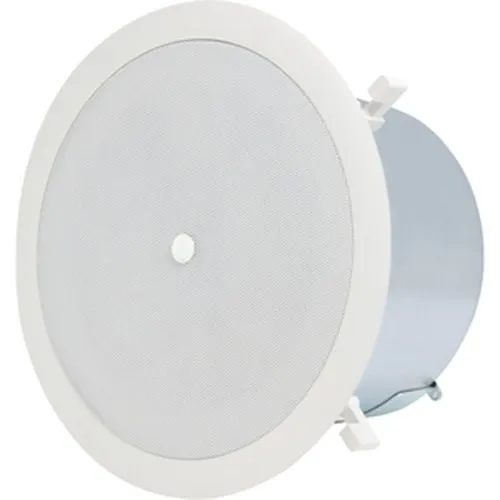

AtlasIED FAP62T 6" Coaxial In-Ceiling Speaker with 32W 70V, 100V Transformer and Ported Enclosure
Image of 3
Key Features
- Simple, fast installation that saves labor: Strategy II "dog leg" tabs with included tile bridge let you mount in drop-tile or drywall ceilings without extra hardware
- Flexible system tuning on-site: front-mounted tap selector with 32W 70V/100V transformer and 8Ω bypass allows easy level adjustments for background music, paging or high-SPL needs
- Clear, full-range sound with deeper bass: 6" coaxial driver and ported 285 cu. in. enclosure deliver extended low end and wide dispersion for consistent coverage in low ceilings
- Lower amplifier cost and higher SPL: 92 dB sensitivity reduces required power, letting you achieve target levels with smaller amplifiers
- Contractor-friendly wiring and scaling: detachable 4‑pole Phoenix connector and through-conduit "trap door" input enable fast pre-wiring and daisy-chaining of zones or subwoofers
- Discreet, durable design for commercial spaces: white press-fit grille and galvanized steel enclosure blend into contemporary architecture and withstand long-term use
Quick Specifications
- Product Model
- FAP62T
- Brand Name
- AtlasIED
- Product Line
- Strategy
- Product Name
- 6" Coaxial Speaker System With 70.7/100V-32W Transformer And 8? Bypass
Explore the details
Product information
FAP62T
Overview
Deliver reliable, high-fidelity audio for paging, background music and security monitoring with the AtlasIED FAP62T 6" coaxial in-ceiling speaker. Designed for commercial integrators, consultants and facility managers, this Strategy II speaker provides clear voice intelligibility and balanced music reproduction across a wide 63 Hz–20 kHz frequency range. The factory-mounted 32W 70.7V/100V transformer with convenient front tap switch supports distributed audio systems and simple field tuning, while an 8Ω bypass lets you connect low-impedance amplifiers when higher fidelity is needed.
With a high 92 dB sensitivity and a ported deep-drawn enclosure, the FAP62T delivers strong output with less amplifier power — ideal for retail, corporate, education and security/surveillance monitoring rooms where consistent coverage matters. Installation is faster thanks to the tile-bridge c-ring, "dog leg" mounting and conduit-friendly input panel, reducing labor on new builds and retrofits. Finish installations faster and scale multi-zone audio systems with the detachable Phoenix connector for daisy-chaining. Order the AtlasIED FAP62T to upgrade your paging, monitoring or public-address system — perfect for command centers, lobbies and classrooms.
Features
- Simple, fast installation that saves labor: Strategy II "dog leg" tabs with included tile bridge let you mount in drop-tile or drywall ceilings without extra hardware
- Flexible system tuning on-site: front-mounted tap selector with 32W 70V/100V transformer and 8Ω bypass allows easy level adjustments for background music, paging or high-SPL needs
- Clear, full-range sound with deeper bass: 6" coaxial driver and ported 285 cu. in. enclosure deliver extended low end and wide dispersion for consistent coverage in low ceilings
- Lower amplifier cost and higher SPL: 92 dB sensitivity reduces required power, letting you achieve target levels with smaller amplifiers
- Contractor-friendly wiring and scaling: detachable 4‑pole Phoenix connector and through-conduit "trap door" input enable fast pre-wiring and daisy-chaining of zones or subwoofers
- Discreet, durable design for commercial spaces: white press-fit grille and galvanized steel enclosure blend into contemporary architecture and withstand long-term use
| General Information | |
|---|---|
| Brand Name | AtlasIED |
| Manufacturer | AtlasIED |
| Product Line | Strategy |
| Product Name | 6" Coaxial Speaker System With 70.7/100V-32W Transformer And 8? Bypass |
| Product Type | Speaker |
| Product Model | FAP62T |
| Product Series | Strategy II |
| Manufacturer Part Number | FAP62T |
| Technical Information | |
| Impedance | 8Ohm |
| Sensitivity | 92dB |
| Speaker Size | 6.00" |
| Audio | |
| Maximum Frequency Response | 20kHz |
| Minimum Frequency Response | 63Hz |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Physical Characteristics | |
| Size | 6" |
| Color | White |
| Depth | 8.50" |
| Height | 8.50" |
| Material | Butyl Rubber, Steel |
| Form Factor | In-ceiling |
| Product Information | |
| Diameter | 12.50" |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
