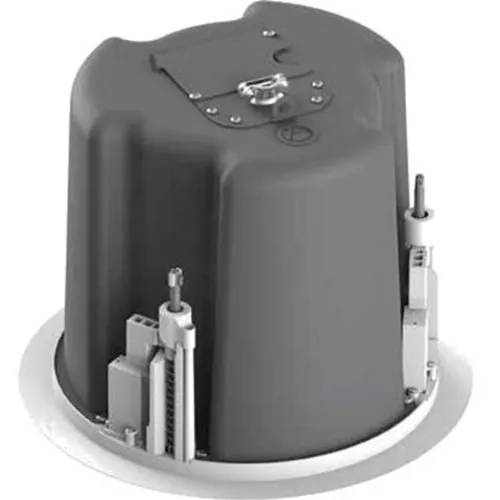

AtlasIED FAP63T-W 6.5" Coaxial In-Ceiling Speaker with 32W 70V/100V Transformer, Ported Enclosure, and Safety First Mounting System
Image of 2
Key Features
- Faster, safer installs with patented Safety First Mounting System — tool-free t-handles reduce install time up to 60% and minimize mounting failures
- Consistent coverage and fewer speakers required thanks to improved waveguide delivering up to 110° dispersion
- Clear speech and fuller music from a 6.5" coaxial driver and ported enclosure for enhanced low-frequency response
- Flexible system tuning with front-mounted 70V/100V transformer (32W tap) and easy front tap selector for quick adjustments
- Corrosion-resistant design and UL1480/UL2043 safety listings provide reliable long-term operation in commercial and security environments
- Fast pre-wiring and daisy-chaining using the removable 4-pole euro connector to reduce labor costs on large deployments
Quick Specifications
- Product Model
- FAP63T-W
- Brand Name
- AtlasIED
- Product Line
- Strategy III
- Product Name
- FAP Strategy III Series Ceiling Loudspeaker
Explore the details
Product information
FAP63T-W
Overview
Deliver clear, intelligible audio across lobbies, retail floors, restaurants and monitored security spaces with the AtlasIED FAP63T-W in-ceiling speaker. Built for pro audio and commercial AV projects, this 6.5" coaxial ceiling loudspeaker pairs a ported enclosure with a silk-dome tweeter to produce crisp speech and tighter bass—ideal for paging, background music, and public address in security and surveillance installations. The integrated 32W 70V/100V transformer and front-mounted tap selector let integrators tune levels on-site while the improved waveguide provides up to 110° coverage to reduce the number of units required and lower system cost. Installers benefit from the patent-pending Safety First Mounting System that eliminates metal screw corrosion and speeds installation without tools, plus a removable 4-pole euro connector for fast pre-wiring and daisy-chaining. UL1480 and UL2043 listings and NDAA compliance make it suitable for mission-critical environments requiring reliable monitoring and paging. Specify the AtlasIED FAP63T-W for dependable, easy-to-install ceiling audio—perfect for commercial, security, and public spaces. Contact us for pricing or to add it to your next project.
Features
- Faster, safer installs with patented Safety First Mounting System — tool-free t-handles reduce install time up to 60% and minimize mounting failures
- Consistent coverage and fewer speakers required thanks to improved waveguide delivering up to 110° dispersion
- Clear speech and fuller music from a 6.5" coaxial driver and ported enclosure for enhanced low-frequency response
- Flexible system tuning with front-mounted 70V/100V transformer (32W tap) and easy front tap selector for quick adjustments
- Corrosion-resistant design and UL1480/UL2043 safety listings provide reliable long-term operation in commercial and security environments
- Fast pre-wiring and daisy-chaining using the removable 4-pole euro connector to reduce labor costs on large deployments
| General Information | |
|---|---|
| Brand Name | AtlasIED |
| Manufacturer | AtlasIED |
| Product Line | Strategy III |
| Product Name | FAP Strategy III Series Ceiling Loudspeaker |
| Product Type | Speaker |
| Product Model | FAP63T-W |
| Product Series | Strategy III |
| Application/Usage | Music, Signal reproduction, Voice |
| Country of Origin | CN |
| Manufacturer Part Number | FAP63T-W |
| Technical Information | |
| Impedance | 8Ohm |
| Sensitivity | 90dB |
| Speaker Size | 6.50" |
| Crossover Type | 2-Way |
| Audio | |
| Number of Speakers | 2 |
| Maximum Frequency Response | 20kHz |
| Minimum Frequency Response | 50Hz |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Physical Characteristics | |
| Size | 6.50" |
| Color | White |
| Depth | 8.86" |
| Width | 10.50" |
| Height | 10.50" |
| Weight | 7.82lb |
| Material | Silk Dome |
| Form Factor | In-ceiling |
| Product Information | |
| Diameter | 10.51" |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 4 Pole Detachable, Enhanced Quality, Press Fit Grilles, Unique Trap Door |
| Indoor/Outdoor | Indoor |
