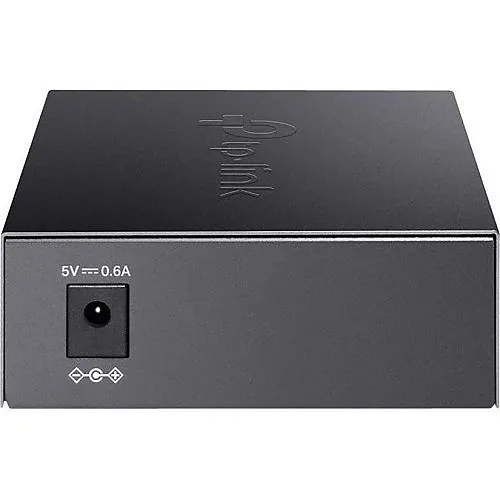

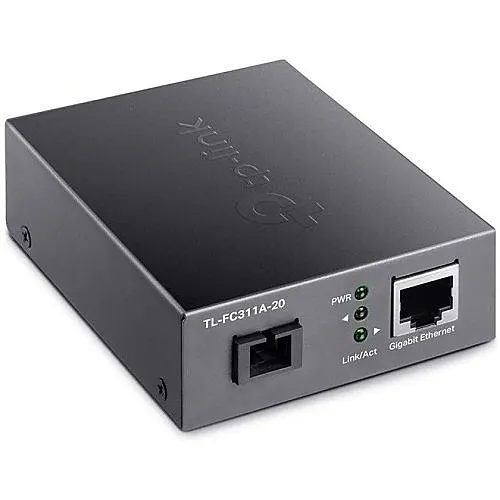

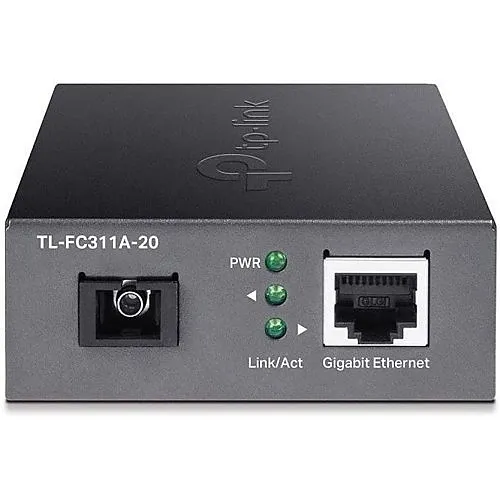

TP-Link TL-FC311A-20 Gigabit WDM Media Converter
Image of 4
Key Features
- Extend gigabit Ethernet up to 20 km over single‑mode fiber using WDM to cut fiber deployment and installation cost
- Convert between RJ‑45 copper and SC fiber for camera, wireless backhaul, and remote device connectivity
- Plug-and-play operation with auto MDI/MDIX and auto-negotiation for fast, reliable integration into existing networks
- Compact freestanding design or install in TP-Link TL-FC1420 rack for centralized media conversion in security and monitoring setups
- Low-latency gigabit throughput ideal for surveillance, network monitoring, and campus security applications
Quick Specifications
- Product Model
- TL-FC311A-20
- Brand Name
- TP-Link
- Product Name
- Gigabit WDM Media Converter
- Product Type
- Transceiver/Media Converter
Explore the details
Product information
FC311A-20
Overview
Built for long-distance security and networking deployments, the TP-Link TL-FC311A-20 Gigabit WDM Media Converter delivers a simple, cost-effective way to extend gigabit Ethernet over single‑mode fiber for surveillance, monitoring and wireless backhaul. This media converter pairs a 10/100/1000 RJ‑45 copper port with a gigabit SC fiber port and uses WDM (1550 nm transmit / 1310 nm receive) to send and receive over a single fiber span up to 20 km—halving fiber runs and reducing installation complexity.
Designed for B2B environments, the TL-FC311A-20 offers plug-and-play reliability with auto-negotiation and Auto-MDI/MDIX on the copper side, ensuring seamless connectivity for IP cameras, NVRs, access control panels and remote switches. Its compact freestanding housing fits on-site equipment racks or can be mounted in TP-Link’s TL-FC1420 rack for centralized media conversion. Single‑mode fiber support, gigabit performance and low latency make it ideal for campus security, parking lot surveillance and distributed monitoring systems.
Deploy this TP-Link Gigabit WDM Media Converter to simplify fiber infrastructure, extend network reach, and secure reliable links for mission-critical surveillance and monitoring—order now to upgrade your network backbone.
Features
- Extend gigabit Ethernet up to 20 km over single‑mode fiber using WDM to cut fiber deployment and installation cost
- Convert between RJ‑45 copper and SC fiber for camera, wireless backhaul, and remote device connectivity
- Plug-and-play operation with auto MDI/MDIX and auto-negotiation for fast, reliable integration into existing networks
- Compact freestanding design or install in TP-Link TL-FC1420 rack for centralized media conversion in security and monitoring setups
- Low-latency gigabit throughput ideal for surveillance, network monitoring, and campus security applications
| General Information | |
|---|---|
| Brand Name | TP-Link |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Name | Gigabit WDM Media Converter |
| Product Type | Transceiver/Media Converter |
| Product Model | TL-FC311A-20 |
| Country of Origin | CN |
| Manufacturer Part Number | FC311A-20 |
| Technical Information | |
| Fiber Optic Mode | Single-mode |
| Maximum Distance | 12.43mi |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Optic Cable Standard | 9/125 µm |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Ports | 2 |
| Number of SC Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Depth | 2.90" |
| Width | 3.70" |
| Height | 1.10" |
| Product Information | |
| Mount Type | Freestanding |
