VIVOTEK FD9383-HTV C Series 5MP Outdoor AI Fixed Dome IP Camera with Built-in IR, WDR, 2.8-12mm Motorized Varifoca Lens
Image of 6
Key Features
- Intelligent, actionable surveillance: built-in AI (Smart VCA & Vision Object Analytics) reduces false alarms and highlights real incidents for faster response
- Clear, reliable imaging day or night: 5MP resolution with STARVIS 2 sensor, WDR Pro and 30m Smart IR deliver usable footage in low light and high-contrast scenes
- Flexible coverage with motorized varifocal lens: 2.8–12mm motorized lens lets integrators remotely adjust FOV for site-specific monitoring without reinstallation
- Robust outdoor protection: IP66 weatherproofing and IK10 vandal resistance ensure continuous operation in harsh environments
- Secure, bandwidth-efficient operation: H.265 with Smart Stream III and Trend Micro IoT Security minimize storage and network load while protecting device integrity
Quick Specifications
- Product Model
- FD9383-HTV
- Brand Name
- VIVOTEK
- Product Line
- VORTEX
- Product Name
- FD9383-HTV 5MP30 fps, Trend Micro IoT Security, Smart VCA, Vision Object Analytics, WDR Pro, IP66/IK10, 30M IR
Frequently Bought Together
VIVOTEK FD9383-HTV C Series 5MP Outdoor AI Fixed Dome IP Camera with Built-in IR, WDR, 2.8-12mm Motorized Varifoca Lens
$496.33
4 items selected
Total: $1,958.34
Product Information Tabs
Overview

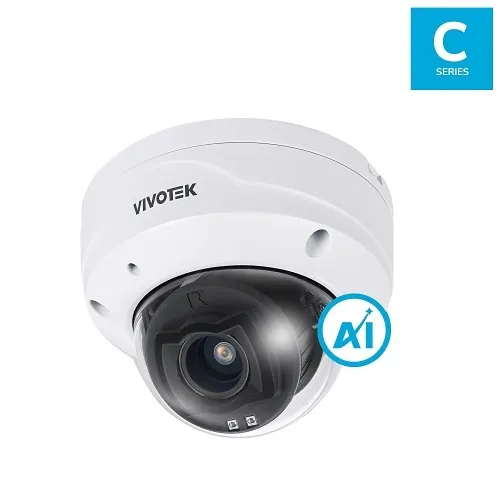

Deliver dependable, intelligent outdoor surveillance with the VIVOTEK FD9383-HTV 5MP Outdoor AI Fixed Dome IP Camera. Designed for perimeter, parking, and campus monitoring, this VIVOTEK dome camera combines a high-sensitivity 5MP Sony sensor with STARVIS 2 technology to produce clear images in challenging light. The motorized 2.8–12mm varifocal lens gives you on-site flexibility to fine-tune coverage remotely, while WDR Pro and 30m Smart IR ensure identifiable detail in both shadowed and backlit scenes.
Smart VCA and Vision Object Analytics turn video into actionable alerts, cutting down false positives and streamlining security workflows. H.265 compression with Smart Stream III optimizes bandwidth and storage for long-term recording, and Trend Micro IoT Security plus signed firmware help safeguard your network. Rated IP66 and IK10, the FD9383-HTV withstands weather and impact for continuous outdoor operation.
Ideal for enterprises, municipalities, and critical infrastructure that need reliable monitoring and intelligent analytics. Upgrade your security deployment with this VIVOTEK dome camera—contact sales or add to your cart to secure your site today.
Features
- Intelligent, actionable surveillance: built-in AI (Smart VCA & Vision Object Analytics) reduces false alarms and highlights real incidents for faster response
- Clear, reliable imaging day or night: 5MP resolution with STARVIS 2 sensor, WDR Pro and 30m Smart IR deliver usable footage in low light and high-contrast scenes
- Flexible coverage with motorized varifocal lens: 2.8–12mm motorized lens lets integrators remotely adjust FOV for site-specific monitoring without reinstallation
- Robust outdoor protection: IP66 weatherproofing and IK10 vandal resistance ensure continuous operation in harsh environments
- Secure, bandwidth-efficient operation: H.265 with Smart Stream III and Trend Micro IoT Security minimize storage and network load while protecting device integrity
| General Information | |
|---|---|
| Brand Name | VIVOTEK |
| Manufacturer | VIVOTEK |
| Product Line | VORTEX |
| Product Name | FD9383-HTV 5MP30 fps, Trend Micro IoT Security, Smart VCA, Vision Object Analytics, WDR Pro, IP66/IK10, 30M IR |
| Product Type | Network Camera |
| Product Model | FD9383-HTV |
| Product Series | C |
| Manufacturer Part Number | FD9383-HTV |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265 |
| Maximum Aperture | f/3.3 |
| Night Vision Type | Infrared |
| Number of IR LEDs | 2 |
| Maximum Frame Rate | 30fps |
| Field of View (Vertical) | 28.7° |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 1181.1" |
| Certifications | |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1920 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 122°F, 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Minimum Illumination | 0.005 lux, 0.04 lux |
| Interfaces/Ports | |
| HDMI | No |
| Lens | |
| Focal Length | 2.8-12mm |
| Lens Included | Yes |
| Maximum Focal Length | 12mm |
| Physical Characteristics | |
| Height | 4.08" |
| Weight | 1.87lb |
| Durability | Dustproof, Impact Resistant, Vandalproof, Waterproof, Weather Resistant |
| Form Factor | Dome |
| Product Information | |
| Diameter | 5.26" |
| Storage | |
| Storage Type | Memory Card |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
| Package Contents | alignment sticker, cable gland, Quick Installation Guide, screw pack |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
| Environmental Certification | BSMI, IA |
