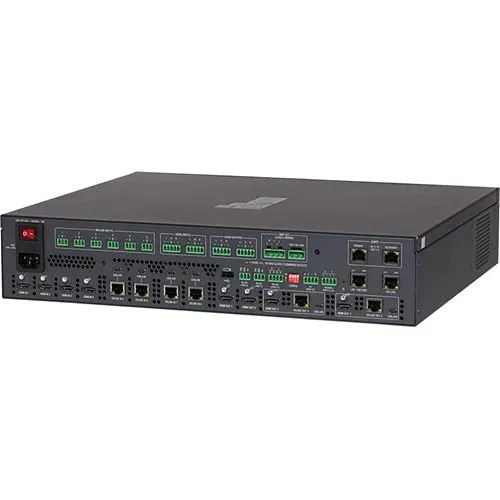

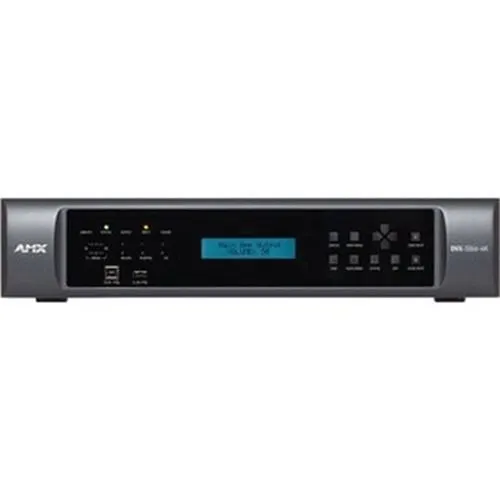

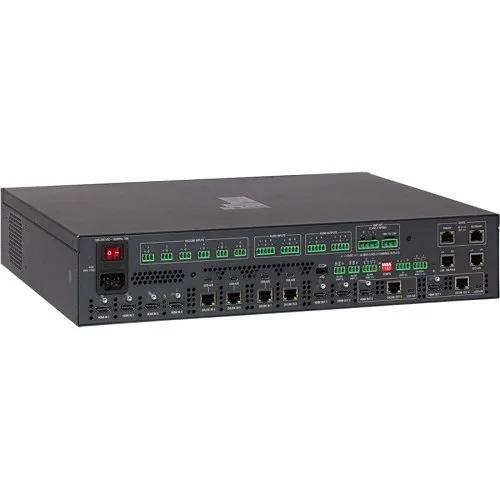

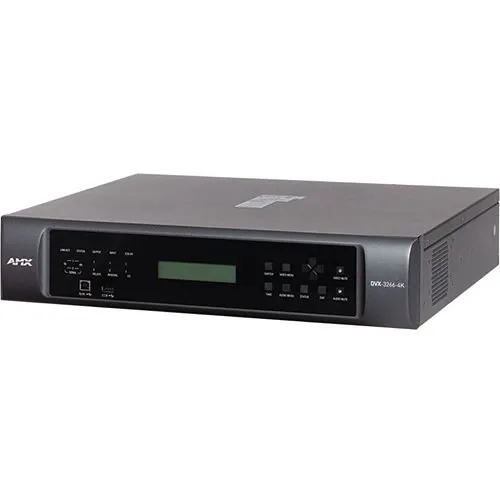

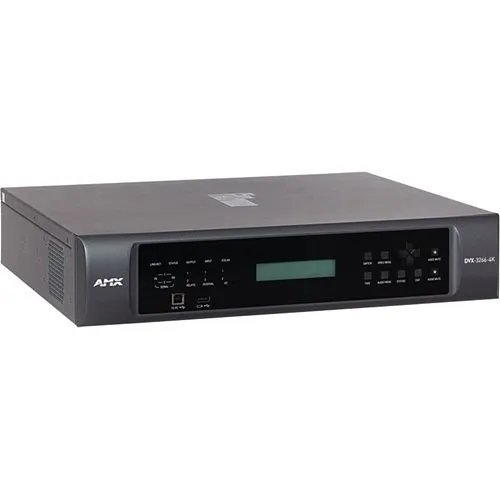

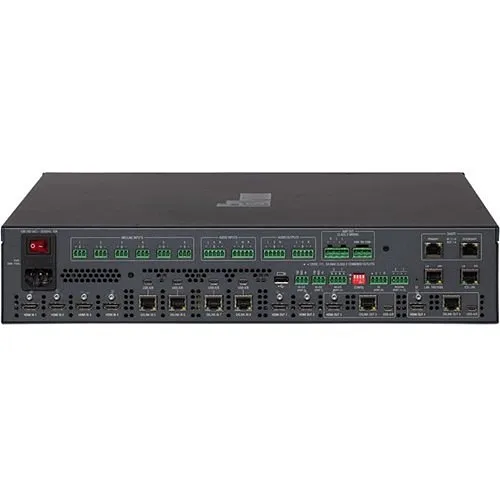

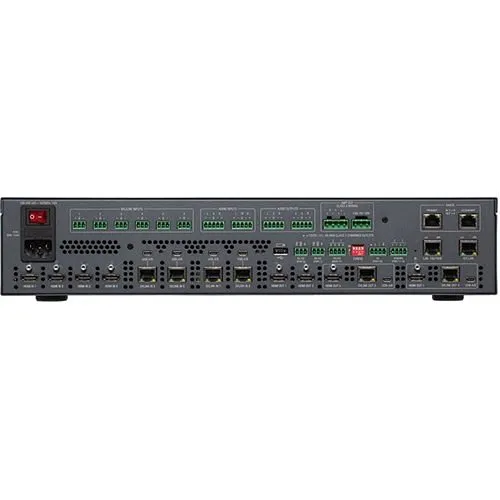

AMX FG1906-0401 AMX DVX-3266-4K 8x4+2 4K60 4:4:4 All-In-One Presentation Switcher, HDMI Inputs and DXLink 4K60 Inputs
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 9
Key Features
- Consolidates AV, control and amplification into one 2U unit to reduce rack space, installation time, and total system cost
- Delivers uncompromised 4K60 4:4:4 HDR video and HDMI 2.0/HDCP 2.2 compatibility for crystal‑clear presentations and surveillance monitoring feeds
- Integrated Dante audio plus Crown amplification and BSS/dbx processing for networked, high‑quality sound without separate DSP or amps
- DXLink twisted‑pair I/O and six USB ports simplify cabling, extend sources/displays up to 100 m, and support dual‑room or distributed deployments
- Enterprise‑grade network security (dual NICs, 802.1X, LDAP, FIPS) and an HTML5 web interface make configuration, monitoring and secure remote management straightforward
Quick Specifications
- Product Model
- DVX-3266-4K
- Brand Name
- AMX by Harman
- Product Name
- 8x4+2 4K60 4:4:4 All-In-One Presentation Switcher
- Product Type
- Audio/Video Switchbox
Frequently Bought Together
AMX FG1906-0401 AMX DVX-3266-4K 8x4+2 4K60 4:4:4 All-In-One Presentation Switcher, HDMI Inputs and DXLink 4K60 Inputs
$7,403.15
3 items selected
Total: $9,233.51
Explore the details
Product information
FG1906-0401
Overview
Built for modern collaboration and secure AV deployments, the AMX by Harman DVX-3266-4K All‑In‑One Presentation Switcher replaces racks of gear with a single, reliable solution. This 8x4+2 matrix switcher delivers full 4K60 4:4:4 and HDR on every output while supporting HDMI 2.0 and HDCP 2.2, so presentation, monitoring and surveillance sources remain pristine across multiple displays. Integrated Dante networking, Crown DriveCore amplification and BSS/dbx processing provide broadcast‑grade audio distribution and local amplification without extra hardware. DXLink twisted‑pair inputs and outputs reduce cabling and enable remote source/display placement up to 100 m away—ideal for multiroom conferencing or distributed control rooms. Administrators benefit from an intuitive HTML5 web interface, an isolated ICSLan, dual NICs, 802.1X and FIPS‑validated crypto for hardened AV security in enterprise and government environments. With USB 2.0 device support and flexible scaled outputs, DVX-3266-4K streamlines installs and lowers lifecycle costs. Specify the DVX-3266-4K for conference rooms, auditoriums, control centers or surveillance/monitoring suites and contact us to discuss integration and deployment options.
Features
- Consolidates AV, control and amplification into one 2U unit to reduce rack space, installation time, and total system cost
- Delivers uncompromised 4K60 4:4:4 HDR video and HDMI 2.0/HDCP 2.2 compatibility for crystal‑clear presentations and surveillance monitoring feeds
- Integrated Dante audio plus Crown amplification and BSS/dbx processing for networked, high‑quality sound without separate DSP or amps
- DXLink twisted‑pair I/O and six USB ports simplify cabling, extend sources/displays up to 100 m, and support dual‑room or distributed deployments
- Enterprise‑grade network security (dual NICs, 802.1X, LDAP, FIPS) and an HTML5 web interface make configuration, monitoring and secure remote management straightforward
| General Information | |
|---|---|
| Brand Name | AMX by Harman |
| Manufacturer | Harman International Industries, Inc |
| Product Name | 8x4+2 4K60 4:4:4 All-In-One Presentation Switcher |
| Product Type | Audio/Video Switchbox |
| Product Model | DVX-3266-4K |
| Country of Origin | CN |
| Packaged Quantity | 1 |
| Manufacturer Part Number | FG1906-0401 |
| Technical Information | |
| Device Supported | Display |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 8 |
| Interfaces/Ports | |
| Number of USB Ports | 6 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Number of Connectivity (RJ-45) Ports | 2 |
| Physical Characteristics | |
| Depth | 19.00" |
| Width | 17.30" |
| Height | 3.50" |
| Form Factor | Desktop Mount |
| Product Information | |
| Mount Type | Desktop Mount |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Mode | 4K UHD |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, WEEE |
