AMX FG1906-12 AMX DVX-2255HD-SP 6x3 All-In-One Presentation Switchers with NX Control with Multi-Format, HDMI, DXLink Inputs
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Consolidates AV, control and DSP into a single 3U rack-mount chassis to reduce rack space, cabling and total cost of ownership
- NX-Series NetLinx integrated controller provides secure networked control and simplifies programming across complex conference and monitoring environments
- Multi-format inputs (HDMI, DVI, analog and DXLink) support up to 6 sources and delivery to 3 displays, ideal for rooms with mixed digital and analog devices
- SmartScale® and WUXGA (1920 x 1200) support ensure each display receives correctly scaled video for crisp presentations and surveillance feeds
- Professional-grade audio DSP and built-in amplification deliver clear sound coverage for boardrooms, classrooms or security operations centers
Quick Specifications
- Product Model
- DVX-2255HD-SP
- Brand Name
- AMX by Harman
- Product Line
- Enova
- Product Name
- Enova DVX-2255HD-SP Audio/Video Switchbox
Frequently Bought Together
AMX FG1906-12 AMX DVX-2255HD-SP 6x3 All-In-One Presentation Switchers with NX Control with Multi-Format, HDMI, DXLink Inputs
$2,932.96
2 items selected
Total: $3,020.55
Explore the details
Product information
FG1906-12
Overview

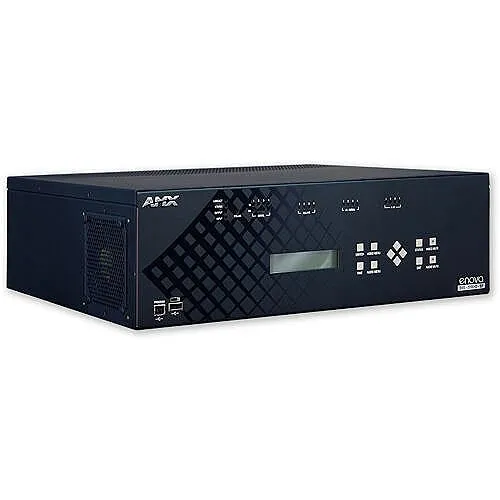

Designed to simplify AV deployments, the AMX by Harman Enova DVX-2255HD 6x3 presentation switcher unifies video, audio and control in one compact rack-mount unit so integrators and IT teams can deploy reliable systems faster. The DVX-2255HD supports up to six inputs (HDMI, DVI, analog and DXLink) and routes content to three displays while maintaining WUXGA/1920 x 1200 quality and SmartScale® pixel-perfect scaling. Built-in NX-Series NetLinx control gives you enterprise-grade network security, flexible automation and centralized management for meeting rooms, control rooms and surveillance/monitoring installations. Professional audio DSP and onboard amplification provide consistent audio coverage without extra processors, reducing equipment and rack complexity. Whether you’re upgrading conference rooms, lecture halls or security operations centers, the DVX-2255HD cuts installation time and lowers lifecycle costs while supporting HDCP, DXLink over twisted pair and multiple display configurations. Contact us to request a quote, schedule a demo, or discuss how this AMX presentation switcher can streamline your next AV or monitoring deployment.
Features
- Consolidates AV, control and DSP into a single 3U rack-mount chassis to reduce rack space, cabling and total cost of ownership
- NX-Series NetLinx integrated controller provides secure networked control and simplifies programming across complex conference and monitoring environments
- Multi-format inputs (HDMI, DVI, analog and DXLink) support up to 6 sources and delivery to 3 displays, ideal for rooms with mixed digital and analog devices
- SmartScale® and WUXGA (1920 x 1200) support ensure each display receives correctly scaled video for crisp presentations and surveillance feeds
- Professional-grade audio DSP and built-in amplification deliver clear sound coverage for boardrooms, classrooms or security operations centers
| General Information | |
|---|---|
| Brand Name | AMX by Harman |
| Manufacturer | Harman International Industries, Inc |
| Product Line | Enova |
| Product Name | Enova DVX-2255HD-SP Audio/Video Switchbox |
| Product Type | Audio/Video Switchbox |
| Product Model | DVX-2255HD-SP |
| Manufacturer Part Number | FG1906-12 |
| Technical Information | |
| Device Supported | Display |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 6 |
| Certifications | |
| TAA Compliant | No |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Number of USB Ports | 2 |
| Number of DVI Inputs | 2 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 2 |
| Number of Connectivity (RJ-45) Ports | 5 |
| Physical Characteristics | |
| Depth | 14" |
| Width | 17" |
| Height | 5.2" |
| Weight | 18.20lb |
| Form Factor | Rack Mount |
| Product Information | |
| Mount Type | Rack Mount |
| Number of Displays Supported | 3 |
| Video | |
| Graphics Modes | WUXGA |
| Miscellaneous | |
| Country of Origin | MX |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, WEEE |
