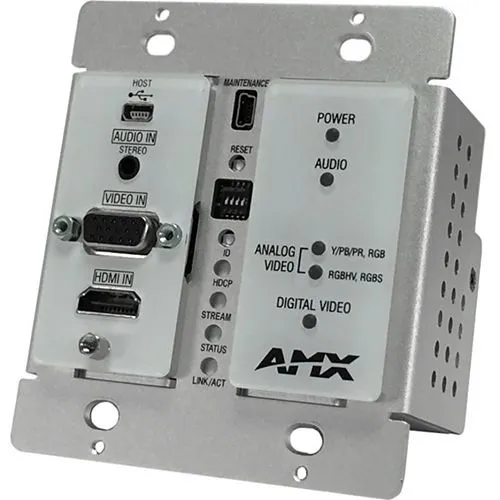

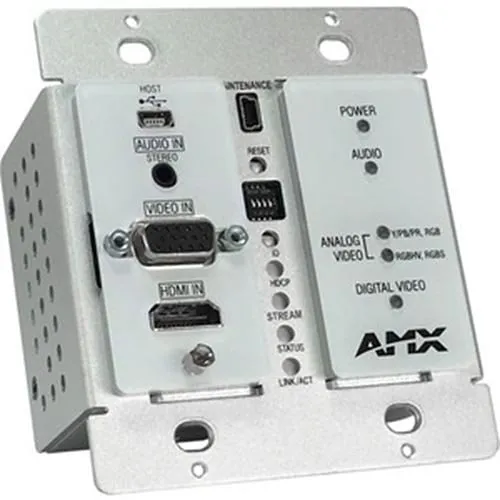

AMX FGN1115-WP-WH AMX NMX-ENC-N1115-WP-WH N1000 Series Wall plate Encoder, Minimal Proprietary Compression Video Over IP N1115 MPC Decor Style Wall plate Encoder with KVM, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Deliver low-latency, high-quality video for security and monitoring with WUXGA (1920 x 1200) support
- Wallplate form factor fits standard 2-gang boxes for clean, professional installs in lecterns, floor boxes, and walls
- Single category cable carries power and Ethernet to simplify cabling and reduce installation time
- Integrated KVM, HDMI, VGA and USB connectivity enables remote control of sources for control rooms and AV operators
- Scales with Layer-3 network switches for flexible AV-over-IP deployments in surveillance, monitoring, and corporate AV systems
Quick Specifications
- Product Model
- NMX-ENC-N1115-WP
- Brand Name
- AMX by Harman
- Product Name
- NMX-ENC-N1115-WP KVM Extender
- Product Type
- KVM Extender
Frequently Bought Together
AMX FGN1115-WP-WH AMX NMX-ENC-N1115-WP-WH N1000 Series Wall plate Encoder, Minimal Proprietary Compression Video Over IP N1115 MPC Decor Style Wall plate Encoder with KVM, White
$1,463.00
2 items selected
Total: $1,550.59
Explore the details
Product information
FGN1115-WP-WH
Overview
Optimize AV distribution and monitoring with the AMX by Harman N1000 Series wall plate encoder. The NMX-ENC-N1115-WP-WH brings minimally compressed, low-latency video over IP into a discreet 2-gang wallplate, making it ideal for security, surveillance, control rooms, huddle spaces and classroom lecterns. Supporting up to WUXGA (1920 x 1200) resolution and equipped with HDMI, VGA and two USB ports, this encoder combines video, audio and KVM control in a single, easy-to-install unit. A single category cable handles both Ethernet and power connections, reducing cabling complexity and installation cost. Designed for professional AV-over-IP systems, the N1115 works with off-the-shelf Layer-3 switches to scale from simple point-to-point links to large switching matrices. Built for installers and AV managers who need reliable, secure video distribution, it delivers crisp imagery with minimal latency while fitting seamlessly into finished rooms in a white decor style. Ideal for surveillance monitoring, corporate AV and education environments — contact sales to specify the N1115 for your next networked AV or security deployment.
Features
- Deliver low-latency, high-quality video for security and monitoring with WUXGA (1920 x 1200) support
- Wallplate form factor fits standard 2-gang boxes for clean, professional installs in lecterns, floor boxes, and walls
- Single category cable carries power and Ethernet to simplify cabling and reduce installation time
- Integrated KVM, HDMI, VGA and USB connectivity enables remote control of sources for control rooms and AV operators
- Scales with Layer-3 network switches for flexible AV-over-IP deployments in surveillance, monitoring, and corporate AV systems
| General Information | |
|---|---|
| Brand Name | AMX by Harman |
| Manufacturer | Harman International Industries, Inc |
| Product Name | NMX-ENC-N1115-WP KVM Extender |
| Product Type | KVM Extender |
| Product Model | NMX-ENC-N1115-WP |
| Product Series | N1000 |
| Manufacturer Part Number | FGN1115-WP-WH |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1200 |
| Image | |
| Graphic Mode | WUXGA |
| Interfaces/Ports | |
| VGA | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Number of USB Ports | 2 |
| Number of VGA Ports | 1 |
| Number of HDMI Ports | 1 |
| Physical Characteristics | |
| Color | White |
| Depth | 2.25" |
| Width | 3.5" |
| Height | 4.06" |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Country of Origin | US |
