AtlasIED FS12T-66 2-Way Indoor/Outdoor Surface Mount Speaker, 400 RMS, Light Gray

SKU: FS12T-66 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

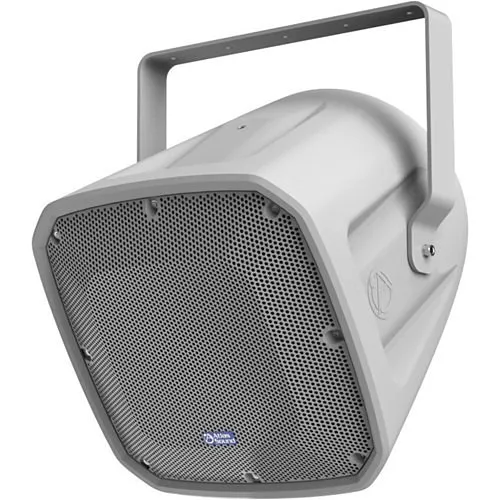

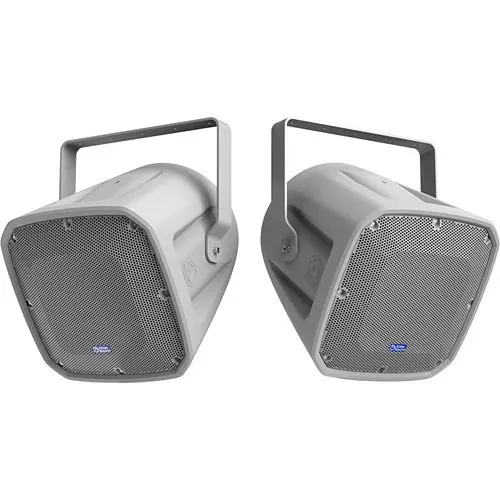

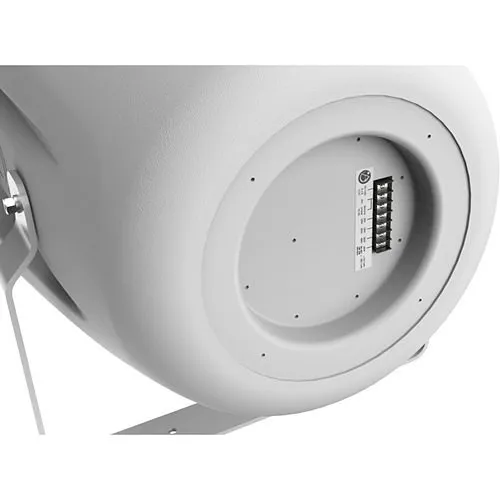

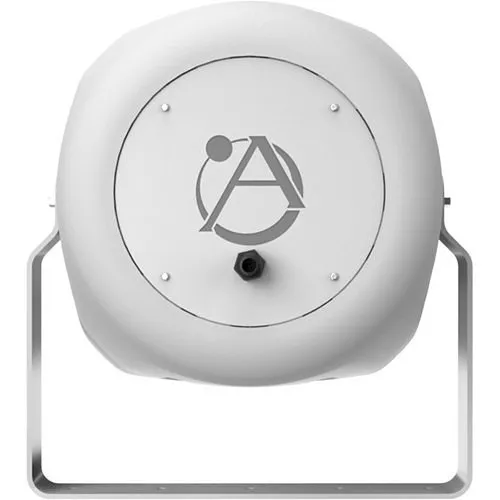

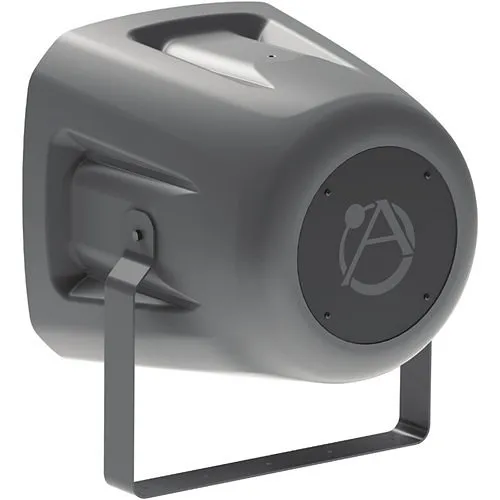

Image of AT-FS12T66
Product images for AtlasIED FS12T-66 2-Way Indoor/Outdoor Surface Mount Speaker, 400 RMS, Light Gray. 7 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Weatherproof, UV-resistant enclosure for dependable outdoor and indoor operation year-round
  • 400W RMS with integrated 70.7V transformer simplifies high-output mass notification and paging systems
  • 60° x 60° constant directivity horn delivers focused coverage and improved voice intelligibility for security and surveillance announcements
  • Easy-service design and included heavy-duty surface-mount bracket reduce installation time and maintenance disruptions
  • High-sensitivity 12" LF and 1" HF drivers provide clear voice and music reproduction for public address, monitoring, and emergency notification

Quick Specifications

Product Model
FS12T-66
Brand Name
AtlasIED
Product Line
Horns
Product Name
12" 2-Way Multipurpose Horn Loudspeaker System 60° x 60°
View Full Technical Specifications

Explore the details

Product information

FS12T-66

Overview

Deliver clear, reliable voice and music reinforcement where it matters most — outdoors and in. The AtlasIED FS12T-66 2-way surface-mount speaker is engineered for pro mass notification, security, surveillance and public address applications where intelligibility, durability and high output are critical. With 400W RMS power and an integrated 70.7V transformer, the FS12T-66 easily integrates into paging and emergency notification systems while providing the punch needed for large venues.

The rugged LLDPE enclosure is UV- and weather-resistant, and the constant directivity waveguide provides controlled 60° x 60° coverage for targeted announcements across arenas, stadiums, aquatic centers and perimeter security zones. Service-friendly access, a stainless steel U-bracket and multiple eyebolts speed installation and maintenance for facilities and integrators. High sensitivity and a concentric 12" woofer with 1" compression driver ensure accurate voice reproduction for monitoring and live events. NDAA-compliant construction and a 5-year limited warranty give specifiers added confidence.

Choose the AtlasIED FS12T-66 for dependable mass notification and security audio; contact us for system design support or add it to your next project.

Features

  • Weatherproof, UV-resistant enclosure for dependable outdoor and indoor operation year-round
  • 400W RMS with integrated 70.7V transformer simplifies high-output mass notification and paging systems
  • 60° x 60° constant directivity horn delivers focused coverage and improved voice intelligibility for security and surveillance announcements
  • Easy-service design and included heavy-duty surface-mount bracket reduce installation time and maintenance disruptions
  • High-sensitivity 12" LF and 1" HF drivers provide clear voice and music reproduction for public address, monitoring, and emergency notification
27 of 27 specifications
Technical specifications for AtlasIED FS12T-66 2-Way Indoor/Outdoor Surface Mount Speaker, 400 RMS, Light Gray
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Horns
Product Name 12" 2-Way Multipurpose Horn Loudspeaker System 60° x 60°
Product Type Speaker
Product Model FS12T-66
Product Series FS
Manufacturer Part Number FS12T-66
Technical Information
Impedance 8 ohms
Sensitivity 103dB
Speaker Size 12"
Crossover Type 2-way
Audio
RMS Output Power 400W
Maximum Frequency Response 17.60 kHz
Minimum Frequency Response 80Hz
Certifications
TAA Compliant No
NDAA Compliant Yes
Physical Characteristics
Color Gray
Depth 18.5"
Width 18.5"
Height 19.6"
Weight 48lb
Durability Heavy Duty, UV Resistant, Weather Resistant
Product Information
Mount Type Surface Mount
Warranty
Limited Warranty 5-Year
Miscellaneous
Features All-Weather Construction, Easy Service Design, Four Eyebolt, Mounting Bracket
Country of Origin CN

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
FS12T-66
Manufacturer part:
FS12T-66
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.

Read return eligibility and exclusions

AtlasIED FS12T-66 2-Way Indoor/Outdoor Surface Mount Speaker, 400 RMS, Light Gray

FS12T-66

Price & options
