APC GVMRB160KG65S Galaxy VM 160 KVA Additional UPS, 1+1, 480V

SKU: GVMRB160KG65S APC by Schneider Electric

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

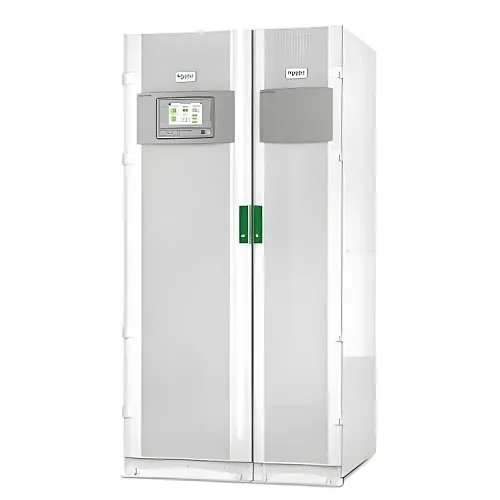

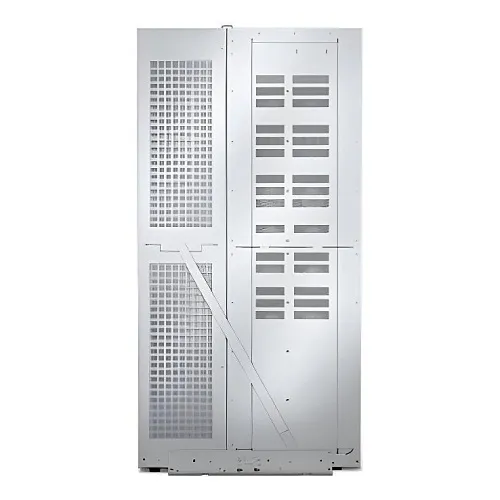

Image of 2G-B160KG65
Product images for APC GVMRB160KG65S Galaxy VM 160 KVA Additional UPS, 1+1, 480V. 3 image(s) available. Click on image to view full size.

Key Features

  • Ensures continuous uptime with 1+1 redundant design for mission-critical systems
  • Compact three-phase UPS that saves floor space in data centers and security rooms
  • Energy-efficient operation reduces operating costs and thermal load
  • Easy integration with 480V infrastructure for industrial, surveillance and monitoring environments
  • Robust, certified build (RoHS, UL, Energy Star) for reliable power protection

Quick Specifications

Product Model
GVMRB160KG65S
Sector
Intrusion
Brand Name
APC by Schneider Electric
Product Line
Galaxy VM
View Full Technical Specifications

Explore the details

Product information

GVMRB160KG65S

Overview

Ensure continuous power for mission-critical systems with the APC by Schneider Electric Galaxy VM 160 kVA UPS. Designed as an additional unit for 1+1 redundant configurations, this three-phase, 480V UPS delivers dependable, energy-efficient protection that minimizes downtime for data centers, security operations, surveillance and industrial monitoring equipment. The Galaxy VM combines a compact footprint with high thermal efficiency and proven overload protection, letting you expand capacity without sacrificing space or reliability. With support for hard-wired 4- or 5-wire connections and versatile 50/60 Hz operation, it integrates easily into existing power architectures and secure facilities. Certified to industry standards (Energy Star, RoHS, UL) and built for demanding environments, it lowers total cost of ownership by reducing energy use and simplifying maintenance. Ideal for IT racks, facility power distribution and surveillance infrastructure, this APC UPS keeps critical systems online and protected. Contact our team to configure the Galaxy VM 160 kVA UPS for your data center, security or monitoring application.

Features

  • Ensures continuous uptime with 1+1 redundant design for mission-critical systems
  • Compact three-phase UPS that saves floor space in data centers and security rooms
  • Energy-efficient operation reduces operating costs and thermal load
  • Easy integration with 480V infrastructure for industrial, surveillance and monitoring environments
  • Robust, certified build (RoHS, UL, Energy Star) for reliable power protection
32 of 32 specifications
Technical specifications for APC GVMRB160KG65S Galaxy VM 160 KVA Additional UPS, 1+1, 480V
General Information
Sector Intrusion
Brand Name APC by Schneider Electric
Product Line Galaxy VM
Product Name Galaxy VM 160 kVA Additional UPS for 1+1 480-480 V
Product Type Industrail UPS
Packaged Quantity 1
Manufacturer Part Number GVMRB160KG65S
Technical Information
Phase Three Phase
Output Voltage 480V
Application/Usage Data Center, Industrial
Overload Protection Yes
Battery Information
Maximum Operating Humidity 0.95
Certifications
Energy Star Yes
Environmental Conditions
Thermal Dissipation 6201.3W
Maximum Operating Elevation 3333'
Maximum Storage Temperature 5°F
Minimum Storage Temperature 104°F
Maximum Operating Temperature 104?F
Physical Characteristics
Color White
Depth 33.6"
Width 39.4"
Height 77.6"
Weight 1497.9lb
Package Type Pack
Power Description
Input Voltage 480V
Waveform Type Sine Wave
Input Frequency 40-70Hz
Output Frequency 50Hz, 60Hz
Plug/Connector Type Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
Warranty
Limited Warranty 1-Year
Miscellaneous
Environmentally Friendly Yes
Environmental Certification FCC, Green Premium, RoHS, UL
