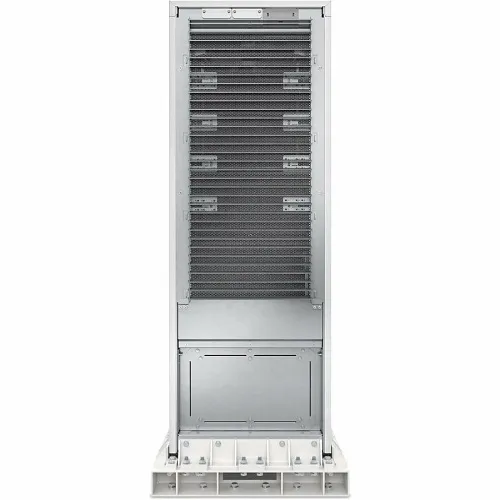

APC GVSUPS100KMHS Galaxy VS UPS 100kW, 400V
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Continuous, double-conversion protection that keeps critical systems online for security, surveillance, and monitoring applications
- High efficiency and modular design reduce total cost of ownership and simplify capacity upgrades at the edge or in small/medium data centers
- 100 kW, 400V 3‑phase output delivers stable power to commercial, industrial, and infrastructure loads
- Marine-certified construction and halogen‑free cabling for safe, code-compliant installation in harsh or regulated environments
- Includes 5x8 start-up service and network management for faster deployment and remote monitoring of UPS health
Quick Specifications
- Product Model
- GVSUPS100KMHS
- Sector
- Intrusion
- Brand Name
- APC by Schneider Electric
- Product Line
- Galaxy VS
Explore the details
Product information
GVSUPS100KMHS
Overview
Keep critical operations running with the APC by Schneider Electric Galaxy VS 100kW UPS — a modular, double-conversion online solution designed for reliable power at the edge, in small and medium data centers, and across industrial or commercial infrastructure. Delivering 100 kW at 400V in a three-phase configuration, the Galaxy VS provides stable, sine-wave output and robust overload protection to safeguard servers, network switches, security appliances, surveillance systems and monitoring equipment.
Engineered for efficiency, the UPS lowers operating costs with high conversion efficiency and a modular form factor that scales as demand grows. Built-in network management enables remote monitoring and alerts, while included 5x8 start-up service accelerates commissioning. Choose lead‑acid VRLA or Li‑Ion battery options to match runtime and lifecycle needs. Marine certification, halogen‑free cabling, and industry environmental certifications (RoHS, UL, FCC, Green Premium) make it suitable for regulated sites and harsh environments.
For organizations that need dependable, low‑TCO power protection for security, surveillance and critical IT, the APC Galaxy VS 100kW UPS is a compact, deployable solution — contact your APC by Schneider Electric reseller to configure or request a quote.
Features
- Continuous, double-conversion protection that keeps critical systems online for security, surveillance, and monitoring applications
- High efficiency and modular design reduce total cost of ownership and simplify capacity upgrades at the edge or in small/medium data centers
- 100 kW, 400V 3‑phase output delivers stable power to commercial, industrial, and infrastructure loads
- Marine-certified construction and halogen‑free cabling for safe, code-compliant installation in harsh or regulated environments
- Includes 5x8 start-up service and network management for faster deployment and remote monitoring of UPS health
| General Information | |
|---|---|
| Sector | Intrusion |
| Brand Name | APC by Schneider Electric |
| Manufacturer | Schneider Electric SA |
| Product Line | Galaxy VS |
| Product Name | Galaxy VS 100kW Modular UPS |
| Product Type | Double Conversion Online UPS |
| Packaged Quantity | 1 |
| Manufacturer Part Number | GVSUPS100KMHS |
| Technical Information | |
| Phase | Three Phase |
| Output Voltage | 400V AC |
| Application/Usage | Commercial, Data Center, Industrial, Infrastructure |
| Overload Protection | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid, Lithium Ion (Li-Ion) |
| Battery Characteristics | VRLA |
| Maximum Operating Humidity | 0.95 |
| Environmental Conditions | |
| Thermal Dissipation | 3333.10W |
| Maximum Operating Elevation | 3300' |
| Maximum Storage Temperature | 131°F |
| Minimum Storage Temperature | -13°F |
| Maximum Operating Temperature | 104°F (40°C) |
| Management | |
| Network Management | Network Management Card |
| Physical Characteristics | |
| Color | White |
| Depth | 33.3" |
| Width | 2.1" |
| Height | 58.5" |
| Weight | 551.16lb |
| Form Factor | Modular |
| Package Type | Pack |
| Power Description | |
| Input Voltage | 340V AC, 380V AC, 400V AC, 415V AC, 460V AC |
| Waveform Type | Sine Wave |
| Input Frequency | 40Hz, 70Hz |
| Output Frequency | 50Hz, 60Hz |
| Software | |
| Software Included | Yes |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | FCC, Green Premium, RoHS, UL |
