Speco H16HRLN 16-Channel Hybrid DVR, 4TB HDD, Black

SKU: H16HRLN4TB Speco Technologies

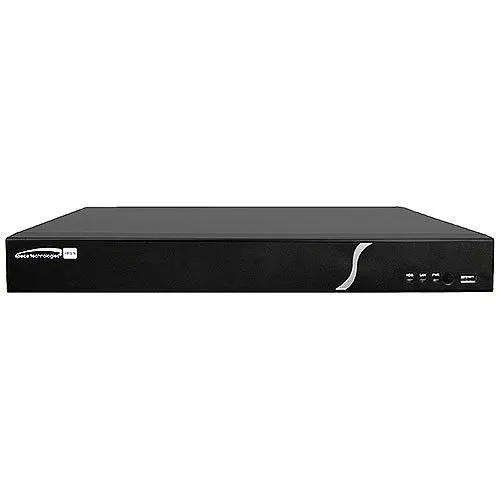

Image of SO-H16HRLN4T
Product images for Speco H16HRLN 16-Channel Hybrid DVR, 4TB HDD, Black. 2 image(s) available. Click on image to view full size.

Key Features

  • Scalable, high-resolution surveillance across 16 channels with up to 5MP (and 4K on 8 IP channels) for clear, usable evidence
  • H.265 compression plus 4TB HDD delivers extended retention and lower storage costs compared to H.264
  • Expandable storage with 2 SATA bays (up to 32TB) and eSATA support to meet growing retention requirements
  • Smart analytics (object detection, line crossing, Smart Search) reduce review time and improve real-time alerts
  • Flexible connectivity: 4K HDMI, VGA, Ethernet, USB and two-way audio for local monitoring and remote management
  • Multiple alarm inputs/outputs and NDAA-compliant hardware for seamless integration with access control and alarm systems

Quick Specifications

Product Model
H16HRLN
Brand Name
Speco Technologies
Product Name
HRLN Series H.265 Hybrid NDAA DVRwith Smart Analytics
Product Type
Video Surveillance System
View Full Technical Specifications

Explore the details

Product information

H16HRLN4TB

Overview

Secure continuous, high-quality monitoring for medium to large installations with the Speco H16HRLN 16-Channel Hybrid DVR from Speco Technologies. This hybrid video recorder supports HD-TVI and IP cameras—up to 5MP on all channels and 4K on eight IP channels—so you capture crisp footage for investigations and compliance. Built-in H.265 compression and a 4TB internal HDD extend retention while lowering bandwidth and storage costs, and dual SATA bays plus eSATA let you scale to meet long-term archive needs.

Smart analytics including object detection, line-crossing alerts and Smart Search speed event review and reduce false notifications. The H16HRLN also offers two-way audio, 4K HDMI output, multiple alarm inputs/outputs, and remote access via Ethernet with free DDNS/P2P, enabling reliable local and remote surveillance. Backed by a 5-year limited warranty and NDAA-compliant hardware, this DVR is ideal for retail, education, commercial and municipal security deployments. Upgrade your security setup with a reliable hybrid DVR built for efficient storage and responsive monitoring—contact us to configure for your site.

Features

  • Scalable, high-resolution surveillance across 16 channels with up to 5MP (and 4K on 8 IP channels) for clear, usable evidence
  • H.265 compression plus 4TB HDD delivers extended retention and lower storage costs compared to H.264
  • Expandable storage with 2 SATA bays (up to 32TB) and eSATA support to meet growing retention requirements
  • Smart analytics (object detection, line crossing, Smart Search) reduce review time and improve real-time alerts
  • Flexible connectivity: 4K HDMI, VGA, Ethernet, USB and two-way audio for local monitoring and remote management
  • Multiple alarm inputs/outputs and NDAA-compliant hardware for seamless integration with access control and alarm systems
30 of 30 specifications
Technical specifications for Speco H16HRLN 16-Channel Hybrid DVR, 4TB HDD, Black
General Information
Brand Name Speco Technologies
Manufacturer Speco Technologies
Product Name HRLN Series H.265 Hybrid NDAA DVRwith Smart Analytics
Product Type Video Surveillance System
Product Model H16HRLN
Product Series HRLN
Manufacturer Part Number H16HRLN4T
Technical Information
Video Formats H.265
Storage Capacity 4TB
Power Consumption 15W
Maximum Frame Rate 30fps
Number of Channels 16
Video Signal Format NTSC, PAL
Connectivity Technology Wired
Interfaces/Ports
HDMI Yes
Composite Video In Yes
Composite Video Out Yes
Number of USB Ports 1
Network & Communication
Ethernet Yes
Remote Management Yes
Others
Model Number Replaces D16HU4TB, D8VN4TB
Physical Characteristics
Color Black
Depth 10.6"
Width 15"
Height 1.8"
Storage
Recording Formats 4K
Hard Drive Capacity 4TB
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Country of Origin CN

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
H16HRLN4TB
Manufacturer part:
H16HRLN4TB
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.

Read return eligibility and exclusions
