Honeywell HC60W35R2 60 Series 5MP Indoor WDR IR IP Dome Camera, 2.7-13.5mm Lens, Lyric White

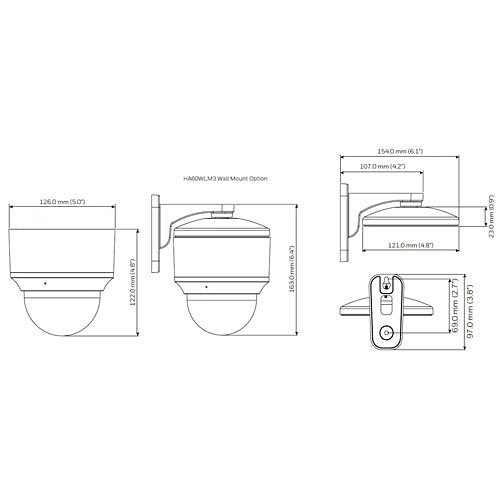

Image of HC60W35R2
Product images for Honeywell HC60W35R2 60 Series 5MP Indoor WDR IR IP Dome Camera, 2.7-13.5mm Lens, Lyric White. 2 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Deliver sharp, actionable video for security and surveillance with true 5MP resolution, improving identification and evidence capture.
  • Wide Dynamic Range up to 120 dB balances bright and dark scenes for reliable monitoring in challenging lighting conditions.
  • Up to 98 ft infrared and 0.04 lux low-light performance maintain continuous 24/7 coverage in dim environments.
  • Varifocal 2.7–13.5mm lens and ceiling/wall/flush mounting provide flexible installation and precise scene coverage for retail, campus, or commercial sites.
  • H.265 Smart Codec and SD card local storage reduce bandwidth and storage costs while enabling remote management and long-term recording.

Quick Specifications

Brand Name
Honeywell Commercial Security
Manufacturer
Honeywell International, Inc
Product Name
5MP Network TDN WDR IR Indoor Dome Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Built for reliable, compliant surveillance in enterprise and critical environments, the Honeywell Commercial Security HC60W35R2 5MP indoor dome camera delivers high-quality monitoring where detail and uptime matter. This network camera combines 5MP resolution with Wide Dynamic Range (up to 120 dB) to capture clear images across high-contrast scenes, and a 2.7–13.5mm varifocal lens for precise field-of-view adjustment. Low-light performance (0.04 lux) plus up to 30 m (98 ft) IR illumination ensures continuous coverage after dark, while H.265 Smart Codec minimizes network bandwidth and storage demands—ideal for large-scale security deployments. The IK10 impact resistance, TAA compliance, and indoor mounting versatility make the HC60W35R2 a strong choice for government, retail, utilities, campus, and commercial surveillance projects. Integrate it with your network video system for remote management, SD card local backup, and advanced monitoring features like motion detection and privacy masking. Contact your Honeywell Commercial Security distributor to specify HC60W35R2 for your next secure monitoring installation or add it to your solution design.

Features

  • Deliver sharp, actionable video for security and surveillance with true 5MP resolution, improving identification and evidence capture.
  • Wide Dynamic Range up to 120 dB balances bright and dark scenes for reliable monitoring in challenging lighting conditions.
  • Up to 98 ft infrared and 0.04 lux low-light performance maintain continuous 24/7 coverage in dim environments.
  • Varifocal 2.7–13.5mm lens and ceiling/wall/flush mounting provide flexible installation and precise scene coverage for retail, campus, or commercial sites.
  • H.265 Smart Codec and SD card local storage reduce bandwidth and storage costs while enabling remote management and long-term recording.
General Information
Brand Name Honeywell Commercial Security
Manufacturer Honeywell International, Inc
Product Name 5MP Network TDN WDR IR Indoor Dome Camera
Product Type Network Camera
Product Model HC60W35R2
Product Series 60
Manufacturer Part Number HC60W35R2
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 5x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.4
Night Vision Type Infrared
Number of IR LEDs 4
Maximum Frame Rate 60fps
Video Signal Format NTSC, PAL
Minimum Focal Length 2.7mm
Connectivity Technology Wired
Field of View (Vertical) 72°
Field of View (Horizontal) 100°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP52
Display & Graphics
Maximum Video Resolution 2560 x 1920
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 14°F (-10°C)
Exposure
Longest Shutter Speed 1/30 Second
Shortest Shutter Speed 1/32000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.7-13.5mm
Lens Included Yes
Minimum Aperture f/2.8
Maximum Focal Length 13.5mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 4.8"
Weight 1.28 lb
Durability Dust Resistant, Impact Resistant
Form Factor Dome
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 5"
Mount Type Ceiling Mount, Flush Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features 3D Digital Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Day/Night, Gain Control, Highlight Compensation (HLC), Motion Detection, Password Protection, Privacy Masking, Region of Interest, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Indoor
Country of Origin TW
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
