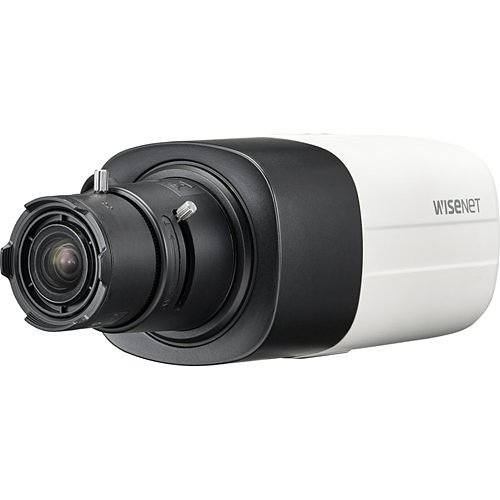

Hanwha HCD-6001 HD+ Series 2MP Analog HD Box Camera, Lens Not Included, Ivory
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Delivers clear Full HD surveillance at 1920 x 1080 @ 30fps for reliable day-to-day monitoring
- Outstanding low-light performance (0.009 lux B/W) and 120 dB WDR to capture usable detail in challenging lighting
- Multi-format analog compatibility (AHD/CVI/TVI/CVBS/HDCVI) for seamless upgrade of legacy systems
- NDAA-compliant design and robust transmission up to 500m for secure, long-distance wired deployments
- Flexible C/CS lens mount and dual power (12V DC / 24V AC) for easy customization and installation
- Plug-and-play setup with RS-485 control reduces install time and lowers total cost of ownership
Quick Specifications
- Product Model
- HCB-6001
- Brand Name
- Hanwha Vision
- Product Name
- 2MP Analog HD Box
- Product Type
- Box Camera
Frequently Bought Together
Hanwha HCD-6001 HD+ Series 2MP Analog HD Box Camera, Lens Not Included, Ivory
$137.70
8 items selected
Total: $1,032.45
Explore the details
Product information
HCB-6001
Overview
Optimize on-premise security with the Hanwha Vision HCD-6001 HD+ 2MP analog box camera — a practical, high-performance choice for retail, warehouse, and commercial monitoring. This Hanwha Vision box camera delivers Full HD 1920 x 1080 resolution at 30 fps, producing crisp, actionable video for incident review and live surveillance. Built for real-world deployments, the HCD-6001 offers exceptional low-light sensitivity (0.009 lux at F1.2 B/W) and 120 dB Wide Dynamic Range to preserve detail across bright windows and shadowed areas. Multi-format analog support (AHD, CVI, TVI, CVBS, HDCVI) simplifies upgrades from legacy systems while maintaining long cable runs up to 500 meters — ideal for large facilities. The camera supports C/CS lens mounts (lens not included), dual power options (12V DC / 24V AC), and RS-485 control for pan/tilt integrations. NDAA compliance and plug-and-play installation make it a dependable choice for security integrators and IT teams. Add a compatible C/CS lens and deploy the HCD-6001 for reliable perimeter, interior, or asset monitoring — request a quote or order today.
Features
- Delivers clear Full HD surveillance at 1920 x 1080 @ 30fps for reliable day-to-day monitoring
- Outstanding low-light performance (0.009 lux B/W) and 120 dB WDR to capture usable detail in challenging lighting
- Multi-format analog compatibility (AHD/CVI/TVI/CVBS/HDCVI) for seamless upgrade of legacy systems
- NDAA-compliant design and robust transmission up to 500m for secure, long-distance wired deployments
- Flexible C/CS lens mount and dual power (12V DC / 24V AC) for easy customization and installation
- Plug-and-play setup with RS-485 control reduces install time and lowers total cost of ownership
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 2MP Analog HD Box |
| Product Type | Box Camera |
| Product Model | HCB-6001 |
| Product Series | HD+ |
| Country of Origin | CN, KR |
| Manufacturer Part Number | HCB-6001 |
| Technical Information | |
| Aspect Ratio | 16:9 |
| Lens Mount Type | C, CS |
| Maximum Frame Rate | 30fps |
| Wide Dynamic Range | Yes |
| Connectivity Technology | Wired |
| Camera | |
| Image Sensor Type | CMOS |
| Certifications | |
| NDAA Compliant | Yes |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 90% |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | 14°F |
| Exposure | |
| Minimum Illumination | 0.0090lux |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Lens | |
| Lens Included | No |
| Network & Communication | |
| Remote Management | No |
| Physical Characteristics | |
| Color | Ivory |
| Depth | 4.90" |
| Width | 2.90" |
| Height | 2.60" |
| Weight | 0.63lb |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Length | 4.90" |
| Mount Type | Desktop Mount, Rack Mount, Wall Mount |
| Storage | |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | AHD, CVBS, CVI, HDCVI, HD-TVI, TVI |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 0.09Lux at F1.2(Color), 0.009Lux at F1.2(B/W), Day and Night(ICR), WDR(120dB), Easy installation (Plug and play), Dual power, RS-485, Full HD(1920 x 1080, 30fps) resolution, SSNR IV, Motion detection, Transmission distance max.500m |
