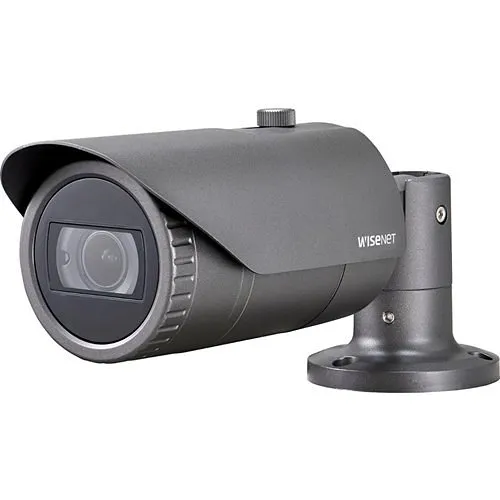

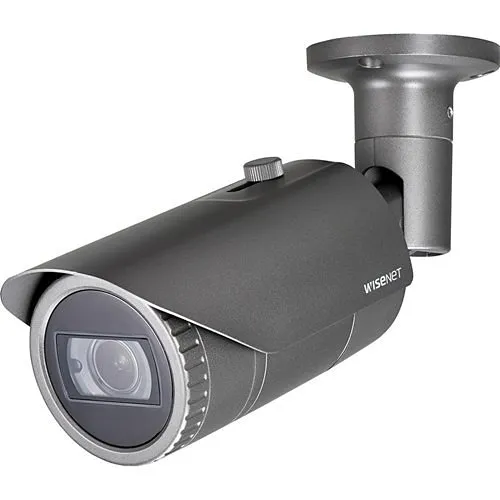

Hanwha HCO-7070RA HD+ Series 4MP Outdoor Analog HD IR Bullet Camera, 3.2-10mm Varifocal Lens, Dark Gray
Key Features
- Capture actionable detail with QHD 4MP resolution (2560 x 1440) for clearer ID and license plate recognition
- Flexible coverage with a 3.2–10mm varifocal lens to zoom and frame critical areas without changing the camera
- Reliable night monitoring with built‑in IR illumination reaching up to ~98 ft for 24/7 surveillance
- Built to withstand harsh environments — IP66 weatherproof and IK10 vandal-resistant housing for outdoor perimeter protection
- Simple deployment for existing analog systems with plug-and-play installation and dual 12VDC/24VAC power options
- NDAA-compliant design for secure, long-term commercial and government installations
Quick Specifications
- Product Model
- HCO-7070RA
- Brand Name
- Hanwha Vision
- Product Name
- 4MP Wisenet HD Bullet Camera
- Product Type
- Bullet Camera
Frequently Bought Together
Hanwha HCO-7070RA HD+ Series 4MP Outdoor Analog HD IR Bullet Camera, 3.2-10mm Varifocal Lens, Dark Gray
$183.60
7 items selected
Total: $1,756.87
Product Information Tabs
Overview
Protect your perimeter and improve incident response with the Hanwha Vision HCO-7070RA HD+ Series 4MP outdoor analog IR bullet camera. Designed for security and surveillance professionals, this bullet camera delivers QHD 2560 x 1440 resolution at 30 fps so operators and investigators get crisp, usable video for recognition and evidence. The 3.2–10mm varifocal lens gives installers the flexibility to adjust fields of view on site—ideal for parking lots, building entrances, and loading docks. Nighttime monitoring remains effective thanks to integrated IR illumination reaching approximately 98 feet, while ICR day/night switching and DWDR keep images balanced in mixed lighting. Built for demanding outdoor environments, the HCO-7070RA features IP66 weatherproofing and IK10 impact resistance, plus dual power inputs (12VDC/24VAC) for easy integration into existing analog infrastructure. NDAA compliance assures procurement confidence for public sector projects. Add reliable, high-resolution analog monitoring to your security system — order the Hanwha Vision HCO-7070RA for dependable perimeter surveillance and streamlined installation.
Features
- Capture actionable detail with QHD 4MP resolution (2560 x 1440) for clearer ID and license plate recognition
- Flexible coverage with a 3.2–10mm varifocal lens to zoom and frame critical areas without changing the camera
- Reliable night monitoring with built‑in IR illumination reaching up to ~98 ft for 24/7 surveillance
- Built to withstand harsh environments — IP66 weatherproof and IK10 vandal-resistant housing for outdoor perimeter protection
- Simple deployment for existing analog systems with plug-and-play installation and dual 12VDC/24VAC power options
- NDAA-compliant design for secure, long-term commercial and government installations
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 4MP Wisenet HD Bullet Camera |
| Product Type | Bullet Camera |
| Product Model | HCO-7070RA |
| Product Series | HD+ |
| Manufacturer Part Number | HCO-7070RA |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 3.1x |
| Field of View | Diagonal, Horizontal, Vertical |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.2mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 50.47° |
| Field of View (Horizontal) | 93.48° |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1440 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Lens | |
| Focal Length | 3.2-10mm |
| Maximum Focal Length | 10mm |
| Physical Characteristics | |
| Color | Gray |
| Width | 10.2" |
| Weight | 2.02lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant |
| Form Factor | Bullet |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Diameter | 3.07" |
| Mount Type | Box Mount, Pole Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | ,, 0.16 Lux at F1.6 (Color), 0 Lux (B/W - IR LED on), 3.2-10mm (3.1x) varifocal lens, Day and Night (ICR), DWDR, Motion detection, Easy installation (Plug and play), Dual power, QHD (2560 x 1440, 30fps) resolution, support, Transmission distance Max. 500m |
| Indoor/Outdoor | Outdoor |
| Country of Origin | VN |
| Impact Protection Rating | IK10 |
