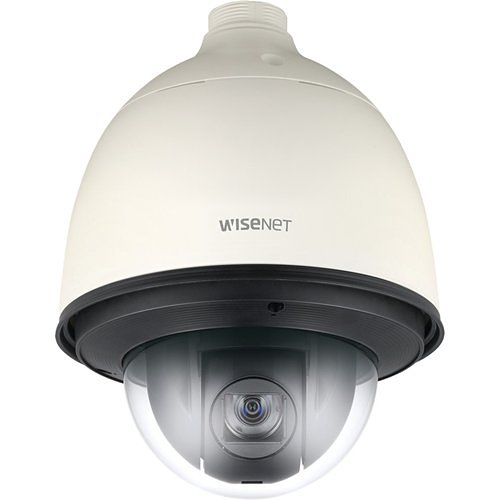

Hanwha HCP-6320HA Full-HD 1080p Analog HD Outdoor PTZ Dome Camera, 4.44-142.6mm Varifocal Lens, 32x Optical Zoom, 16x Digital Zoom, IP66, IK10, Ivory
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Long-range identification with 32x optical and 16x digital zoom for reliable license-plate and face-level detail at distance
- Cost-efficient analog upgrade: transmits Full HD video over existing coax up to 500 m to avoid re-cabling and reduce installation time
- Continuous 24/7 monitoring with Full HD 1080p at 30fps, WDR and SSNRIII for clear images in high-contrast and low-light conditions
- Durable outdoor protection (IP66) and IK10 vandal resistance to maintain operation in harsh weather and tamper-prone locations
- Flexible PTZ coverage and precision framing with a 4.44–142.6mm varifocal lens and configurable presets for perimeter, parking lot, and campus patrols
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Vision
- Product Name
- Full-HD 1080p Analog HD 32x Outdoor PTZ Dome Camera
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha HCP-6320HA Full-HD 1080p Analog HD Outdoor PTZ Dome Camera, 4.44-142.6mm Varifocal Lens, 32x Optical Zoom, 16x Digital Zoom, IP66, IK10, Ivory
$899.64
10 items selected
Total: $2,622.23
Product Information Tabs
Overview
Built for demanding outdoor surveillance, the Hanwha Vision HCP-6320HA Full-HD 1080p Analog HD PTZ dome camera delivers dependable long-range monitoring for perimeter, parking, and campus security. This PTZ security camera combines a powerful 32x optical zoom and a 4.44–142.6mm varifocal lens to identify critical details at a distance, while Full HD 1080p at 30 fps ensures smooth, actionable video. Designed as a cost-effective analog retrofit, it can transmit HD video over a single coaxial cable up to 500 m, minimizing installation time and cost when upgrading existing infrastructure. Image-enhancing features — including 120dB WDR, SSNRIII noise reduction, day/night ICR and Defog — maintain clarity in backlit scenes, low light (down to 0.03 lux) and adverse weather. Built to last outdoors, the unit meets IP66 ingress protection and IK10 impact resistance standards and is NDAA compliant for secure deployments. Ideal for mid-to-large sized sites requiring reliable, vandal-resistant monitoring, the HCP-6320HA is a practical choice for integrators and security teams—contact sales for a site quote or add to your specification for next-site installations.
Features
- Long-range identification with 32x optical and 16x digital zoom for reliable license-plate and face-level detail at distance
- Cost-efficient analog upgrade: transmits Full HD video over existing coax up to 500 m to avoid re-cabling and reduce installation time
- Continuous 24/7 monitoring with Full HD 1080p at 30fps, WDR and SSNRIII for clear images in high-contrast and low-light conditions
- Durable outdoor protection (IP66) and IK10 vandal resistance to maintain operation in harsh weather and tamper-prone locations
- Flexible PTZ coverage and precision framing with a 4.44–142.6mm varifocal lens and configurable presets for perimeter, parking lot, and campus patrols
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | Full-HD 1080p Analog HD 32x Outdoor PTZ Dome Camera |
| Product Type | Dome Camera |
| Product Model | HCP-6320HA |
| Manufacturer Part Number | HCP-6320HA |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 32x |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/4.4 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.44mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -58°F |
| Exposure | |
| Minimum Illumination | 0.03 lux |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Lens | |
| Focal Length | 4.44-142.6mm |
| Maximum Focal Length | 142.6mm |
| Physical Characteristics | |
| Color | Ivory |
| Height | 11.56" |
| Weight | 7.28lb |
| Durability | Dustproof, Impact Resistant, Waterproof, Weather Resistant |
| Form Factor | PTZ |
| Power Description | |
| Input Voltage | 24V AC |
| Product Information | |
| Diameter | 8.66" |
| Mount Type | Ceiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | /, 0.2Lux at F1.6, B/W - 0.01Lux at F1.6, Day and Night (ICR), Defog, WDR (120dB), SSNRIII, Full HD (1920 x 1080, 30fps) resolution, Powerful 32x zoom (4.44 - 142.6mm), Digital 16x, Preset 700°/sec, Azimuth, RS-485, up the coax, 24V AC |
| Indoor/Outdoor | Outdoor |
| Country of Origin | CN|KR |
| Impact Protection Rating | IK10 |
