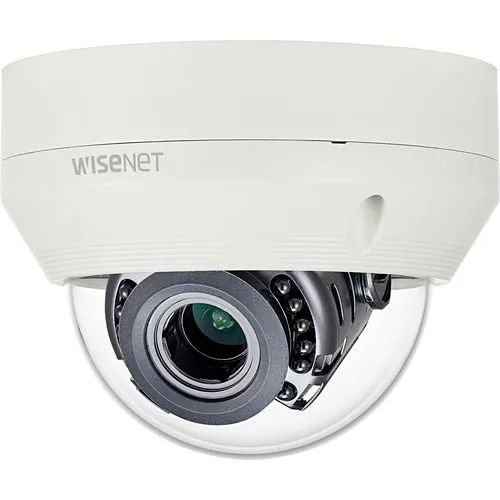

Hanwha HCV-6070R HD+ Series 2MP Analog HD IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory

SKU: HCV-6070R Hanwha Vision
Wisenet HCV-6070R 2 Megapixel Indoor/Outdoor Full HD Surveillance Camera - Color - Dome
Product images for Hanwha HCV-6070R HD+ Series 2MP Analog HD IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Enterprise-grade 24/7 monitoring with clear 2MP HD imaging for reliable identification and evidence capture
  • Flexible 3.2–10mm varifocal lens lets integrators fine-tune field-of-view to cover entryways, aisles or perimeters
  • Infrared night vision up to 98 ft ensures continuous surveillance after dark for uninterrupted security monitoring
  • Rugged IP66 weatherproof and IK10 vandal-resistant housing protects hardware in outdoor and high-risk areas
  • Plug-and-play analog compatibility (AHD/TVI/CVI/CVBS) with long transmission (up to 500m) and dual power options for faster, lower-cost installs

Quick Specifications

Product Model
HCV-6070R
Brand Name
Hanwha Vision
Product Line
Wisenet
Product Name
2MP Analog HD IR Outdoor Dome
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha HCV-6070R HD+ Series 2MP Analog HD IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory

Hanwha HCV-6070R HD+ Series 2MP Analog HD IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory

$183.60

Frequently Bought Together (5 items)

6 items selected

Total: $1,781.72

Product Information Tabs

Overview

Secure critical indoor and outdoor areas with the Hanwha Vision HCV-6070R 2MP analog HD vandal dome — designed for reliable, around-the-clock surveillance in commercial and public settings. The camera delivers crisp 2MP HD imaging and a 3.2–10mm varifocal lens so installers can tailor coverage from wide-area monitoring to detailed, evidence-grade views. Built-in IR illumination extends night vision to approximately 98 feet for dependable low-light performance and continuous monitoring.

Engineered for real-world deployments, the HCV-6070R features IP66 weatherproofing and IK10 impact resistance to withstand vandalism and harsh environments. It supports common analog formats (AHD/TVI/CVI/CVBS), long-distance transmission up to 500m, and dual power input (12V DC / 24V AC) to simplify integration with existing systems. NDAA compliance and a 3-year limited warranty provide added confidence for enterprise projects.

Ideal for retail, parking, education and perimeter security, the HCV-6070R is a cost-effective upgrade that keeps your facilities protected. Contact your reseller or add to cart to upgrade your surveillance system today.

Features

  • Enterprise-grade 24/7 monitoring with clear 2MP HD imaging for reliable identification and evidence capture
  • Flexible 3.2–10mm varifocal lens lets integrators fine-tune field-of-view to cover entryways, aisles or perimeters
  • Infrared night vision up to 98 ft ensures continuous surveillance after dark for uninterrupted security monitoring
  • Rugged IP66 weatherproof and IK10 vandal-resistant housing protects hardware in outdoor and high-risk areas
  • Plug-and-play analog compatibility (AHD/TVI/CVI/CVBS) with long transmission (up to 500m) and dual power options for faster, lower-cost installs
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Line Wisenet
Product Name 2MP Analog HD IR Outdoor Dome
Product Type Surveillance Camera
Product Model HCV-6070R
Product Series HD+
Manufacturer Part Number HCV-6070R
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 3.1x
Field of View H : 110.2 ?(Wide) ~ 32 ?(Tele) / V : 55.4 ?(Wide) ~ 18 ?(Tele) / D : 128.4 ?(Wide) ~ 36.6 ?(Tele)
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 15fps
Minimum Focal Length 3.2mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Longest Shutter Speed 1 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.2-10mm
Lens Included Yes
Maximum Focal Length 10mm
Network & Communication
Remote Management No
Physical Characteristics
Color White
Depth 5.4"
Width 5.4"
Height 4.2"
Weight 1.58lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 5.4"
Mount Type Box Mount, Ceiling Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format AHD, CVBS, CVI, TVI
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range
Indoor/Outdoor Indoor, Outdoor
Impact Protection Rating IK10
