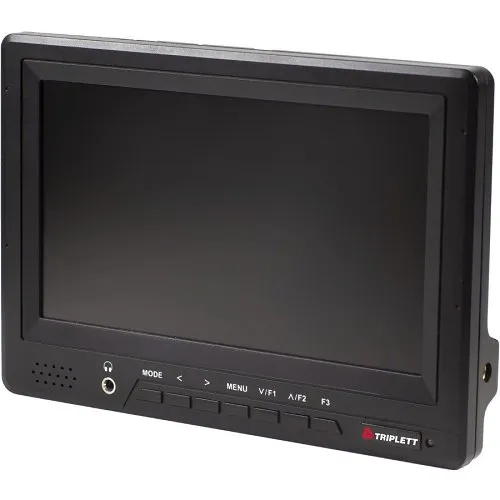

Triplett HDCM-4K Portable 7" 4K 1080p HD TFT LCD Security Camera Test Monitor

SKU: HDCM-4K Triplett
Image of IU-HDCM4K
Product images for Triplett HDCM-4K Portable 7" 4K 1080p HD TFT LCD Security Camera Test Monitor. 4 image(s) available. Click on image to view full size.

Key Features

  • Speed up camera installs with a portable 7" Full HD display that shows critical detail for precise focus and alignment

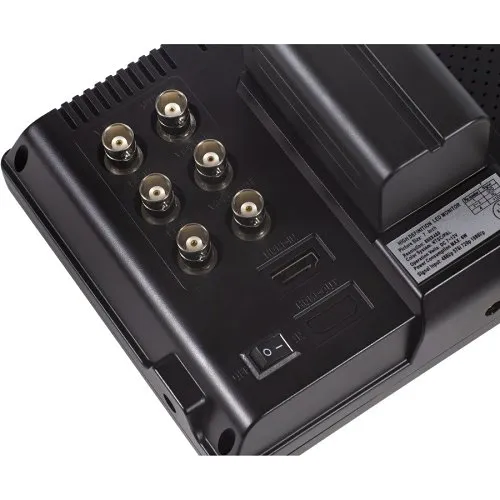

  • Use HDMI, composite BNC and component inputs to test NVRs, DVRs, CCTV cameras and video sources without extra adapters
  • Battery-backed portability and AC power let you validate systems onsite or in the rack without interrupting operations
  • Lightweight, compact design with desk, wall or rack mounting keeps the monitor where you need it for installation and troubleshooting
  • Built-in speaker and bright 450 nit LCD deliver clear video and audio verification even in well-lit equipment rooms

Quick Specifications

Product Model
HDCM-4K
Brand Name
Triplett
Product Name
HDCM-4K 7" Ultra-Compact HD 4K Security Test Monitor
Product Type
LCD Monitor
View Full Technical Specifications

Product Information Tabs

Overview

Get accurate, on-the-spot verification for surveillance installs with the Triplett HDCM-4K 7" security test monitor. Designed for security professionals and integrators, this compact video surveillance monitor delivers a crisp 1920 x 1080 Full HD image on a daylight-visible 7" TFT LCD so you can pinpoint focus, adjust angles and confirm coverage quickly. The HDCM-4K accepts HDMI, composite BNC and component inputs, making it compatible with NVRs, DVRs CCTV cameras, DSLR feeds and cable video sources—eliminating the need for multiple adapters. Use AC power for permanent bench setups or swap the externally mounted rechargeable battery for portable testing and field commissioning. At roughly 16 oz and with rack/desk/wall mounting options, it fits in toolbags or server racks for easy access during maintenance and troubleshooting. Backed by Triplett quality and a 1-year warranty, this monitor streamlines surveillance setup and monitoring tasks. Ideal for installers, IT teams and security operators—order the HDCM-4K to simplify camera setup, system testing and onsite monitoring today.

Features

  • Speed up camera installs with a portable 7" Full HD display that shows critical detail for precise focus and alignment
  • Use HDMI, composite BNC and component inputs to test NVRs, DVRs, CCTV cameras and video sources without extra adapters
  • Battery-backed portability and AC power let you validate systems onsite or in the rack without interrupting operations
  • Lightweight, compact design with desk, wall or rack mounting keeps the monitor where you need it for installation and troubleshooting
  • Built-in speaker and bright 450 nit LCD deliver clear video and audio verification even in well-lit equipment rooms
General Information
Brand Name Triplett
Manufacturer Jewell Instruments
Product Name HDCM-4K 7" Ultra-Compact HD 4K Security Test Monitor
Product Type LCD Monitor
Product Model HDCM-4K
Manufacturer Part Number HDCM-4K
Technical Information
Panel Technology TFT
Viewable Screen Size 7"
Audio
Speakers Yes
Number of Speakers 1
Display & Graphics
Screen Size 7"
Number of Screens 1
Backlight Technology LED
Energy & Performance
Operating Power Consumption 6W
Aspect Ratio 16:9
Interfaces/Ports
HDMI Yes
Number of HDMI Inputs 1
Physical Characteristics
Depth 1.2"
Width 7.4"
Height 5.1"
Weight 15.87oz
Product Information
Mount Type Desktop Mount, Rack Mount, Wall Mount
Display Screen Type LCD
Video
Graphics Modes Full HD
Brightness (Nit) 450
Maximum Resolution 1920 x 1080
Native Contrast Ratio 20.834027777777777
Warranty
Limited Warranty 1-Year
Miscellaneous
Features Compact & lightweight
Country of Origin CN
