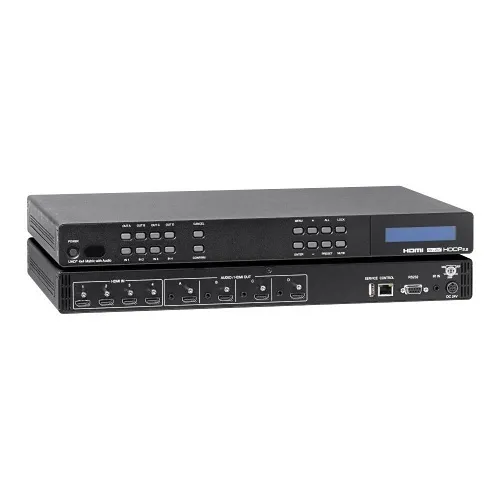

Kanex HDMX44A-18G 4x4 HDMI 2.0 Matrix Switcher, 4K/60Hz, HDR, Dolby Vision, Audio Outputs
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Simplify multi-source AV routing: route any of 4 HDMI sources to any of 4 displays for flexible AV, security, or surveillance setups
- Preserve image quality: full HDMI 2.0 support with 18 Gbps per port and 4K@60Hz (YUV 4:4:4) ensures crisp video and HDR/Dolby Vision pass-through
- Integrated audio flexibility: 2-channel analog audio outputs on each output allow local audio monitoring or integration with PA systems
- Centralized control and automation: front-panel, IR, RS-232 and web GUI over Ethernet enable remote management and easy integration with control systems
- Robust EDID and signal management: four user-created EDID slots plus EDID bypass reduce handshake issues across mixed-display environments
- Rack-friendly metal chassis with low power draw and a 3-year limited warranty for reliable 24/7 operation
Quick Specifications
- Product Model
- HDMX44A-18G
- Brand Name
- Kanex
- Manufacturer Part Number
- HDMX44A-18G
Explore the details
Product information
HDMX44A-18G
Overview
Deliver dependable, professional AV switching for boardrooms, control rooms, and security deployments with the Kanex HDMX44A-18G 4x4 HDMI Matrix Switcher. This HDMI matrix switcher streamlines distribution of up to four 4K@60Hz sources to four displays while preserving HDR and Dolby Vision content — ideal for surveillance monitoring, digital signage, and conferencing. Each HDMI port provides full 18 Gbps bandwidth to maintain color fidelity and low-latency video across critical monitoring feeds. Built-in 2-channel analog audio outputs per output let you pull local audio for speaker zones or recording, and powerful EDID management prevents display handshakes from disrupting live security streams. Control is simple: use front-panel buttons, IR, RS-232 or the web-based GUI over Ethernet to integrate with third-party control systems and automate routing across AV and security networks. Housed in a rugged metal chassis with a 3-year limited warranty, this unit is designed for continuous operation in professional environments. Equip your AV or surveillance system with reliable, high-performance switching — contact us to specify the HDMX44A-18G for your next monitoring or security installation.
Features
- Simplify multi-source AV routing: route any of 4 HDMI sources to any of 4 displays for flexible AV, security, or surveillance setups
- Preserve image quality: full HDMI 2.0 support with 18 Gbps per port and 4K@60Hz (YUV 4:4:4) ensures crisp video and HDR/Dolby Vision pass-through
- Integrated audio flexibility: 2-channel analog audio outputs on each output allow local audio monitoring or integration with PA systems
- Centralized control and automation: front-panel, IR, RS-232 and web GUI over Ethernet enable remote management and easy integration with control systems
- Robust EDID and signal management: four user-created EDID slots plus EDID bypass reduce handshake issues across mixed-display environments
- Rack-friendly metal chassis with low power draw and a 3-year limited warranty for reliable 24/7 operation
| General Information | |
|---|---|
| Brand Name | Kanex |
| Manufacturer Part Number | HDMX44A-18G |
| Technical Information | |
| Power Consumption | 21.0000W |
| Physical Characteristics | |
| Depth | 6.60" |
| Width | 17.00" |
| Height | 1.80" |
| Material | Metal |
| Power Description | |
| Frequency | 50kHz |
| Input Voltage | 24V DC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 2 Channel analog audio outputs on each HDMI output channel, 4K and UHDTV resolutions up to 3840 x 2160 at 60 Hz (YUV 4:4:4, 8-bit), Cross-switch 4 HDMI devices to 4 HDMI displays in 4K at 60 Hz, Distribute 4Kx2K at 60 Hz signal up to 5m over HDMI (max.), HD bit stream audio formats over HDMI, Supports 48-bit Deep Color up to 1080p/60, Supports Dolby Vision and HDR pass-thru, Supports LPCM 7.1 pass-thru bit stream |
