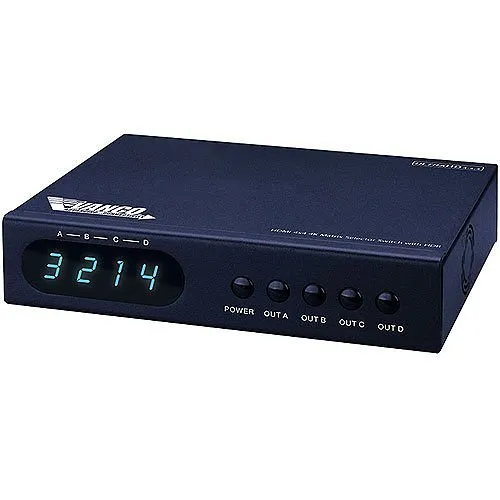

Vanco HDMX4K44 4K HMDI 4x4 Matrix Selector Switch with HDR, 60Hz, HDCP 2.2 Compliant
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features

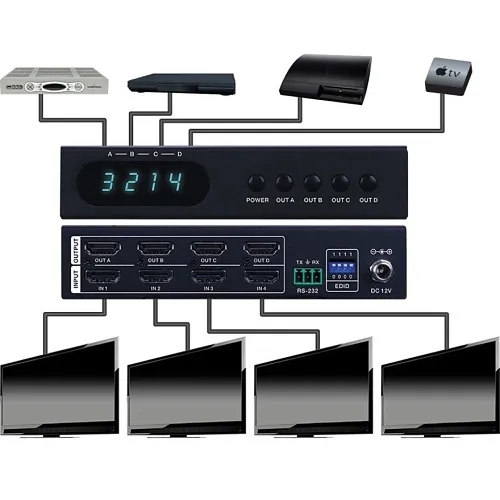

- Route any of four HDMI sources to any of four displays simultaneously for flexible room-to-room or zone distribution
- Maintains pristine 4K@60Hz with 4:4:4 chroma and HDR (HDR10/Dolby Vision) so video and surveillance feeds remain detailed and color-accurate
- HDCP 2.2 compliance and EDID management reduce handshake issues and ensure compatibility with modern displays and security recorders
- Multiple control options (RS-232, IR remote, manual) and compact footprint simplify integration with AV control systems, monitoring stations, and pro-security setups
- Supports immersive audio formats (Dolby Atmos, DTS, PCM) for full audio/video system fidelity in boardrooms, digital signage, and surveillance playback
Quick Specifications
- Product Model
- HDMX4K44
- Brand Name
- Vanco
- Product Name
- HDMI 4×4 4K Matrix Selector Switch with HDR
- Product Type
- Audio/Video Switchbox
Explore the details
Product information
HDMX4K44
Overview
Upgrade multi-display AV and security deployments with the Vanco HDMX4K44 HDMI 4x4 matrix switch. This compact HDMI matrix switch from Vanco enables four HDMI sources to feed four displays independently, making it ideal for conference rooms, digital signage, command centers, and surveillance monitoring. Delivering true 4K@60Hz with 4:4:4 chroma and support for HDR10 and Dolby Vision, the HDMX4K44 preserves fine detail and accurate color across CCTV, HDMI media players, and presentation sources. HDCP 2.2 compliance plus EDID adjustment via RS-232 or manual settings minimizes compatibility headaches with modern displays and recorders. Flexible control — RS-232 for system integrators, IR remote for quick local operation, or front-panel switching — lets integrators and security teams tailor workflows to their environment. It also supports high-quality audio formats like Dolby Atmos and DTS for full AV fidelity. Rugged, reliable, and easy to integrate, the Vanco HDMX4K44 is built for pro AV and security installations that demand dependable multi-display switching. Add it to your surveillance, monitoring, or presentation systems to simplify signal routing and improve visual clarity — contact us to configure for your site.
Features
- Route any of four HDMI sources to any of four displays simultaneously for flexible room-to-room or zone distribution
- Maintains pristine 4K@60Hz with 4:4:4 chroma and HDR (HDR10/Dolby Vision) so video and surveillance feeds remain detailed and color-accurate
- HDCP 2.2 compliance and EDID management reduce handshake issues and ensure compatibility with modern displays and security recorders
- Multiple control options (RS-232, IR remote, manual) and compact footprint simplify integration with AV control systems, monitoring stations, and pro-security setups
- Supports immersive audio formats (Dolby Atmos, DTS, PCM) for full audio/video system fidelity in boardrooms, digital signage, and surveillance playback
| General Information | |
|---|---|
| Brand Name | Vanco |
| Manufacturer | Vanco International, Inc |
| Product Name | HDMI 4×4 4K Matrix Selector Switch with HDR |
| Product Type | Audio/Video Switchbox |
| Product Model | HDMX4K44 |
| Manufacturer Part Number | HDMX4K44 |
| Technical Information | |
| Device Supported | Display |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 4 |
| Interfaces/Ports | |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Physical Characteristics | |
| Depth | 4.40" |
| Width | 5.90" |
| Height | 1.30" |
| Product Information | |
| Number of Displays Supported | 4 |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | EVMX4K44 |
| Video | |
| Graphics Mode | 4K UHD |
